Cembre B51 - Operating Instructions; Tool Preparation and Handling; Die Advancement Procedure

ENGLISH
The part reference “B51 ; B51A” includes the following:
– Basic tool complete with battery and shoulder strap.
– Spare battery.
– Battery charger.
– Plastic carrying case "VAL P5".

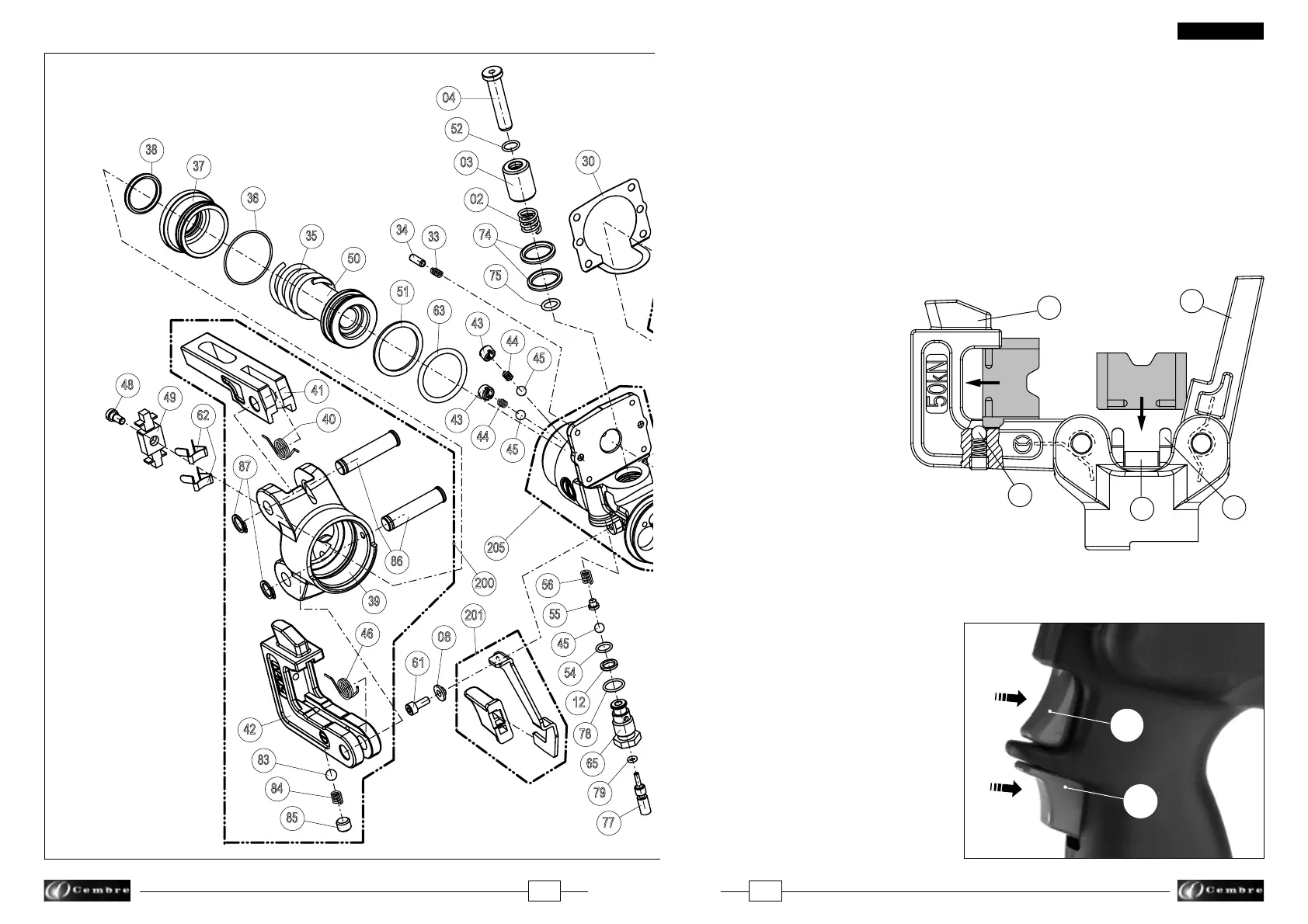

2. INSTRUCTIONS FOR USE (Ref. to Figs. 1, 2, 3 and 4)
2.1) Preparation (Ref. to Figs. 1, 2)
The tool can be easily carried using either the handle or the shoulder strap (T) attached
to the rings (R).
With the tool in the rest position
proceed as follows:
– Select the appropriate die set
for the connector.
– Open the latch (41) and
release the upper die holder
(42).
– Insert one die into the upper
die holder (42) and one
die into the lower die
support (49).
– Close the latch (41).
– Insert the conductor in the connector.
– Position the connector between the
dies and ensure the correct location of
the crimp.
Ensure that the latch and the upper die holder are fully secured, otherwise damage
may occur during tool operation.
2.2) Die advancement
(Ref. to Fig. 3)
Press operating button (10) to acti-
vate the motor-pump and advance
the lower die. To halt the advance-
ment, release operating button (10)
and the motor will cut out.
42
83
62
49
41
FIG. 2
31 4
10
201
FIG. 3
200
39
40
41
42
46
83
84
85
86
87
02
03
04
08
12
30
33
34
35
36
37
38
43
43
44
44
45
45
45
48
49
50
51
52
54
55
56
61
62
63
65
74
75
77
78
79
205
201
TABLE 2 - TABLEAU 2 - TABELLE 2
- TABLA 2 - TAVOLA 2
