Specifications
Electrical Rating 120 VAC / 60 Hz / 10 A (40A for boost)
Charge Settings
6V 12V
2 A
40 A Boost
2 A
10A
40 A Boost
Starter Settings
12V, 200A
5 second maximum with 180 second minimum rest
Battery Cables
6'
Red = Positive
Black = Negative
Power Cord 6'
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY: Unplug the charger, disconnect any battery,
and allow charger to cool completely before assembling or making any adjustments to the charger.
Note: For additional information regarding the parts listed in the
following pages, refer to Parts List and Diagram on page 14.

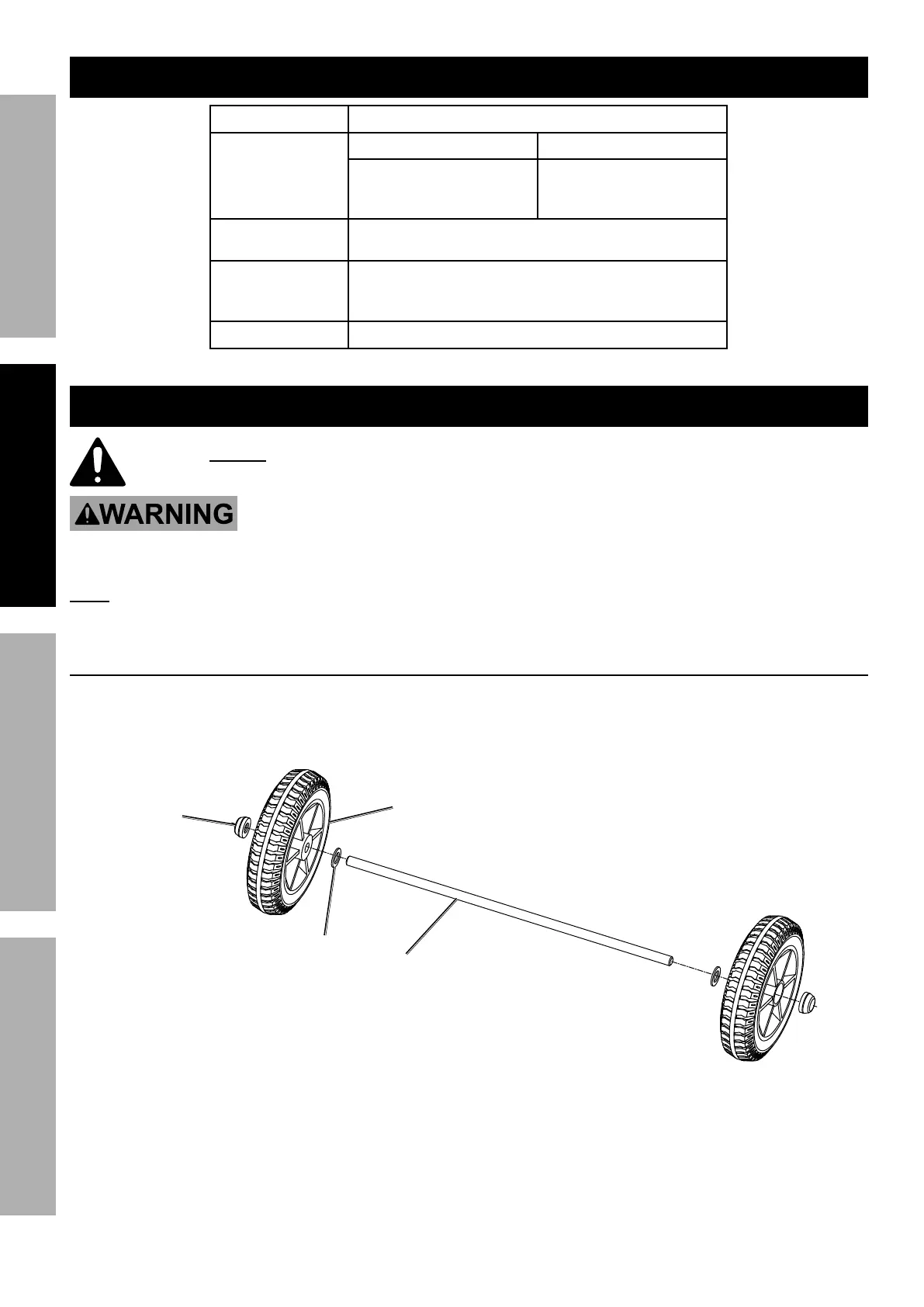

Attach Wheels to Axle
1. Slide Wheel Bearing (37) onto Axle (35).
2. Slide Wheel (17) onto Axle.
3. Attach Hubcap (17) to Axle by tapping
gently with rubber mallet (not included).
4. Repeat on other side.
Hubcap
Axle
Wheel
Bearing
Wheel
To Next Page
