Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Assemble Charger/Starter according to Assembly Instructions before use.
DO NOT PLUG IN CHARGER/STARTER UNTIL DIRECTED TO DO SO.

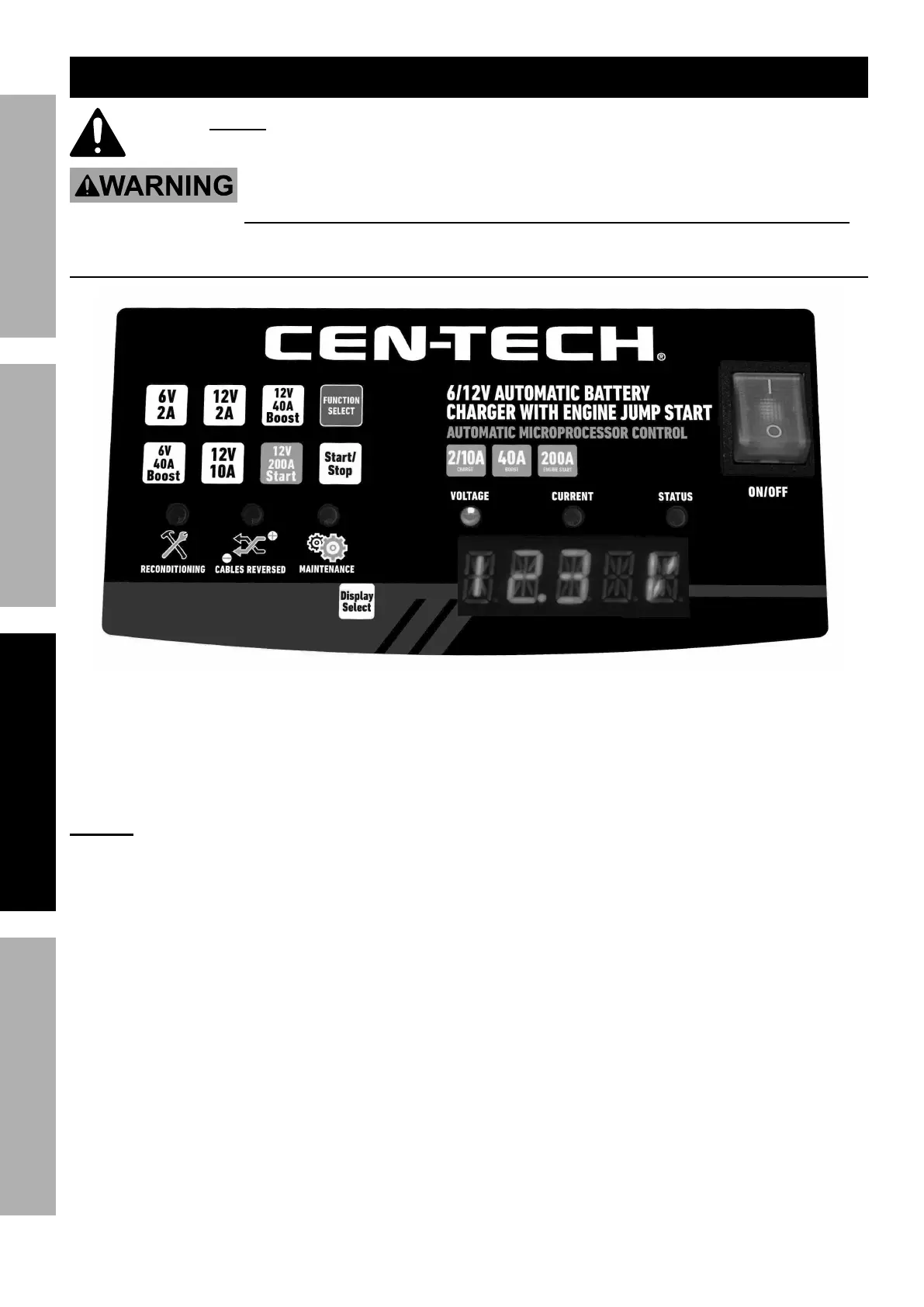

Controls
1. Function Select Button: Press to
cycle through below functions:
a. 6V/12V 2A - Slow Charge.
b. 12V 10A - Fast Charge.
c. 6V/12V 40A Boost - Quick charge.
NOTICE: Read the vehicle operator’s
manual before using engine start.
d. 12V 200A Engine Start.
2. Start/Stop - Start or stop function.
3. LED Indicators:
a. RECONDITIONING: Comes on when
Battery is deeply discharged.
b. CABLES REVERSED: Comes on
when battery Cables are reversed.
c. MAINTENANCE: Comes on when
battery is fully charged.
d. VOLTAGE: Comes on when
voltage is being displayed.
e. CURRENT: Comes on when
amperage is being displayed.
f. STATUS: Comes on when status is
being displayed. Example: CHARG will
display while battery is charging.
4. Display Select: Cycles through Voltage,
Current and Status displays.
5. Digital Display:
a. XX.XX V: Voltage.
b. XX.XX A: Amperage.
c. WRONG: Cable disconnected, short
circuit, low or high voltage.
d. REVER: Cables reversed.
e. CHARG: Charging.
f. FULL: Charged.
g. XX S: Cooling countdown.
h. DESUL: Desulfating.
i. RECON: Reconditioning.
j. BAD: Bad battery.
