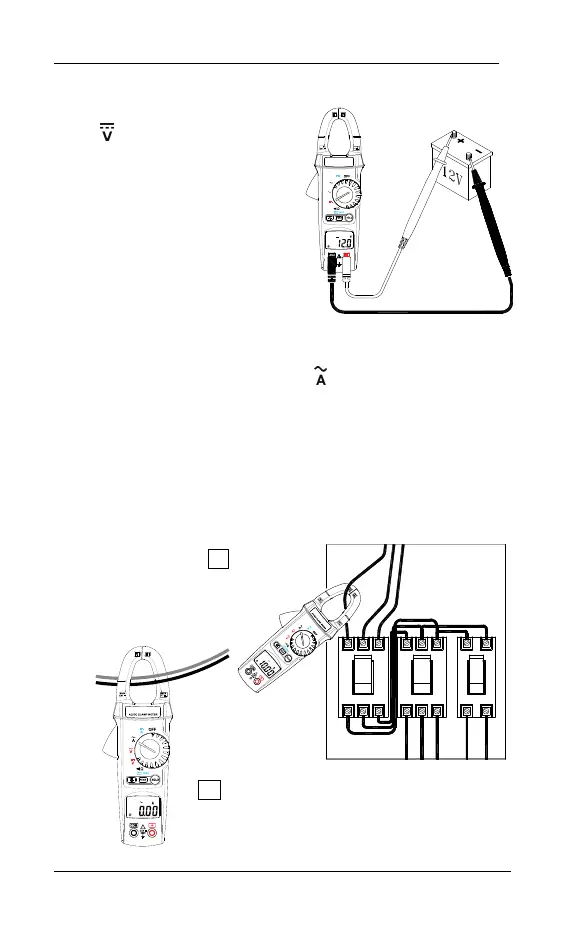

6-2 DC Voltage Measurement：
Switch the main function selector
to
range.
Connect red test lead to “+＂
terminal and black one to the
“COM＂terminal.
Measure the voltage by touch the
test lead tips to the test circuit
where the value of voltage is
needed.
Read the result from the LCD
panel.
6-3 AC Current Measurement：
Switch the main function selector to
range.
Open the clamp by pressing the jaw-opening handle and insert the
cable to be measured into the jaw.
Close the clamp and get the reading from the LCD panel.
Note：
Before this measurement, disconnect the test lead with the meter
for safety.
In some occasion that the reading is hard to read, push the HOLD
button and read the result later.
