Center 265 - DC V Measurement; Continuity Test With Buzzer

Clamp Meter
10

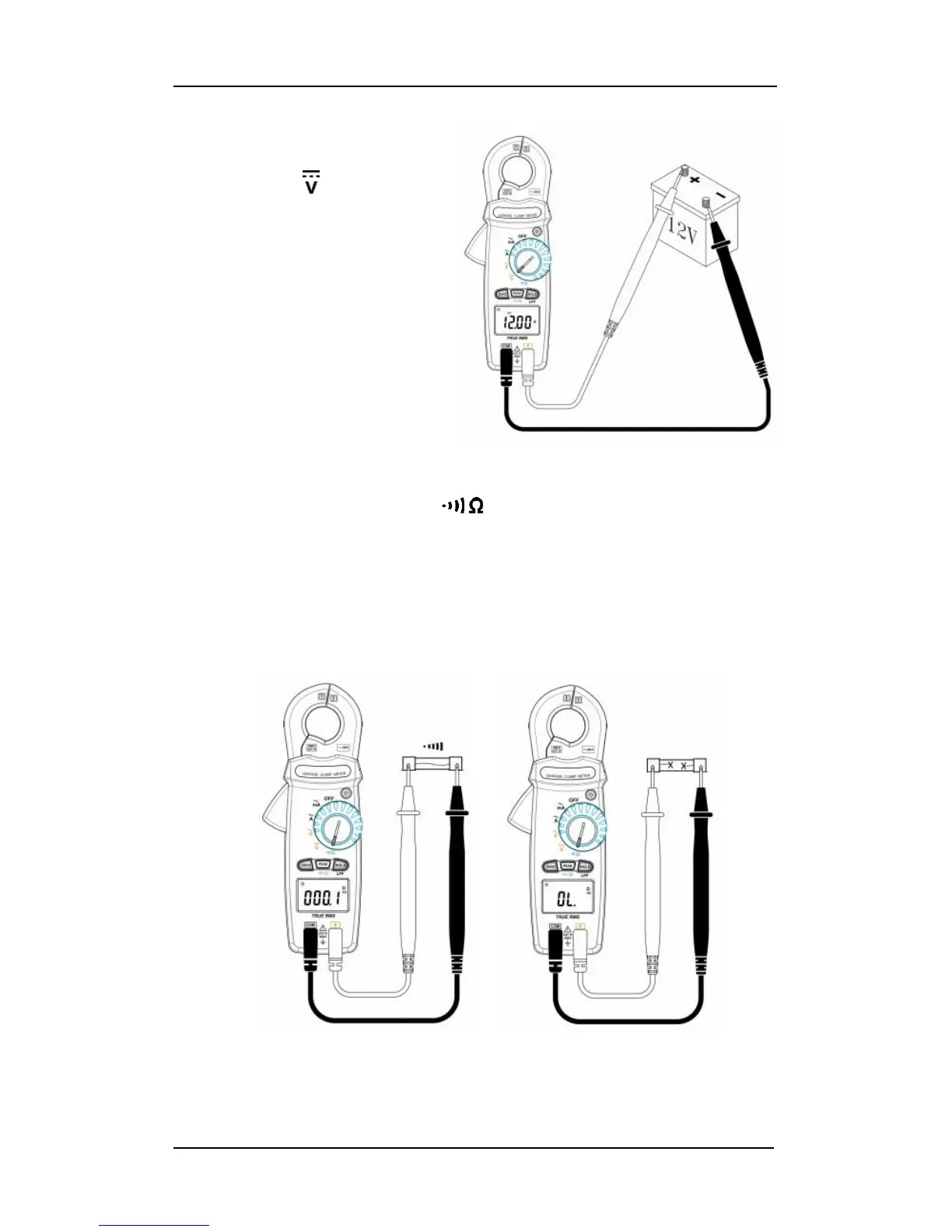

6-3 DC V Measurement：
Switch the main function
selector to range.
Connect the red test lead to
the“ +” terminal and black
lead to the “COM”terminal.
Measure the voltage by
touching the test lead tips to
the test circuit where the
value of voltage is needed.
Read the result from the LCD.
6-4 Continuity Test With Buzzer：
Switch the main function to range.
Connect the red test lead to the “+”terminal and the black lead to
the “COM”terminal.
Connect tip of the test leads to the points between which continuity is
to be measured.
If the resistance is under 45Ω, the beeper will sound continuously.
Short circuit Open circuit
