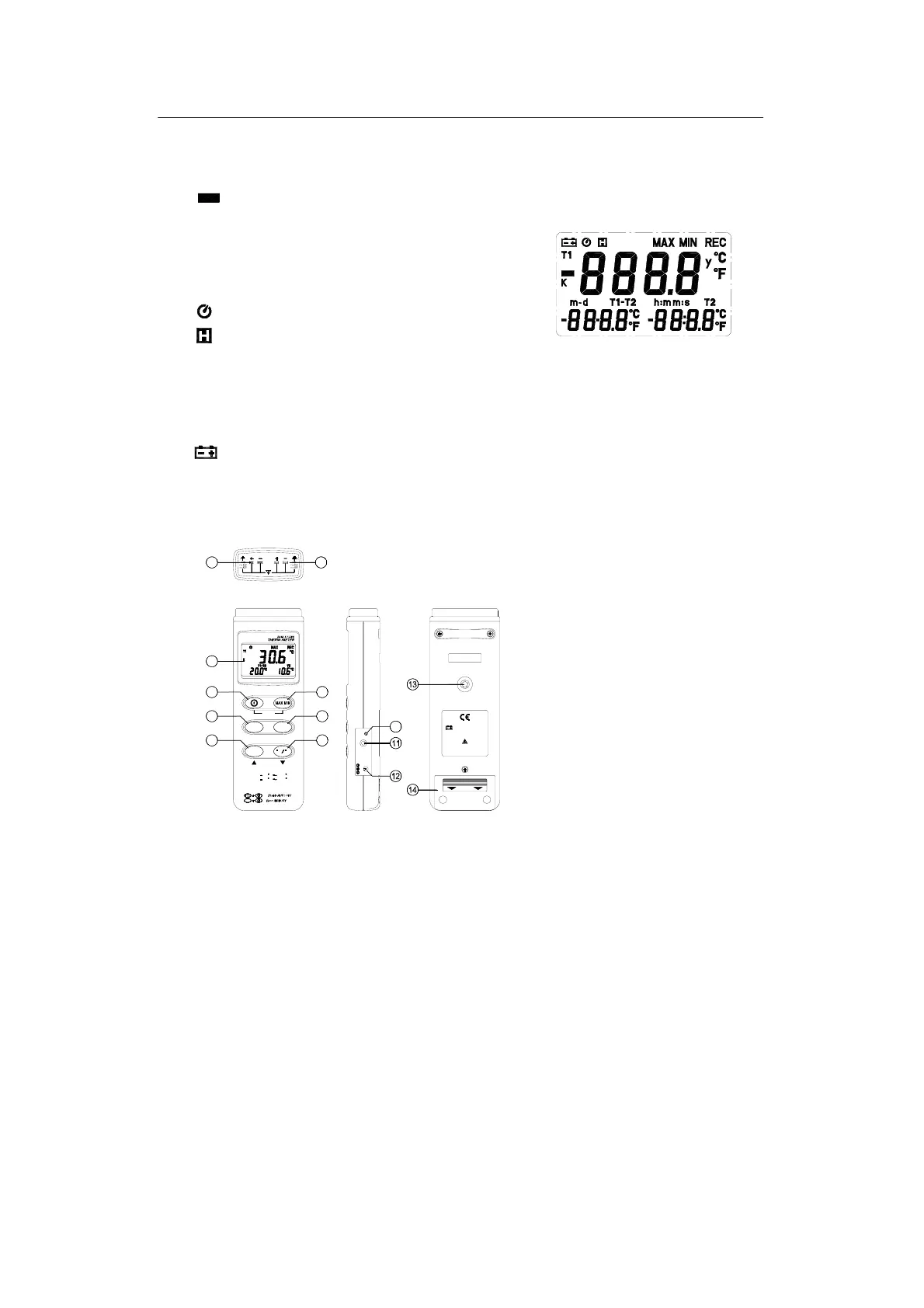

III. Symbol Definition and Button Location:
: This indicates that the minus temperature is sensed.
℃℉
: Centigrade and Fahrenheit indication.
K
: Thermocouple Type Indication
MAX
: The Maximum value is now being displayed
MIN
: The Minimum value is now being displayed
: This indicates auto power off is enabled.
: This indicates that the display data is being held.
m-d
: it indicates the value below is month and day
h:m
: it indicates the value below is hour and minute
m:s
: it indicates the value below is minute and second
y
: it indicates year is displayed in the main window.
: The Battery is not sufficient for proper operation.
REC
: This indicates that the tester is recording. If it blinks, it indicates the memory is full.
Button Location:
○
1
K type temperature sensor T1 input
connector
○
2
K type temperature sensor T2 input
LCD display
○
3
ON/OFF button
○
4
Time display button
○
5
Record button
○
6
MAX MIN function control button
○
7
HOLD button
○
8
°C, °F control button
○
9
Offset calibration screw
○
10
Digital output connector
○
11
AC power adapter connector
○
12
Tripod connector
○
13
Battery cabinet cover
