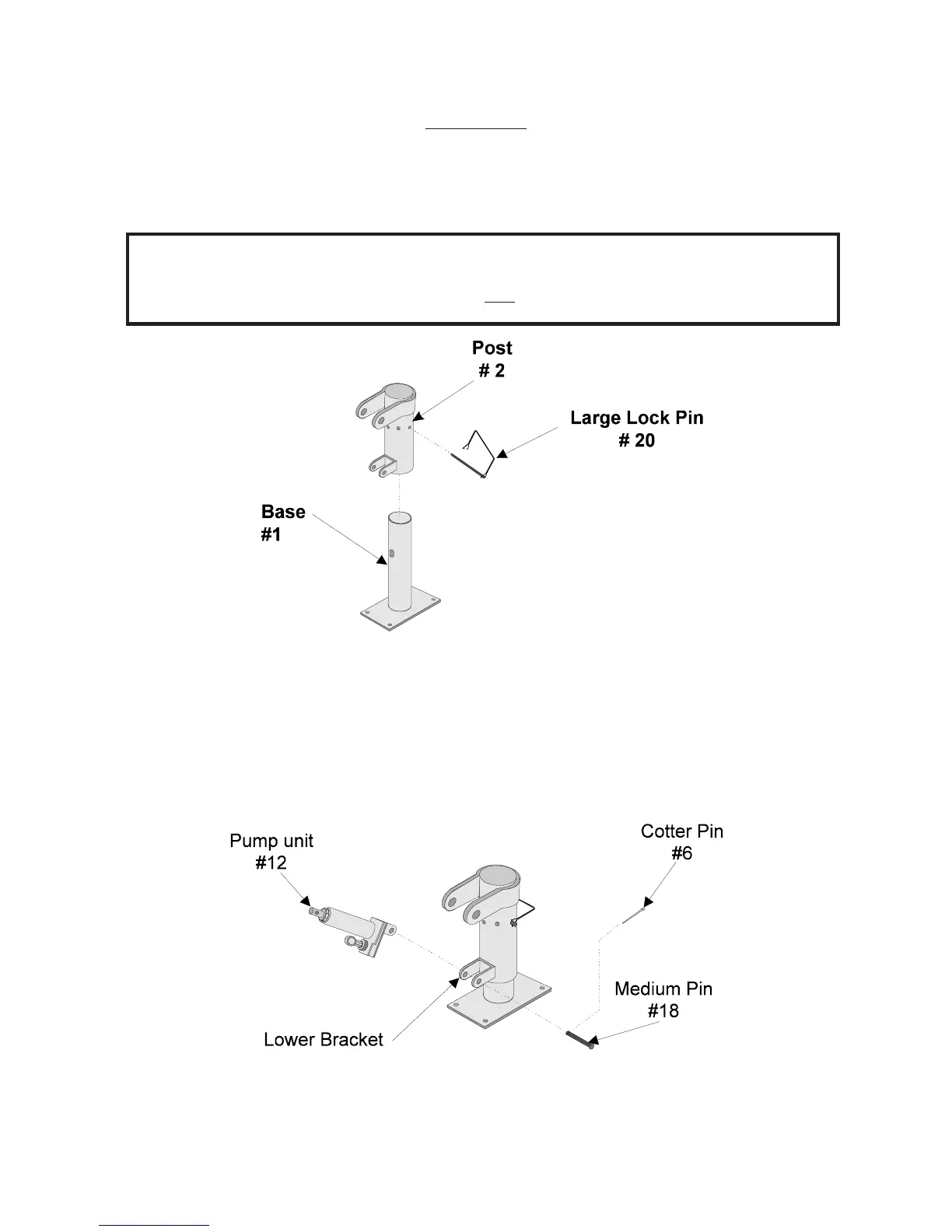

Figure 1 — Post to Base Assembly
Step 2: Attach the PUMP UNIT (#12) to the lower POST bracket using the MEDIUM PIN (#18)
as shown in Figure 2. Secure the MEDIUM PIN (#18) with a COTTER PIN (#6).
Figure 2 — Attaching the Pump Unit
ASSEMBLY
Step 1: Slide the POST (#2) onto the BASE (#1) and attach using the LARGE LOCK PIN
(#20) as shown in Figure 1.
Pg. 4 -- SKU 1647 REV 05/01
Note:
If the bed and side panels of the truck will not get in the way during assembly, attach
the base to the truck’s frame first as described in step 8.
