SKU 2792 For technical questions, please call 1-800-444-3353. Page 4
Do not drop a load onto the Lift, may 12.
create for a brief instant, an excess
load, which may result in damage to
the product and/or personal injury.
Do not use for aircraft purposes.13.
The warnings, cautions, and in-14.
structions discussed in this in-
struction manual cannot cover all
possible conditions and situations
that may occur. It must be under-
stood by the operator that com-
mon sense and caution are factors
which cannot be built into this
product, but must be supplied by
the operator.
UNPACKING
When unpacking, make sure the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.
ASSEMBLY
See the Assembly Drawing on page 9.
Mounting Lifting Frame
Position the 1. Stop Bar (9) and Lift-
ing Frame (11) as shown in the
Assembly Drawing, so that the holes
on the arms of both the Stop Bar (9)
and Lifting Frame (11) line up with
the holes on the welded tabs on the
Rear Lift Arms (5). Place Bolts (7)
through the tabs, Lifting Frame (11),
Bushings (30), and Stop Bar (9).
Note: The Bushings t around the
Bolts and inside the Stop Bar.
-See the inset in the parts diagram
on page 9.
Secure the Bolts with 2. Washers (8)
and Nuts (10).

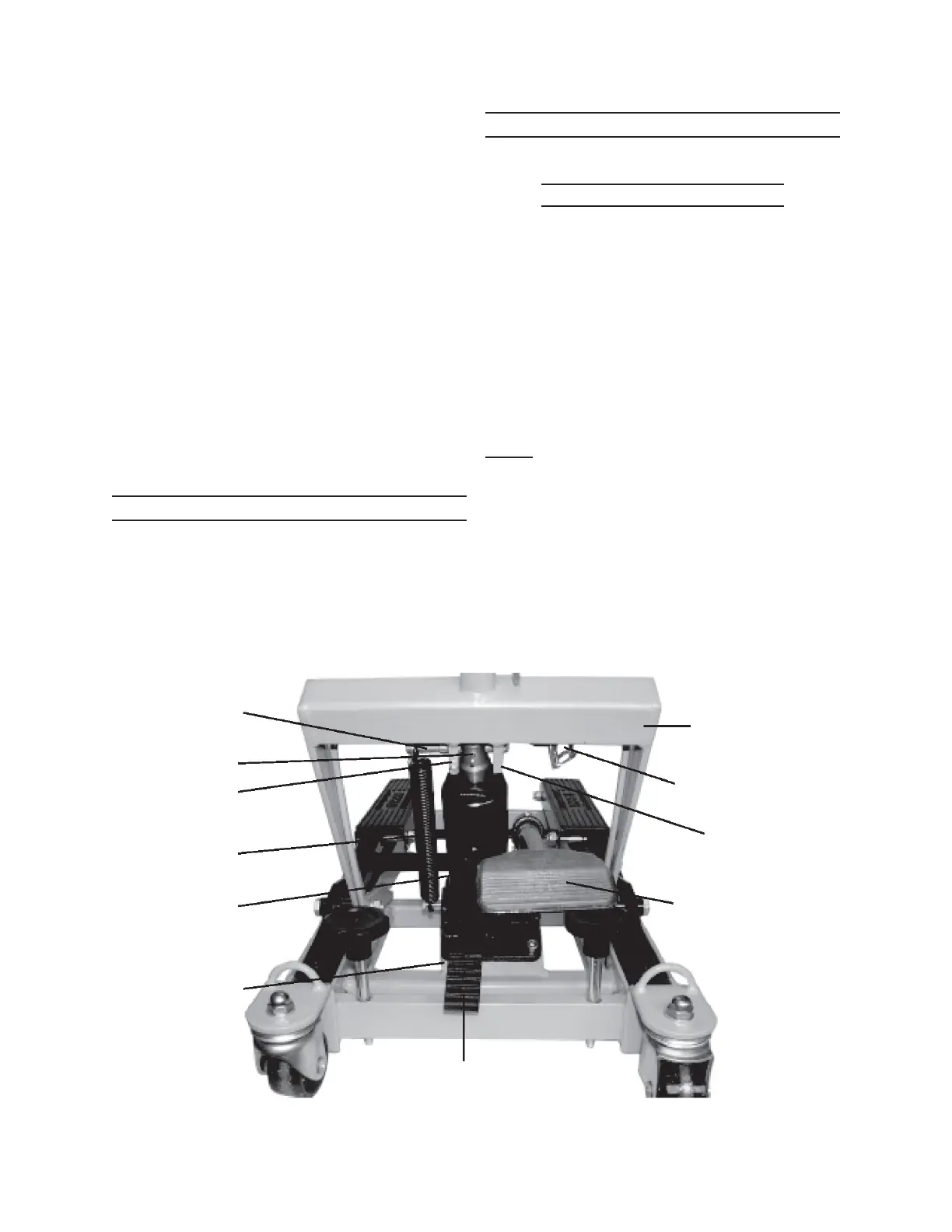

Jack Mounting Plate
Ram
Release Pedal (18)
Foot Pedal (17)
Spring (21)
FIGURE 1
Chain
Jack (16)
Lifting
Frame (11)
Rev 04c, 10c
Pin (37)
Bolt (36)
Bracket
To Next Page
