Page 18SKU 45656 For technical questions, please call 1-800-444-3353.

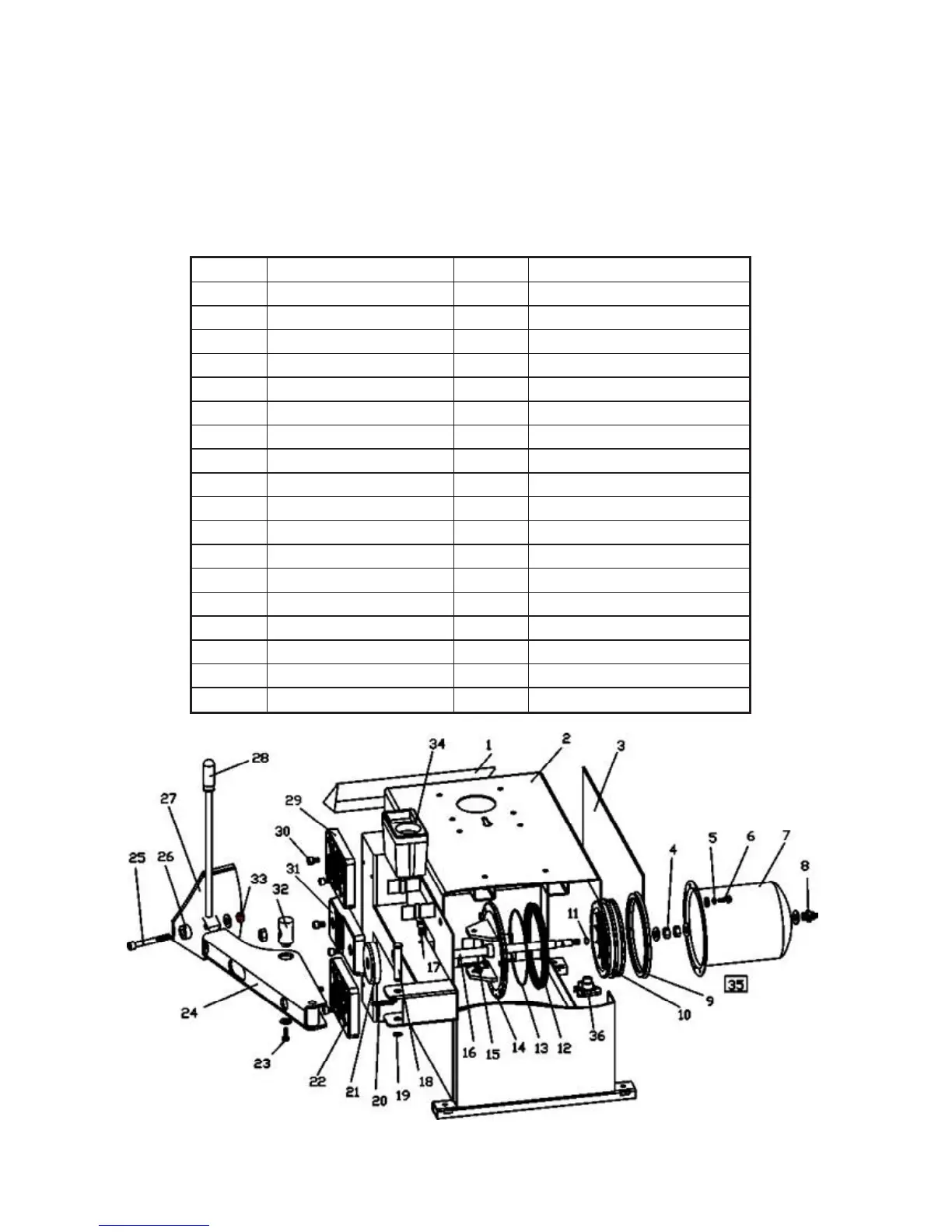

PARTS LIST/ASSEMBLY DIAGRAM B
NOTE: When referring to the parts listed/shown below, include the letter “B” after
the part numbers. Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Part # Description Part # Description
1B Front panel 19B Seeger ring
2B Body 20B Spring
3B Side cover 21B Rubber ring
4B Nut 22B Rubber support
5B Washer 23B Screw
6B Screw 24B Arm
7B Cylinder body 25B Screw
8B Fitting 26B Washer
9B V-seal 27B Shovel
10B Piston 28B Hand grid
11B Washer 29B Rubber support
12B V-seal 30B Screw
13B O-ring 31B Rubber support
14B Lid 32B Rotating pin
15B Bead-breaker rod 33B Nut
16B L-union 1/4” 34B Oil box
17B Screw 35B Complete Cylinder
18B Pin 36B Safety valve
To Next Page
