Page 9F o r t e c h n i c a l q u e s t i o n s , p l e a s e c a l l 1 - 8 8 8 - 8 6 6 - 5 7 9 7 .Item 60637

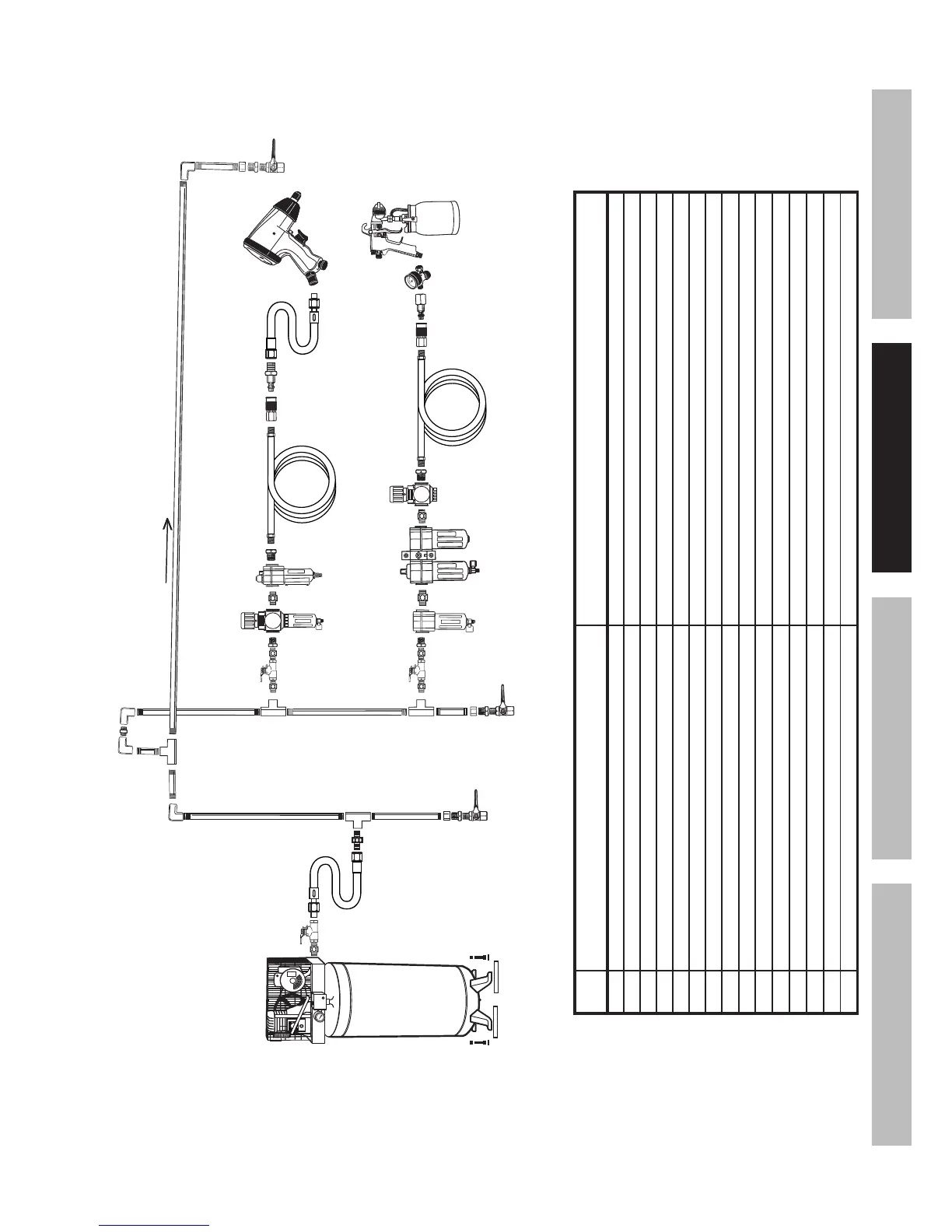

F i g u r e B : S t a t i o n a r y Ai r S u p p l y S e t u p
N
L
L O
M
C
C
Non-lubricated
A
C
D
D e s c r i p t i o n F u n c t i o n
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool
S AF ET YO PERAT IO NM AINT ENANCE S ET UP
