SKU 65903 For technical questions, please call 1-800-444-3353. Page 14

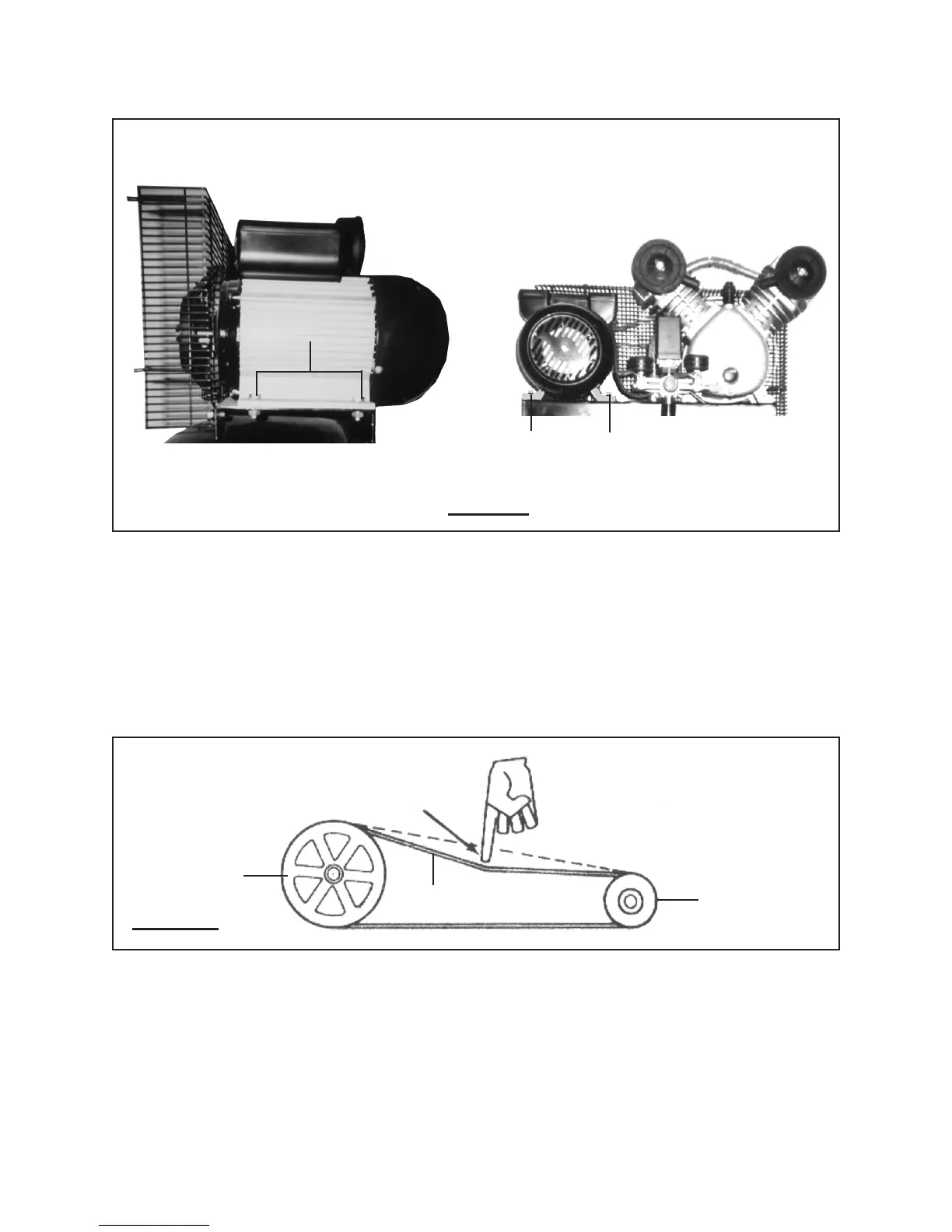

SIDE VIEW END VIEW
FIGURE I
SCREW
(30)
SCREW
(30)
SCREW
(30)
7. Loosen four Screws (30) which hold Motor (14) in place. Then, slide Motor toward
Large Belt Wheel to loosen tension on V-Belt (27).
(See Figures H and I.)
Remove loose V-Belt (27) from Large Belt Wheel and Motor Pulley (14). 8.
(See Figure H.)
Install a new V-Belt (27) on Large Belt Wheel and Motor Pulley (14). 9.
(See Figure H.)
MOTOR PULLEY
(14)
LARGE
BELT WHEEL
3/4”
V-BELT
(27)
FIGURE J
10. Slide the Motor (14) back toward its original position to tighten the tension on the
V-Belt (27). NOTE: To determine the proper tension on the V-Belt, with your index
nger press down on the V-Belt. The V-Belt should deect downward about 3/4”.
If necessary move the Motor Pulley (14) toward or away from the Large Belt Wheel
until the V-Belt deects downward 3/4”. Then, retighten the four Screws (3) to se-
cure the Motor (14) in place. (See Figures I and J.)
