Page 10SKU 00086 For technical questions, please call 1-800-444-3353.
Lubrication:
Before and after each use of the TOUCH-UP GUN, perform the following lubrication process,
using a non-silicon, spray gun lubricant:
Step 1. Put two or three drops of lubricant on the NEEDLE (#24), in front of the TRIGGER
(#14). Tip the gun backward and allow the lubricant to drip into the front of the GUN
HOUSING (#13).
Step 2. Put two or three drops of lubricant on the VOLUME ADJUSTING SCREW (#12). Tip
the gun sideways and allow the lubricant to drip into the SPRAYER HOUSING.
Step 3. Put two or three drops of lubricant on the FAN ADJUSTING SCREW (#28). Tip the gun
forward and allow the lubricant to drip into the back of the HOUSING (#13).
Step 4. Put one drop of lubricant on the inside of the TRIGGER SCREW (#15). Work the
TRIGGER (#14) to allow the lubricant to coat the parts.

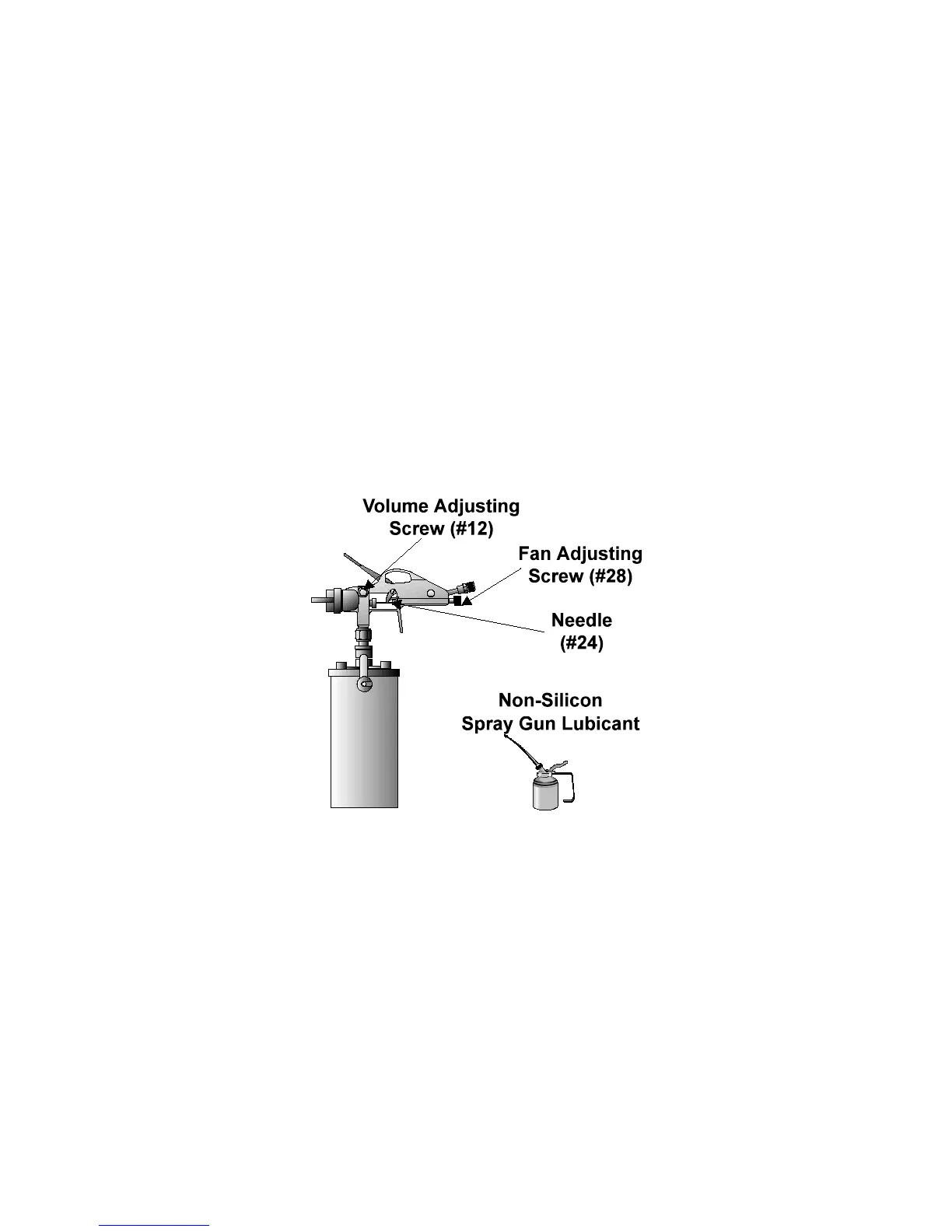

Figure 6 -- Lubricating the Touch-Up Gun
