Page 12SKU 00086 For technical questions, please call 1-800-444-3353.

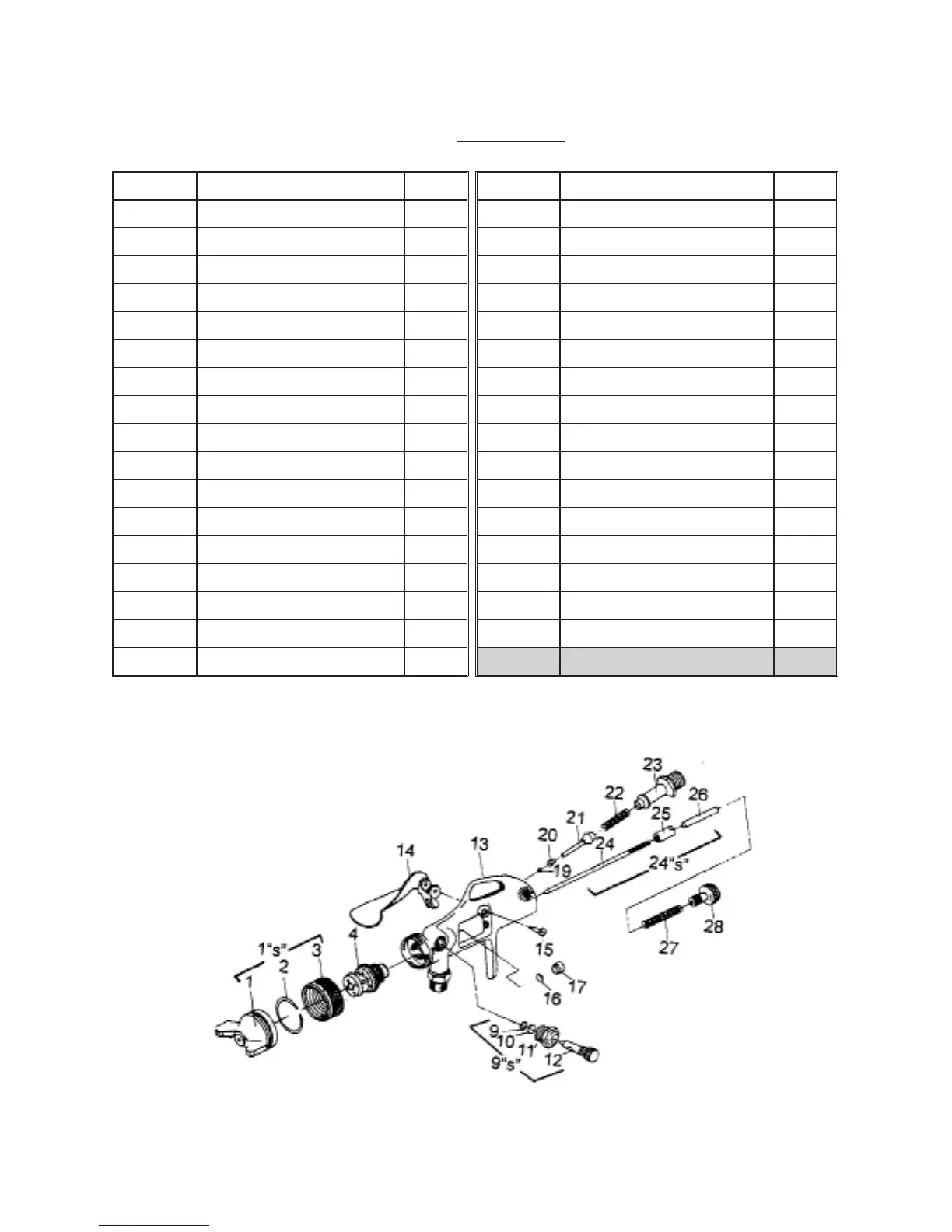

PARTS LIST
PART # DESCRIPTION QTY PART # DESCRIPTION QTY
1 Air Cap 1 23 Union 1
2 Inner Ring 1 24 Needle 1
3 Retainer Ring 1 25 Lock Nut 1
4 Fluid Nozzle 1 26 Rear Nut 1
9 Ring 1 27 Spring 1
10 Packing 1 28 Fan Adjusting Screw 1
11 Vol. Adj. Screw Receiver 1 29 Lever 1
12 Volume Adjusting Screw 1 30 Yoke 1
13 Gun Housing 1 31 Fluid Stem 1
14 Trigger 1 32 Lid 1
15 Trigger Screw 1 33 Lid Nut 1
16 Packing 1 34 Cup 1
17 Nut 1 35 Cup Locks 2
19 Packing 1 1”S” Nozzle Assembly 1
20 Valve Nut 1 9”S” Volume Adjustment Assy. 1
21 Stem Assembly 1 24”S” Needle Assembly 1
22 Spring 1
