ASSEMBLY
Connect the Spray Unit to the Canister Unit as shown in Figure 1.
BEFORE YOU USE YOUR TOUCH-UP GUN
A coupler is required to connect the Touch-Up Gun to an air
compressor. Select the coupler, e.g. ¼” “M” style NPT, etc. that
mates with the end of the air hose you are using, and screw
it onto the AIR CONNECTION (#23) located at the end of the
Touch-Up Gun’s handle (see Figure 2).

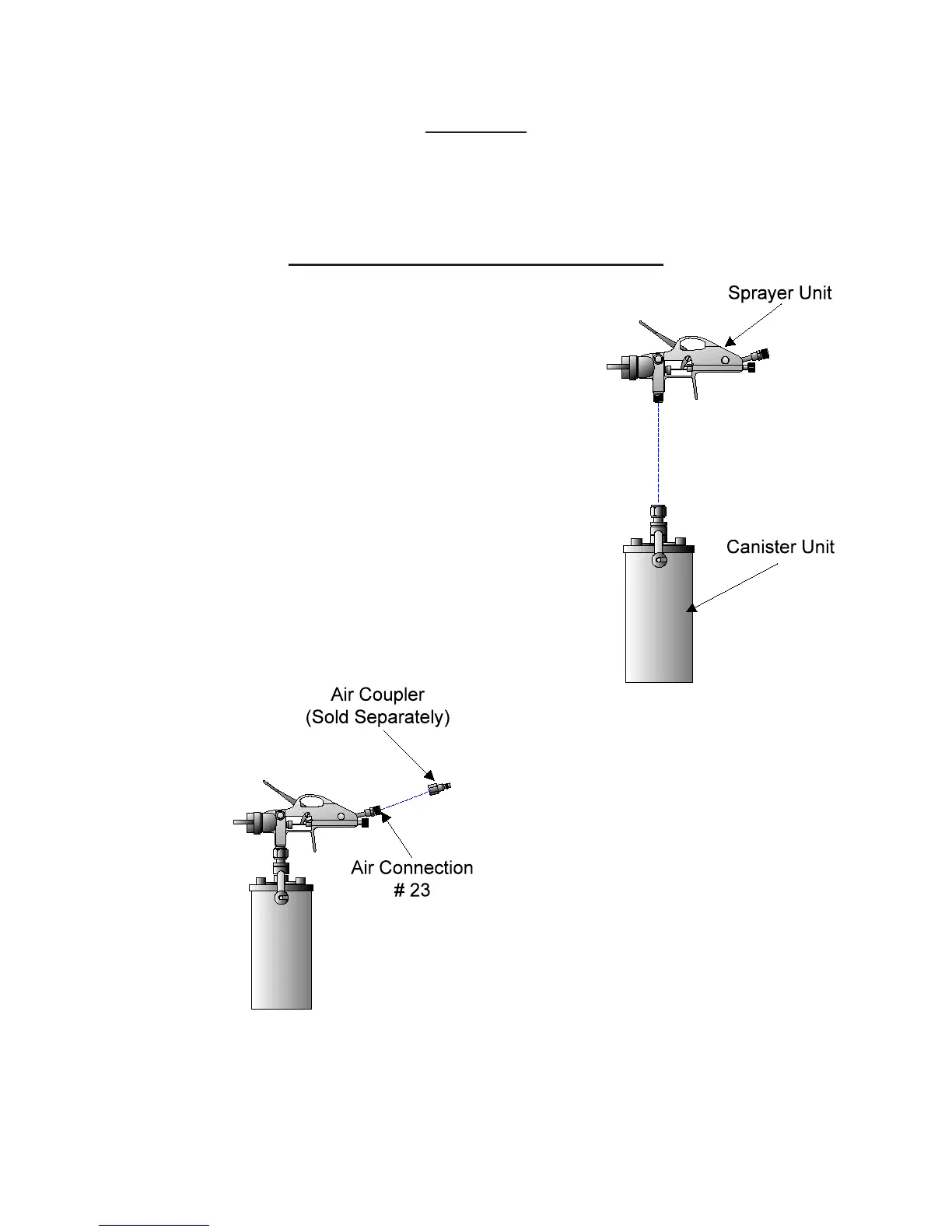

Figure 1 -- Connecting the
Spray Unit and Canister
Figure 2 -- Attaching Air Coupler
