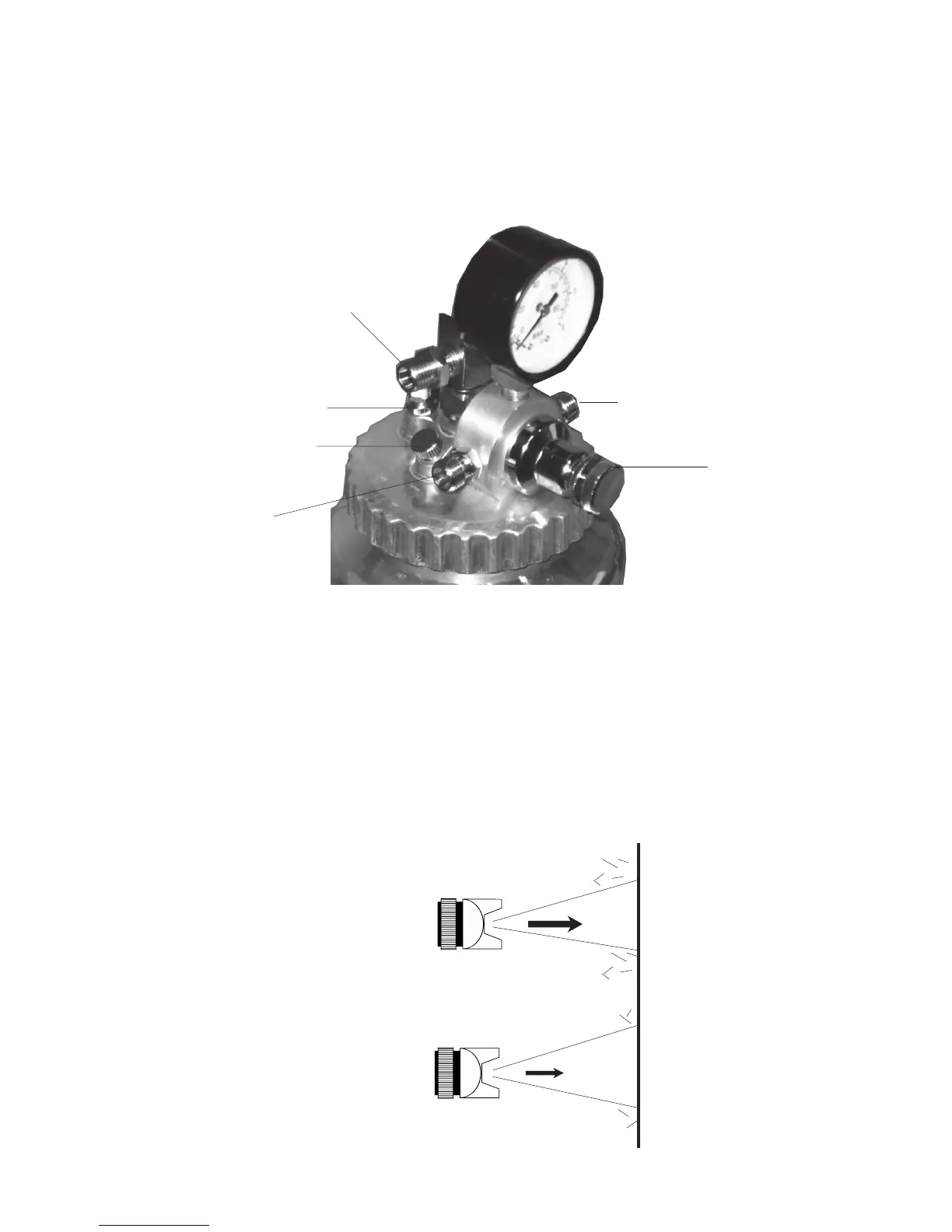

FIGURE 2
Air Outlet Connector (36)
Safety Valve (2)
Fluid Flow Knob (11)
Fluid Outlet (39)
Air Inlet Connector (36)
Air Regulator (24)
A Comparison: Conventional versus HVLP Spray Guns
Because conventional spray guns require a much higher air cap pressure to atomize
the paint than HVLP Spray Guns, conventional guns have lower transfer efficiencies
and more overspray.
This translates to a significant paint/material savings for HVLP guns, in addition to
making them more environmentally friendly.
To qualify as HVLP, the dynamic air pressure going in the Air Cap must be a maximum
of 10 PSI. The lower the air pressure, the less bounce back and overspray.
See FIGURE 3 below.
Conventional
HVLP
FIGURE 3
