Page 7For technical questions, please call 1-800-444-3353.SKU 95793

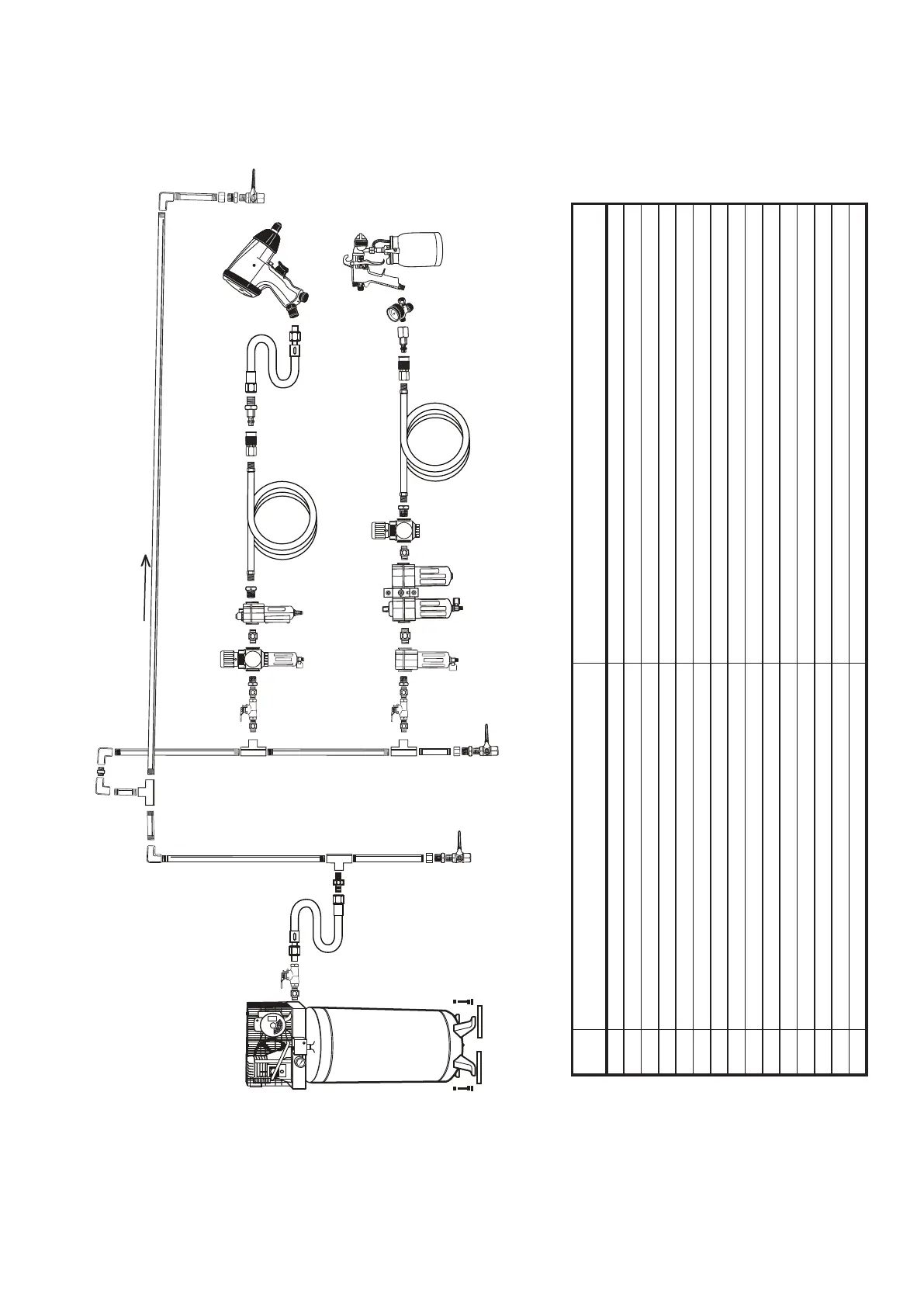

Figure B: Stationary Air Supply Setup
I
M
M N
O
C
C
Non-lubricated
Tools
Lubricated
Tools
L
H
H
J
J
K
L
F
G
E
Slope
F
F
B B
A A
C
D
Description Function
A For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Distributes air to branch lines
F To drain moisture from system
G Brings air to point of use
H Filter Prevents dirt and condensation from damaging tool or work piece
I Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
J Regulator
K Lubricator For air tool lubrication
L Air Hose Connects air to tool
M Coupler and Plug Provides each connection
N
O Lead Hose
Increases coupler life
