Loading Nails:
1. WARNING! Always wear ANSI-
approved safety goggles
when reloading or performing
any other maintenance on Nailer.
Other people in the work area must
also wear ANSI-approved safety
goggles.
2. WARNING! Make sure Nailer is not
attached to the air hose when load-
ing tool.
3. Note: This Nailer only uses 28°
paper-collated clip head nails and
wire collated full head nails.
4. Pull the Feeder Shoe (69) all the way
to the rear until it latches.
5. Orient a strip of Nails (not included)
with tips down and drop the Nails into
the Magazine (71).
6. Slide the Nails forward in the Maga-
zine. The Magazine will hold 90
Nails.
7. Pull Feeder Shoe backward and then
press Lock (75) to allow Feeder Shoe
to slide forward against the Nails.
Operating Nailer
1. Attach the Nailer to the air supply at
the Air Plug (83).
2. Start your compressor and check the
pressure, making sure you do not
exceed the maximum 120 PSI.
3. Rotate the Exhaust Cover (4) so that
the exhaust air blast will be directed
away from the operator.
4. To re, place the Nose Safety Guide
(42) of the Nailer on the workpiece.
The Nailer should not re if the Nose
is not depressed.
5. Once depressed, gently and briey
squeeze the Trigger (56) once; one
Nail will be red.
6. Do not press the Nose against the
workpiece with extra force. Allow the
tool to do the work. Always allow the
tool to recoil off the work surface.
7. When nished using the Nailer,
always disconnect the tool from its
air supply. Empty the Magazine (71)
completely of Nails.
8. Attempt to re the Nailer into a piece
of scrap wood to ensure it is discon-
nected and is incapable of ring any
Nails.
9. Make sure to store the Nailer in a
clean, dry, safe location out of reach
of children.

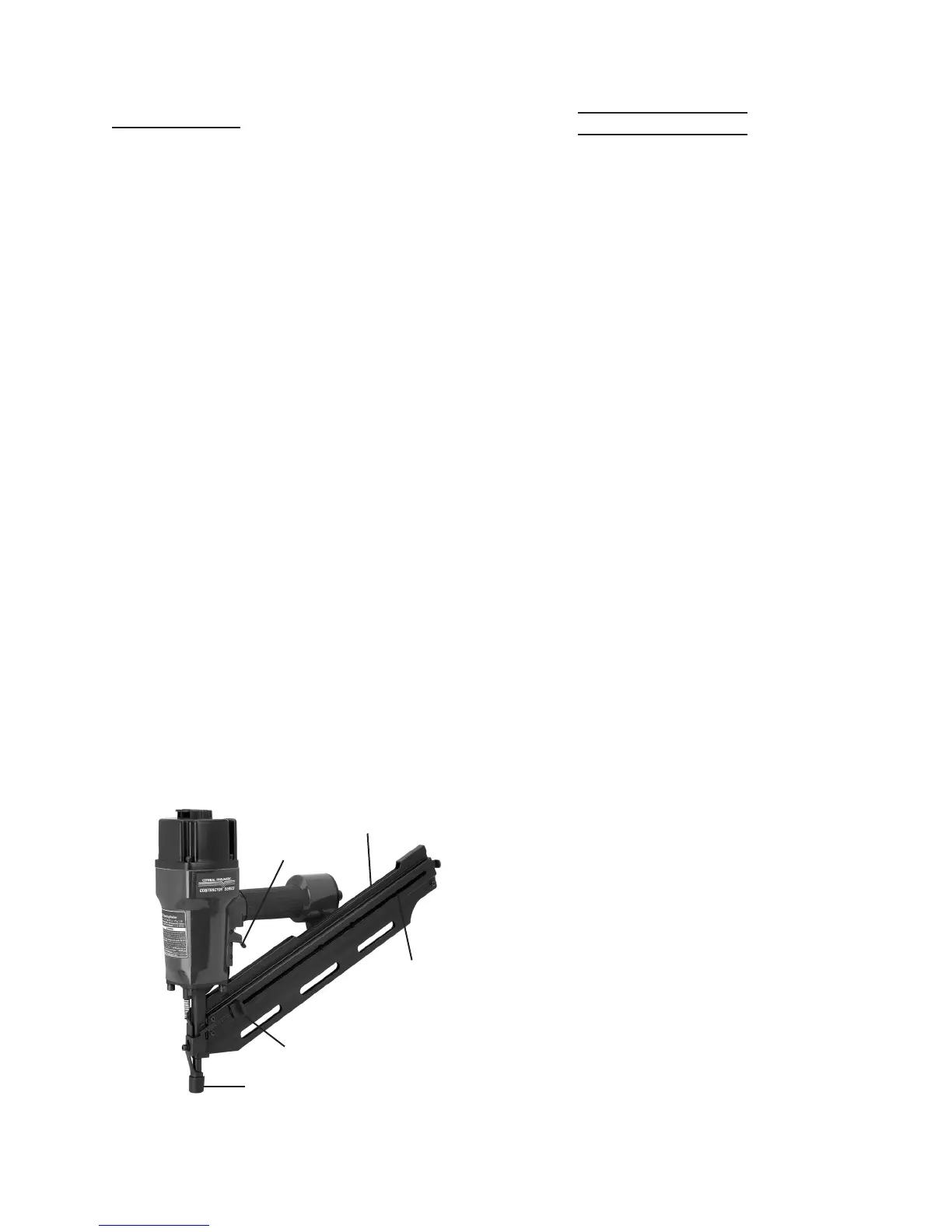

Nose Safety Guide (42)
Trigger (56)
Feeder Shoe (69)
Magazine
(71)
INSERT NAILS
HERE
