23MB Pool & spa heater

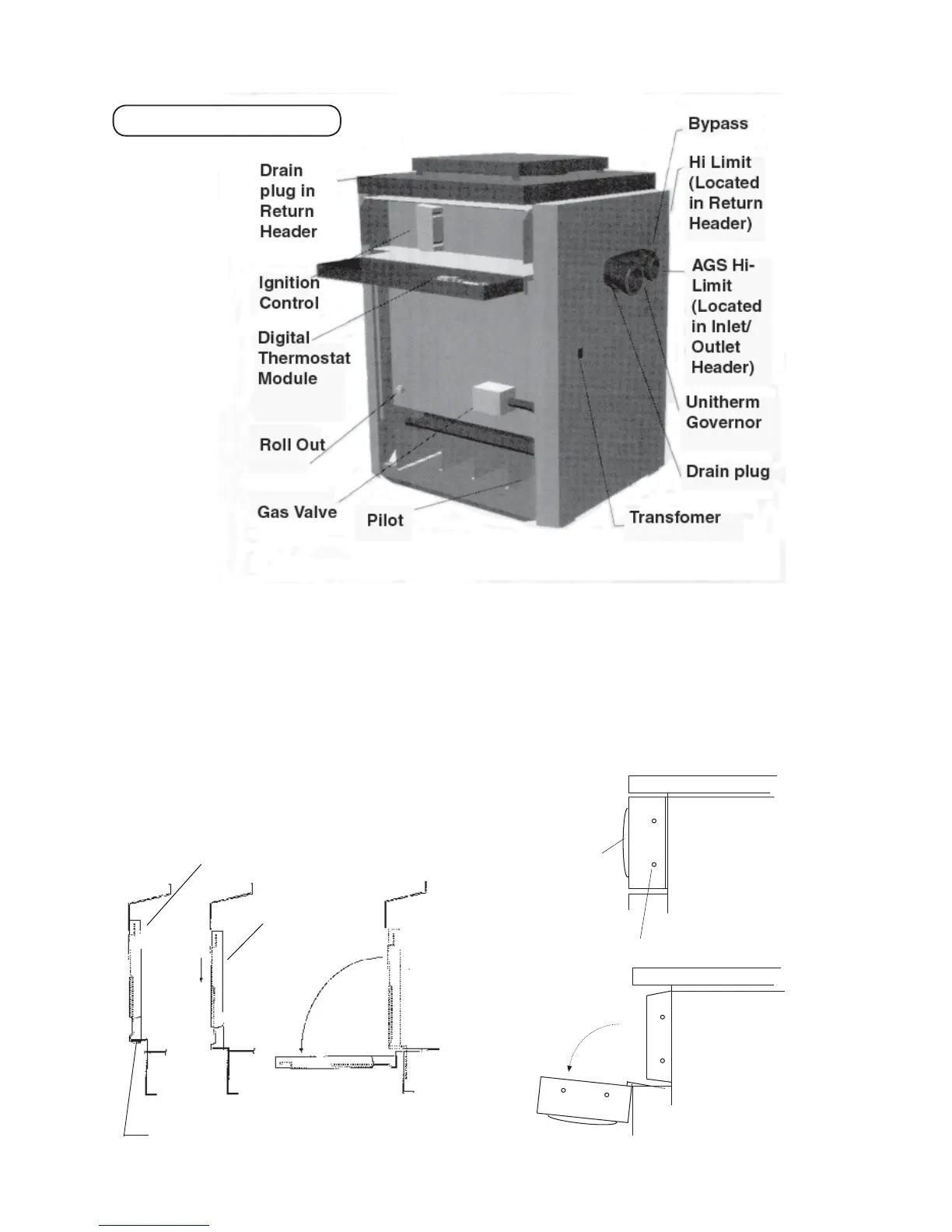

GENERAL LOCATION OF CONTROLS - continued.
185-265-405 MODEL
155 Model
CONTROL PANEL REMOVAL
1. Remove lower door.
2. Remove (2) screws from bottom fl ange of
control panel.
3. Slide down control panel to clear jacket top
panel.
4. Rotate control panel down until panel stops.
Do not force.
NOTE: Caution must be taken not to damage
controls or wiring.
Jacket Top Panel
Control Panel
Mounting Screws (2)
185,265 & 405 Models
CONTROL PANEL REMOVAL
1. Remove (4) screws from sides of control
panel.
2. Rotate control panel down until panel stops.
Do not force.
NOTE: Caution must be taken not to damage
controls or wiring.
CONTROL PANEL
MOUNTING SCREWS (4)
To Next Page
