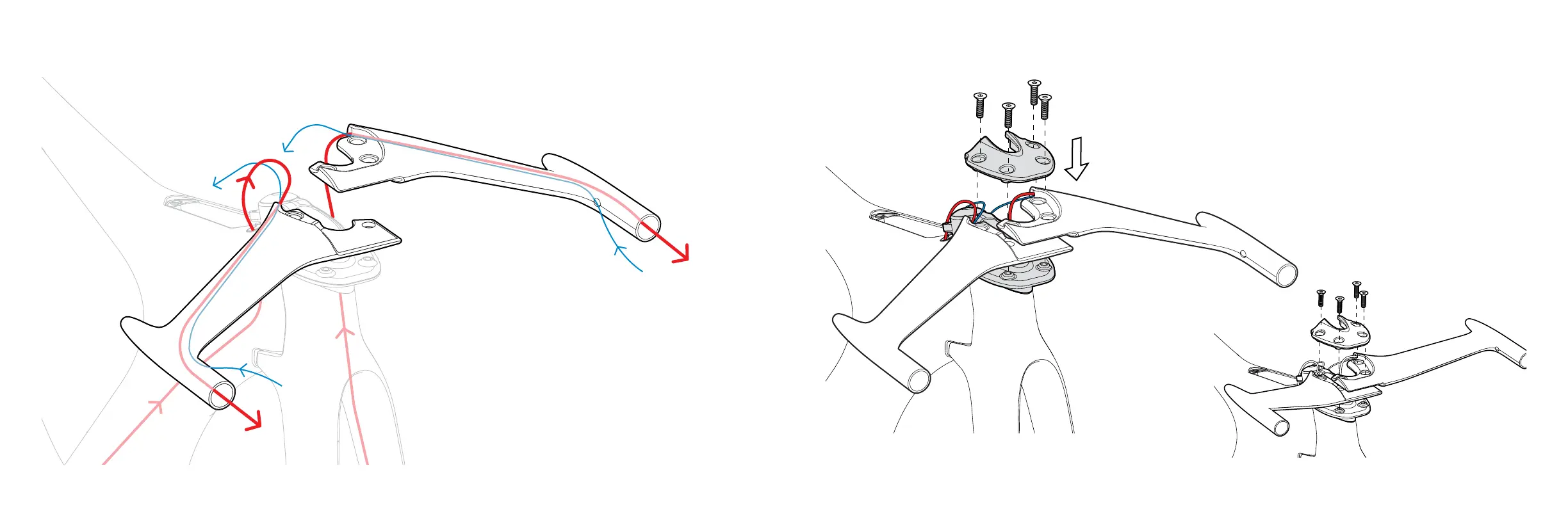

BASEBAR INSTALLATION
Basebar - Low Position
Basebar - High Position
1. Lightly grease the threads of the four M5 stem xing screws.
2. Position both halves of the base bars as shown in the up, or down
conguration as determined during tting.
3. Install the Basebar Plate and hold the assembly in place.
4. Insert the four greased M5 xing screws as shown to x the
basebar into place.
5. Tighten to 6 Nm maximum torque.
BASEBAR WIRING
1. Feed electric cable through each side of the basebar from
the front.
2. With brake lines already installed in frame and exiting from
the top tube cable port, push through from back of bar.
3. Install brake levers as per manufacturer’s instructions.
