Cervélo P5X - RISER ASSEMBLY; EXTENSION AND PAD MOUNT

12 13

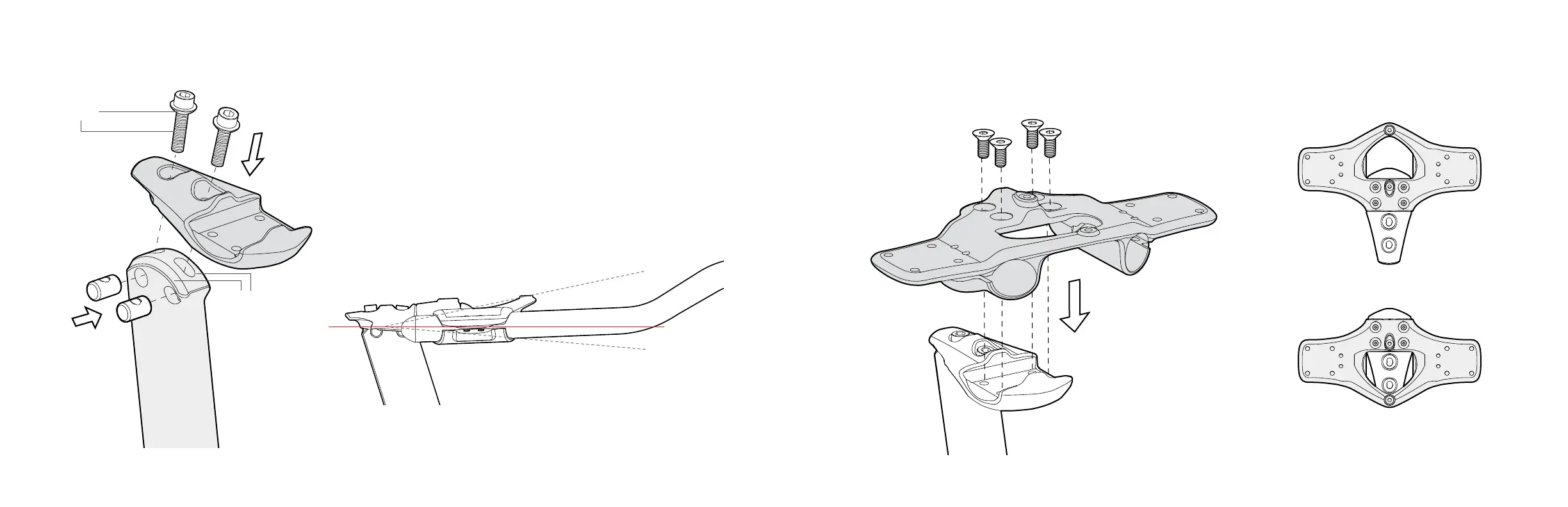

EXTENSION AND PAD MOUNT
Setback Position
Forward Position
The Pad and Extension Mount can be
attached in two positions:
1. Attach Pad and Extension Mount to Angle Adjust Plate using
four lightly greased M5 xing screws.
2. Torque to 6 Nm.
RISER ASSEMBLY
+12°
-5°
0°
The riser assembly has +12/-5 degrees of tilt adjustment.
1. Lightly grease the threads and spherical washer faces of the
two angle adjust plate xing bolts.
2. Lightly grease the tilt interfacing surface on both the Stem Riser
Post and the Angle Adjust Plate.
3. Assemble the Stem Riser Post components as depicted left.
4. Tighten to 6 Nm.
Grease
Grease
