CESAB S214 - 10.3 Removing the toothed wheel

© Cesab 10 – 4 T Code(s): 841, 842, 843
Repair manual: Electric drive motor 1700 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
10.3 Removing the toothed wheel
• Remove the motor from the truck. Page 10–2
Note: Place the motor on a working surface and make sure that it is secured
and cannot fall over.

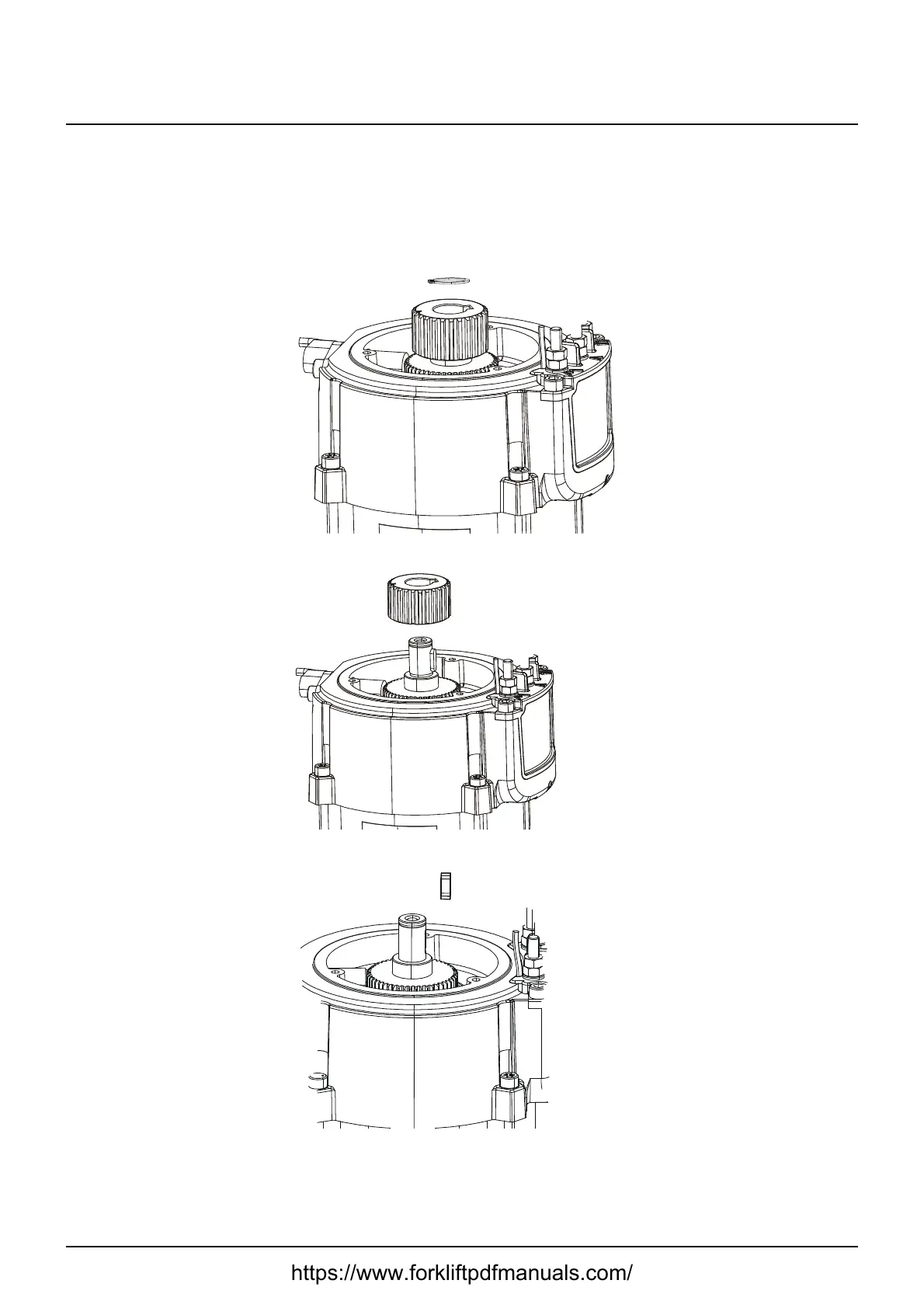

1. Remove the circlip
2. Remove the brake hub
3. Remove the key
