Repair manual: Tiller arm 4000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

13.5.5 Replacing the tiller arm handle

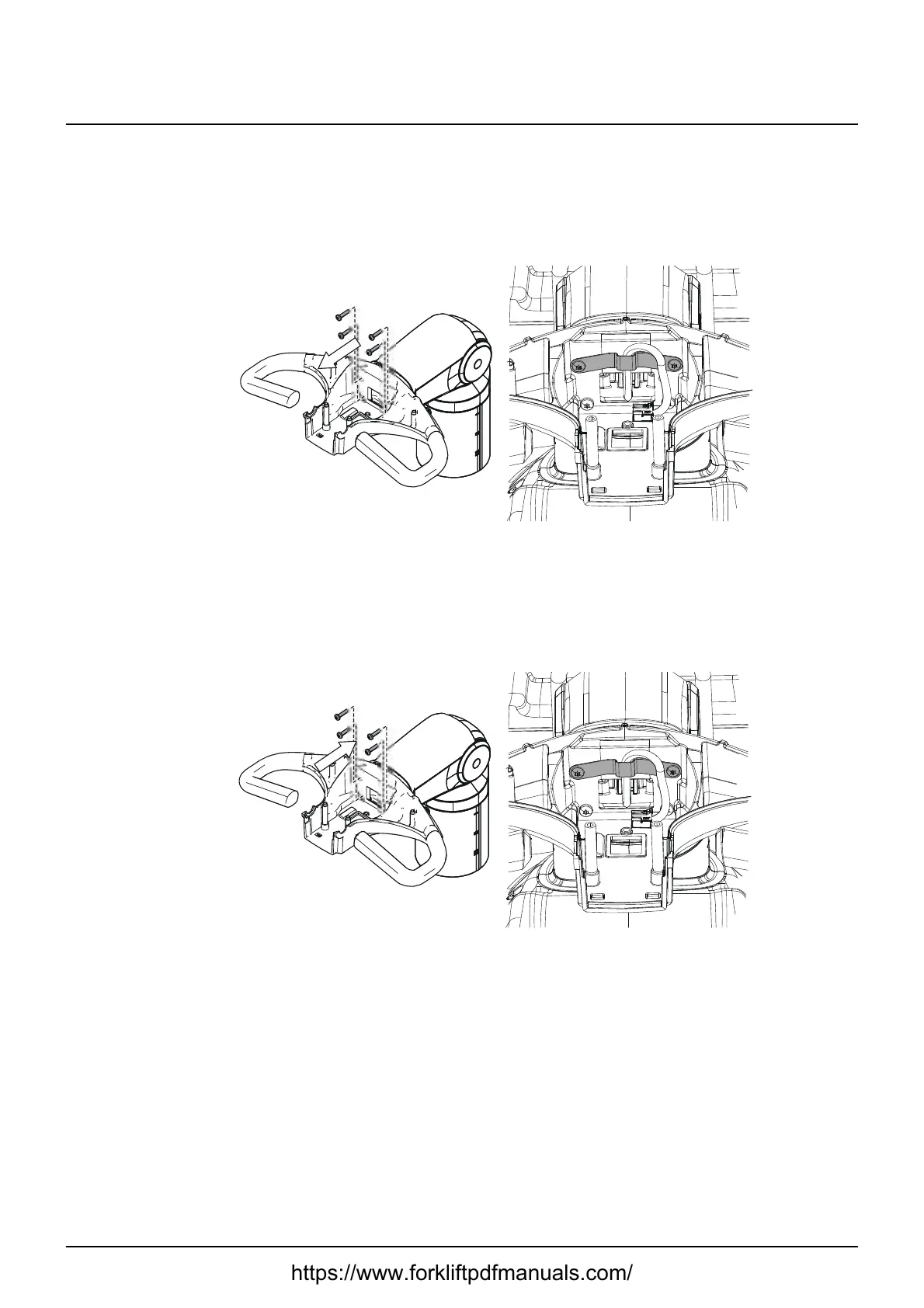

Removing the tiller arm handle

• Remove the upper cover. Page 13–8

1: Remove the cable bracket/handle in the tiller arm.

Fitting the tiller arm handle

1: Fit the handle/cable bracket.

Note: Mount the wiring harness so that it does not get pinched.

• Fit the upper cover. Page 13–9

T=12Nm
