Cessna 150L - Page 111

B
27
~ 1 ... 1------ .12 ± .05 "with
30
31 29
VIEW B-B
flaps in the FULL
UP position
SK150-41 AND THIS FLAP ACTUATOR INSTALLATION IS
EFFECTIVE ONLY WHEN USED AS A REPLACEMENT
SPARE, OR ON PRODUCTION FLAP ACTUATOR INSTALL-
ATIONS PRIOR TO AIRCRAFT SERIALS 15072630, F150-
00739, A15000278 AND FA15000133

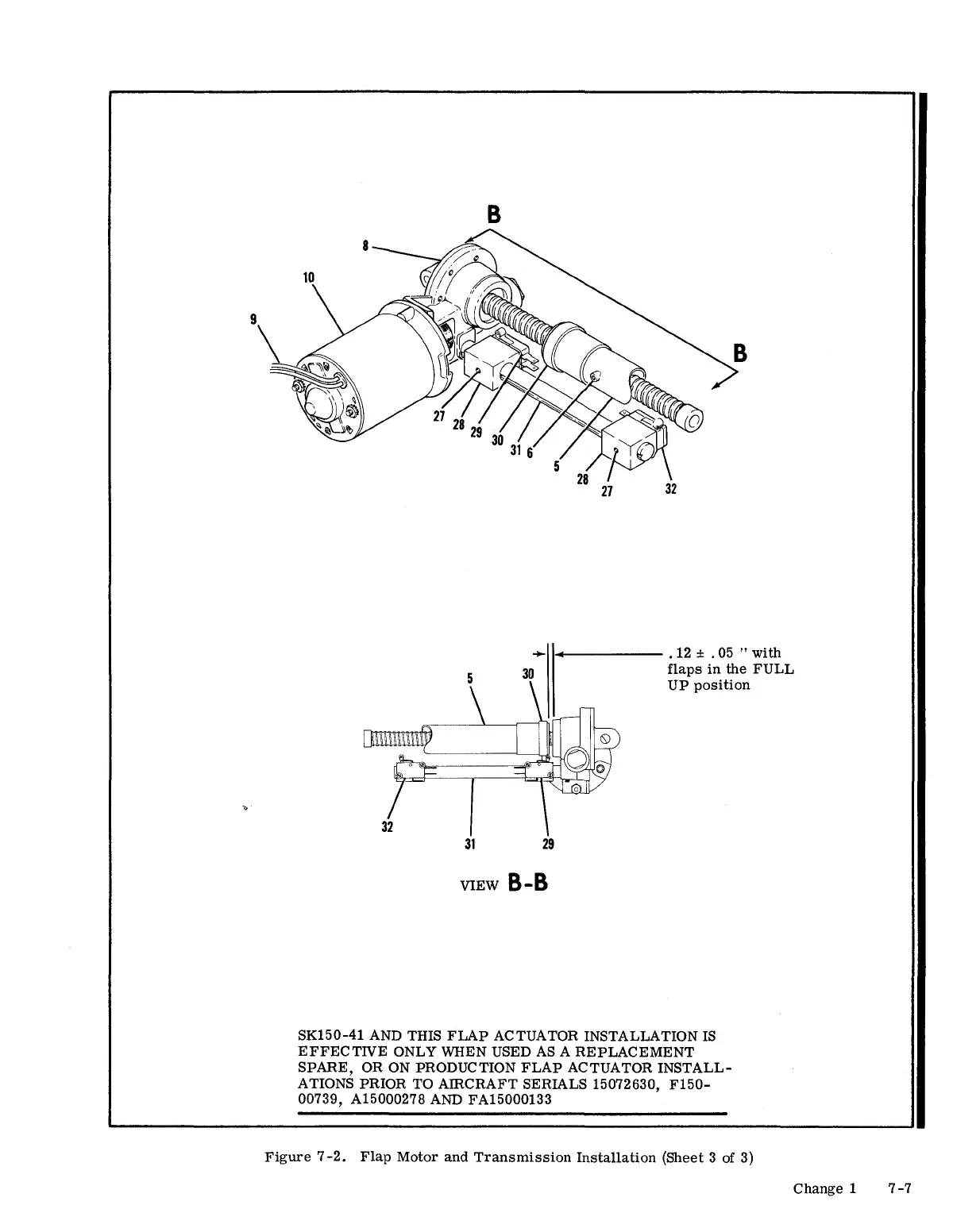

Figure 7 -2. Flap Motor and Transmission Installation (Sheet 3 of 3)
Change 1 7-7
