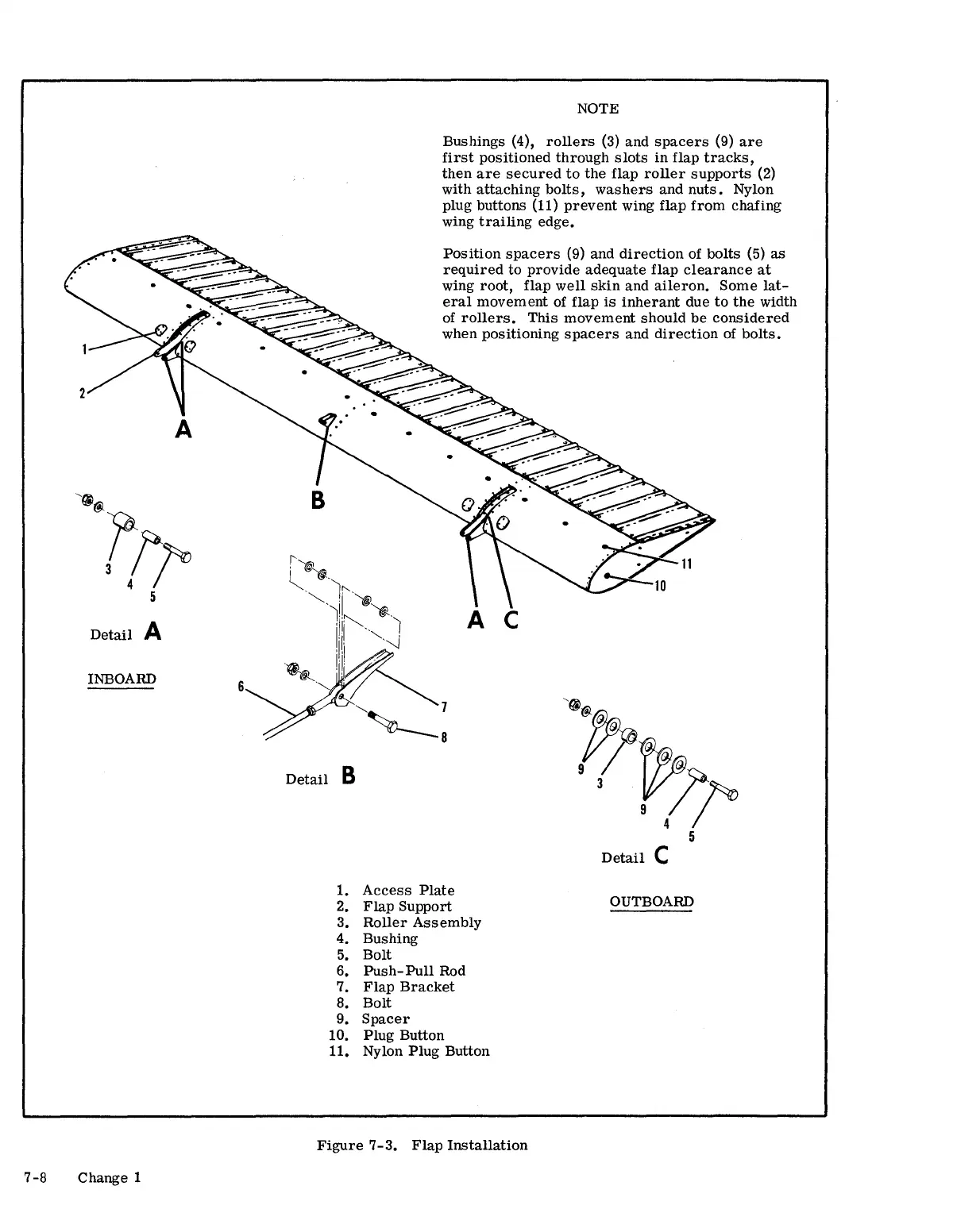

Cessna 150L - Flap Installation

A
Detail A
INBOARD
6
7-8 Change 1
Detail B
NOTE
Bushings (4), rollers (3) and spacers (9) are
first positioned through slots in flap tracks,
then are secured to the flap roller supports (2)
with attaching bolts, washers and nuts. Nylon
plug
buttons (11) prevent wing flap from chafing
wing trailing edge.
Position spacers (9) and direction of bolts (5) as
required to provide adequate flap clearance at
wing root, flap well skin and aileron. Some lat-
eral movement of flap is inherant due to the width
of
rollers. This movement should be considered
when positioning spacers and direction of bolts.
A C
5
Detail C
1. Access Plate
2. Flap Support
OUTBOARD
3.
Roller Assembly
4. Bushing
5. Bolt
6. Push-Pull Rod
7.
Flap Bracket
8. Bolt
9. Spacer
10. Plug Button
11. Nylon Plug Button
Figure 7-3. Flap Installation
