Cessna 150L - Firewall Angle Repair

1/4" EDGE MARGIN
10
RIVETS EACH SIDE -Y."-'"" ____
OF DAMAGED AREA
c::=J ORIGINAL PARTS
llilMW)@m REPAIR PARTS
CLEAN OUT DAMAGED AREA
A-A
ANGLE - 2024-T4 ALCLAD
FIREWALL ANGLE
-- FILLER - 2024-T4 ALCLAD
MS20470AD4 RIVETS
---- FIREWALL
--=~---- FUSELAGE SKIN
_
REPAIR PARTS IN CROSS SECTION

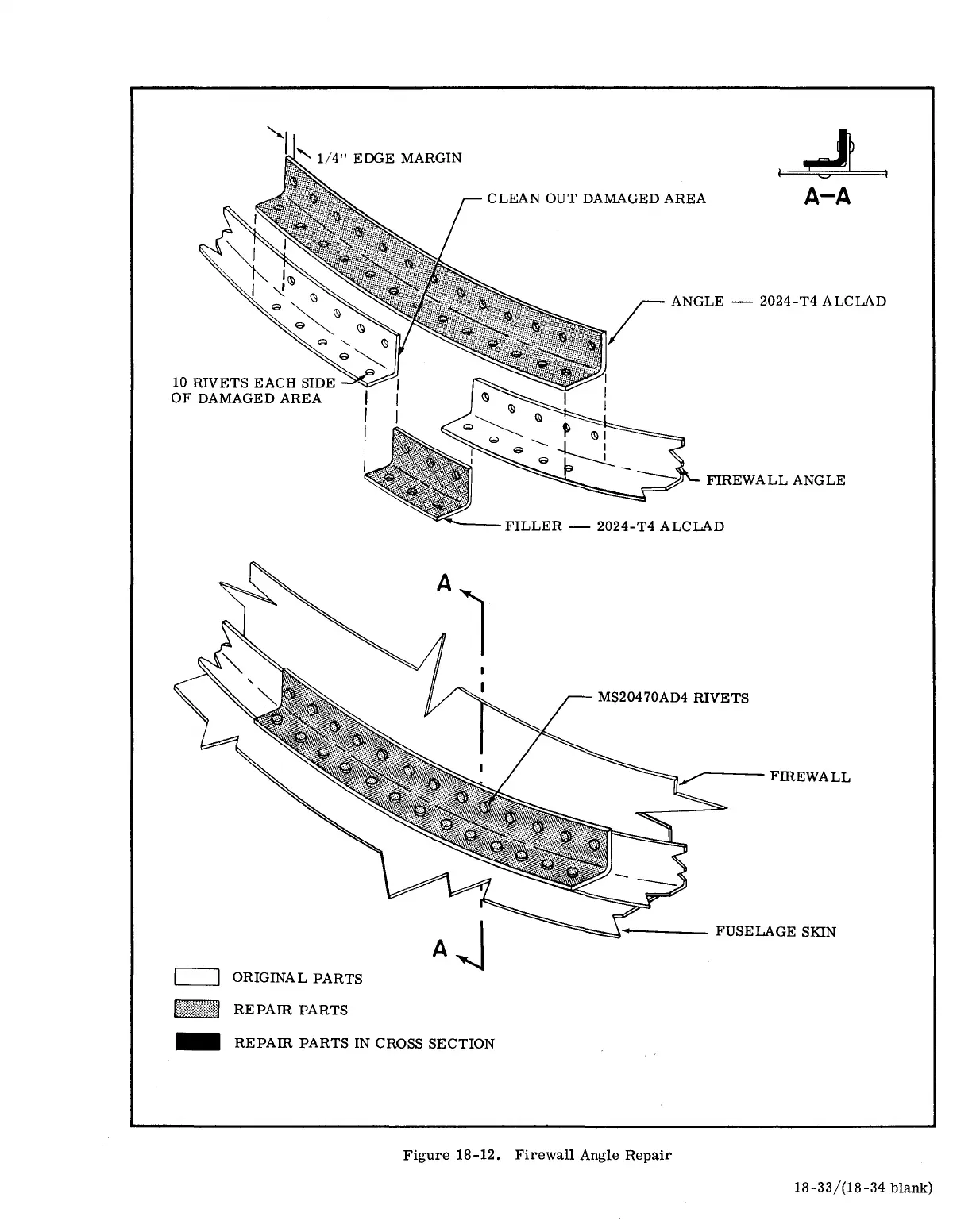

Figure 18-12. Firewall Angle Repair
18-33/(18-34 blank)
