18
STA. 98.00 THRU 1970 MODELS ONLY
STA. 104.001971 MODELS AND ON
23
Detail C
THRU 1972 MODELS
t
W.L.O.OO
(REF)
21
Detail 0
o
BEGINNING WITH 1973 MODELS
18. Power Supply
19. Nut
20. Washer
21. Screw
22. Wing Light Wires
23. Light Switch and Grd Wires
24. Wing Tip Rib

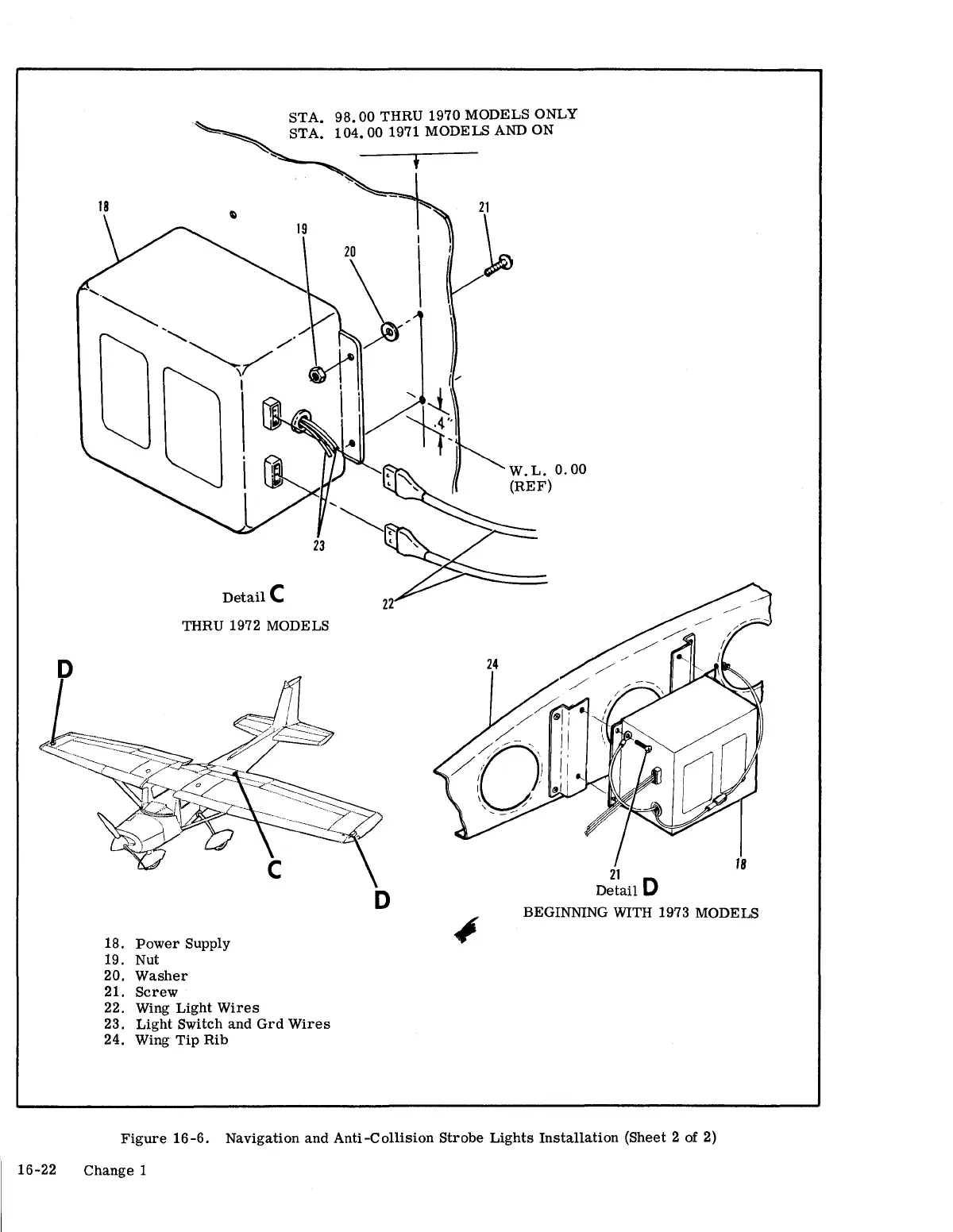

Figure 16-6. Navigation and Anti-Collision Strobe Lights Installation (Sheet 2 of 2)
16-22 Change 1
