Cessna 150L - Page 273

FILLER - 2024- T4 ALCLAD
DOUBLER - 2024-T3 ALCLAD
CLEAN OUT DAMAGED AREA
1/ 4" EDGE MARGIN
ANGLE - 2024-T4 ALCLAD
RIB---<~[
u.--4.----- MS20470AD4 RIVETS
..... _ .... ORIGINAL PARTS
IttHtHtl RE PAIR PARTS
-
REPAIR PARTS IN
CROSS SECTION

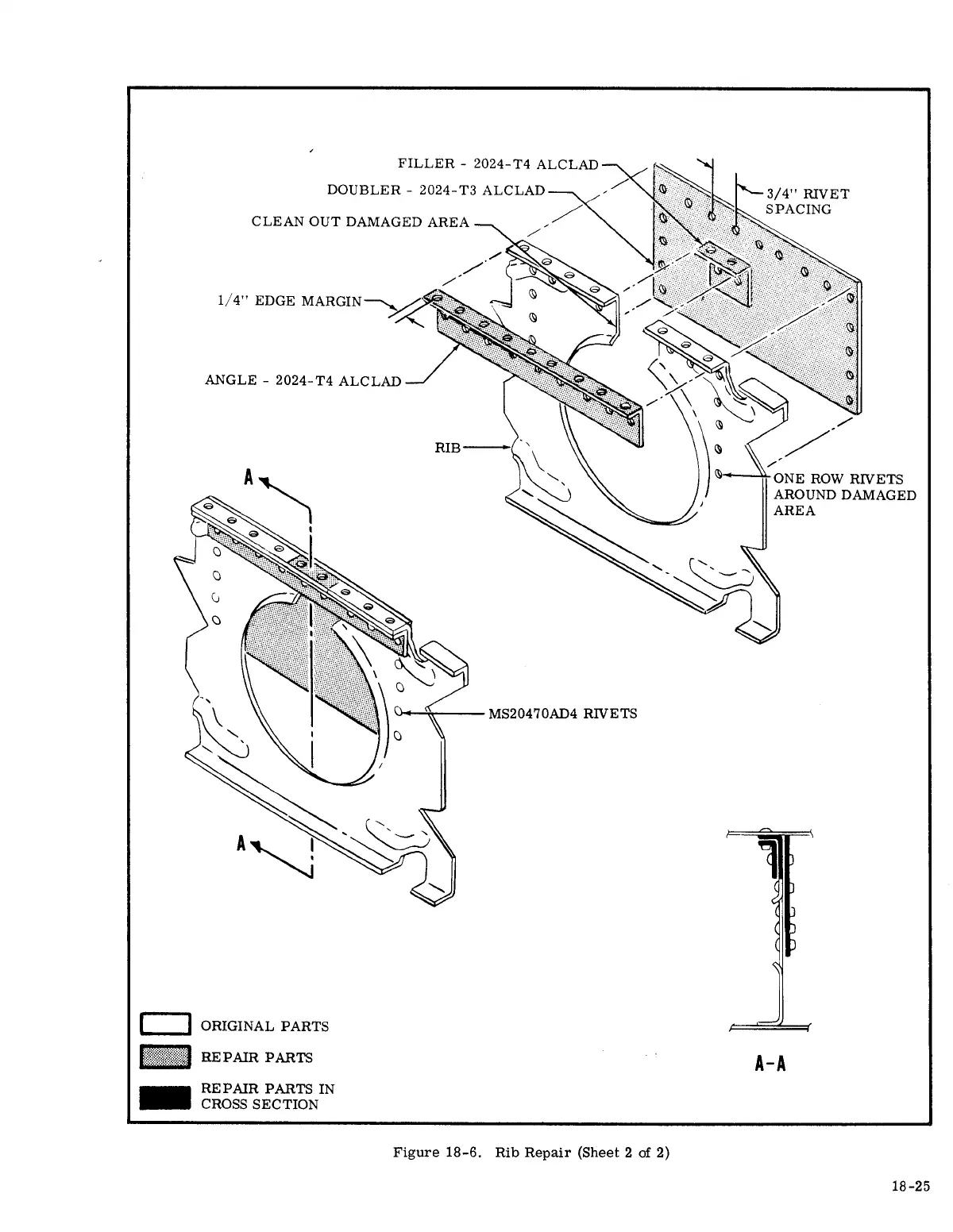

Figure 18-6. Rib Repair (Sheet 2 of 2)
Ill---~ONE ROW RIVETS
AROUND DAMAGED
AREA
A-A
18-25
