Cessna 170 - Battery Solenoid (Relay) and Master Switch Circuit; Landing Light Adjustment

Cessna 170 Service Manual
Electrical System
Appdx. EL-2

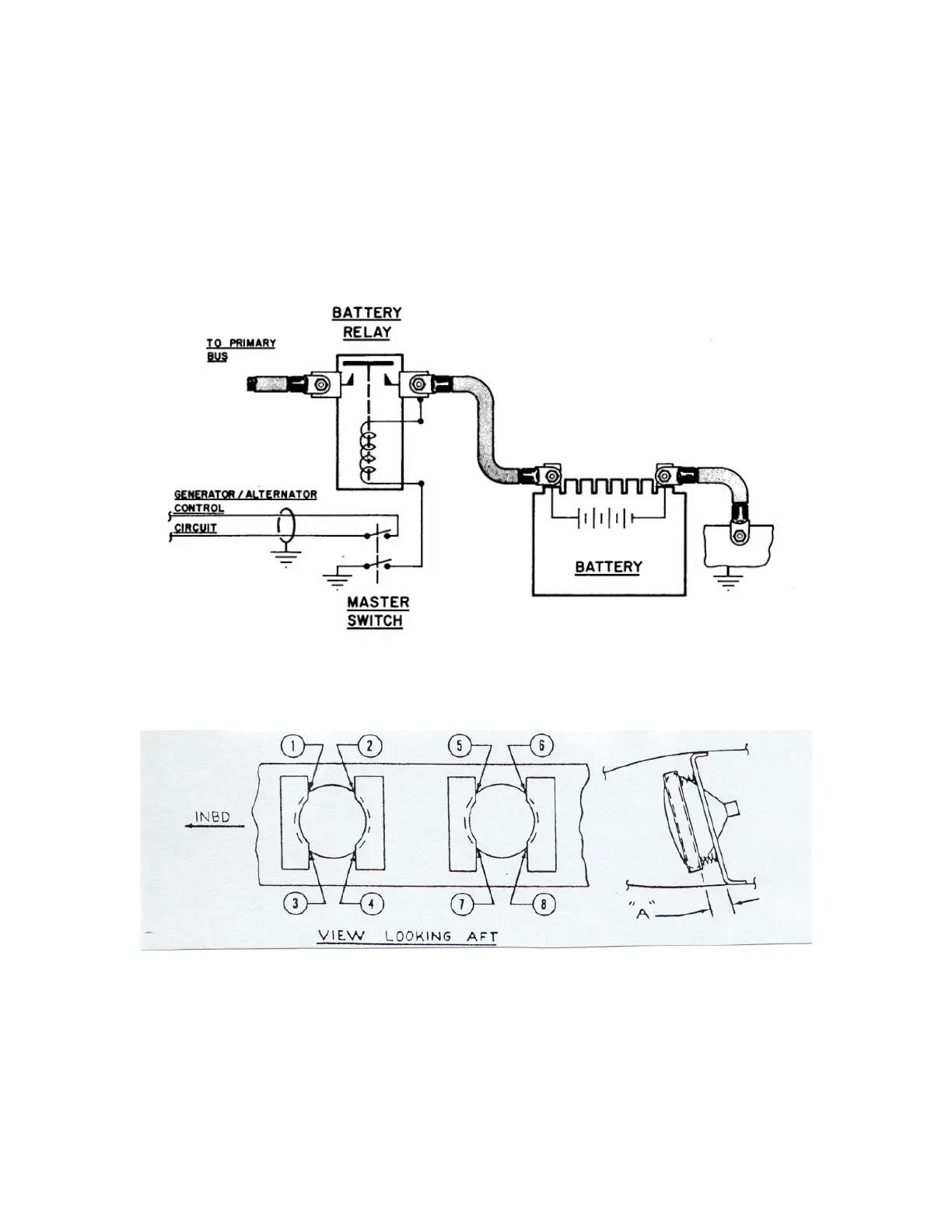

Fig. EL 03, Battery Solenoid (Relay) and Master Switch Circuit
Fig. EL-04, Landing Light Adjustment
Land Lamp Taxi Lamp
Position 1 = .56” Position 2 = .62” Position 5 = .56” Position 6 = .90”
Position 3 = .62” Position 4 = .68” Position 7 = .50” Position 8 = .84”
