Cessna 170 - Generator Motor Test Schematic; Test for Generator Short

Cessna 170 Service Manual
Electrical System
Appdx EL-4

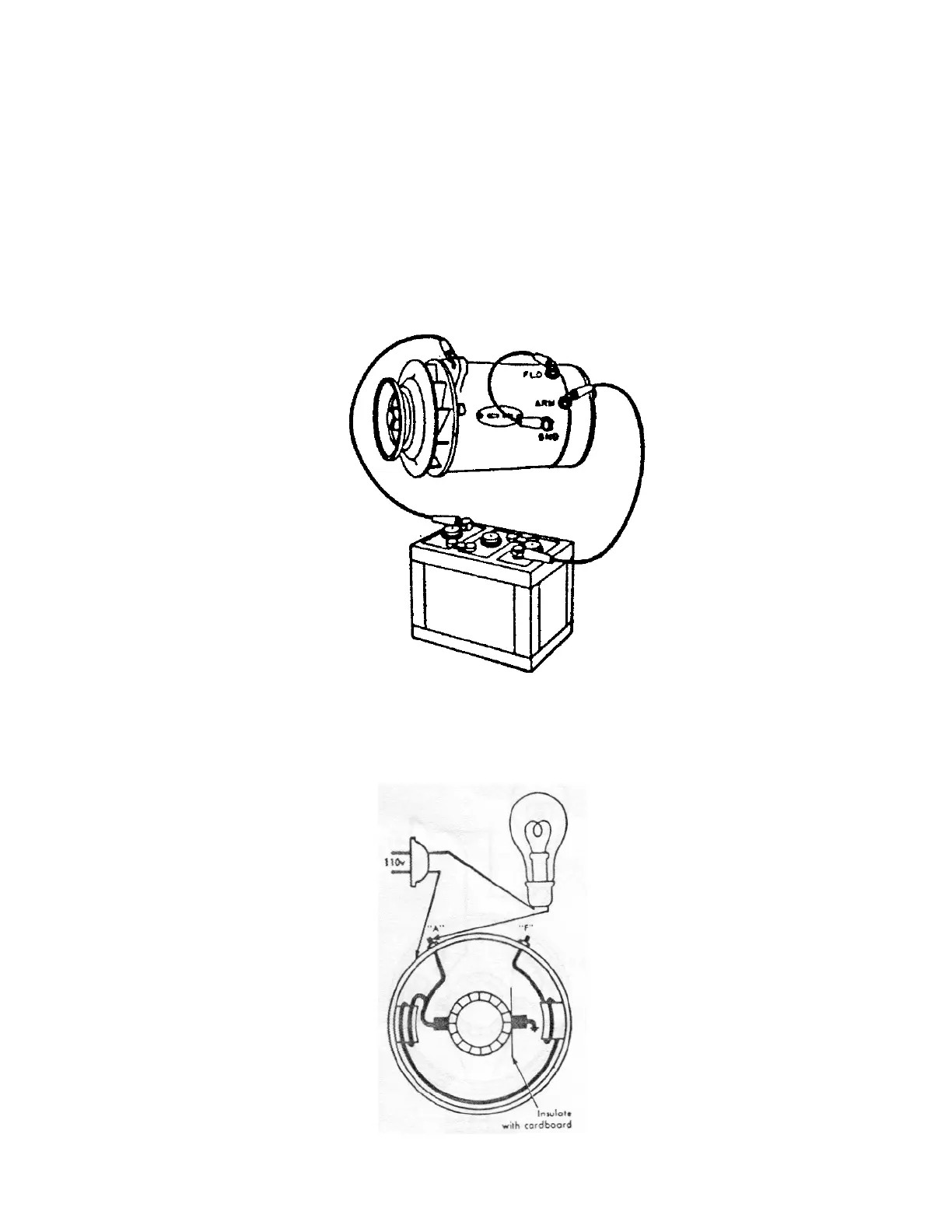

Fig. EL-07. GENERATOR MOTOR TEST SCHEMATIC
NEGATIVE BATTERY CABLE TO CASE POSITIVE BATTERY CABLE TO ARM TERMINAL
FIELD TERMINAL TO CASE
FIG. EL-08, TEST FOR GENERATOR SHORT
