Cessna SKYMASTER 337 Series User Manual

Cessna
illustrated
parts
catalog
AUDIO CONTROL
PANEL & SELECTOR SWITCH
INSTALLATIONS
MODIFICATION NOTES:
1. Potentiometer to be adjusted to middle adjustment range.
2 Add jumper
wire to solder pads
between pins 7
and 18 only when the
200A or 300A
autopilot is installed.
3 Punch out intended
hole on CLARE RELAYS after relay
is installed and circuit board
assembly is cleaned.
4.
CAUTION When replacing or adding
diodes, note diode direction on printed
circuit
board. Damage to components or electrical system may result if improperly installed.
If an autopilot is to be installed, items 38 & 39 must be ordered separately and installed
as shown.
If a second ADF is to be installed, item 41 must be ordered separately and installed as
shown.
INSTALLATION A - AUDIO
CONTROL PANEL WITH ELECTROLUMINESCENT
LIGHTING AND
400 MARKER BEACON
- 1980 & ON MODELS
WITH THREE
TRANSMITTERS
OR DUAL ADF's

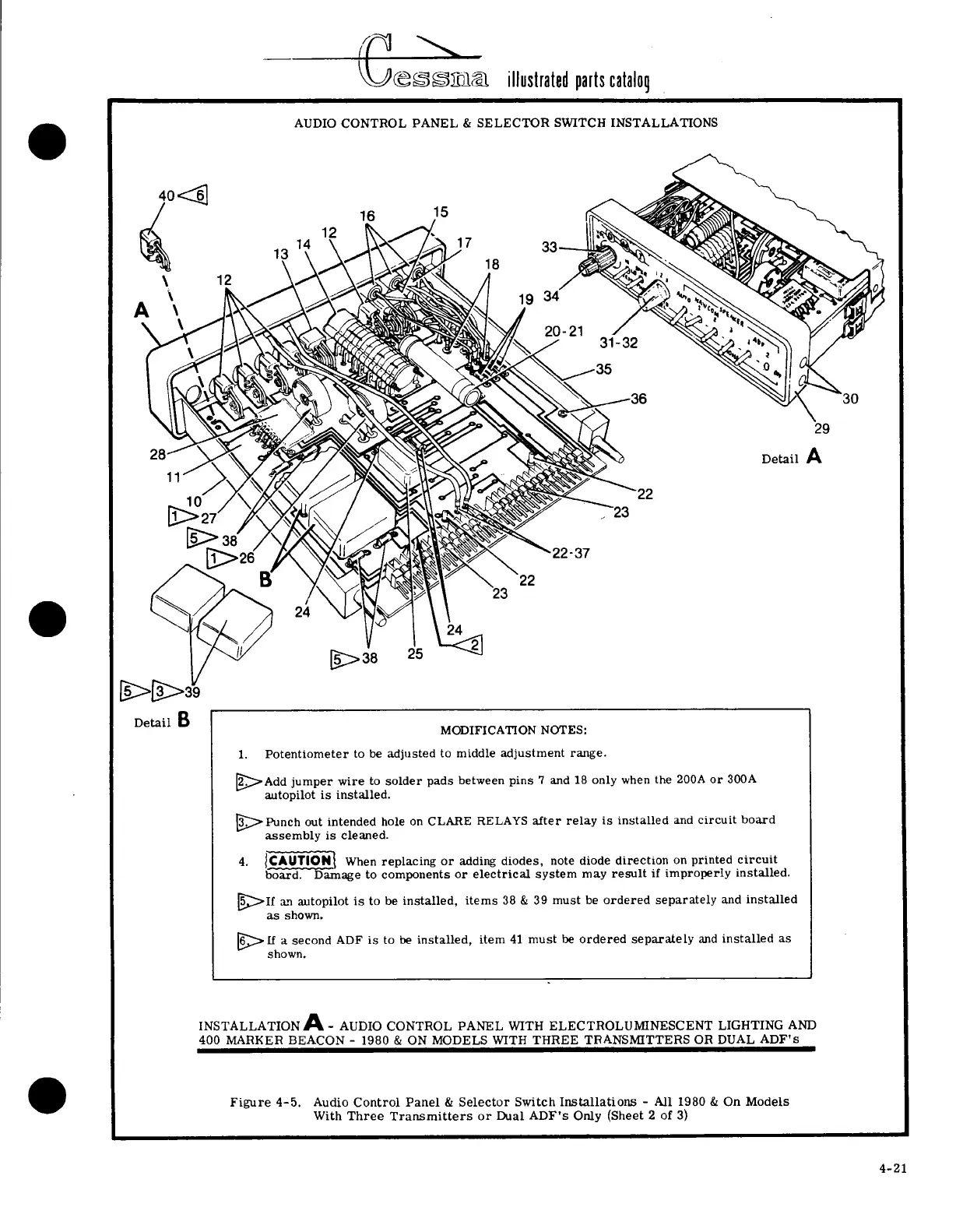

Figure
4-5. Audio Control Panel & Selector
Switch Installations - All 1980 &
On Models
With Three Transmitters
or Dual ADF's Only
(Sheet 2 of 3)
4-21
Detail B

Cessna SKYMASTER 337 Series Specifications

General

Manufacturer	Cessna
Crew	1
Capacity	5 passengers
Length	9.07 m (29 ft 9 in)
Wingspan	11.63 m (38 ft 2 in)
Height	2.84 m (9 ft 4 in)
Power Output	210 hp (157 kW) each
Maximum Speed	322 km/h (200 mph, 174 kn)
Powerplant	2 × Continental IO-360-C
Service Ceiling	5, 791 m (19, 000 ft)
