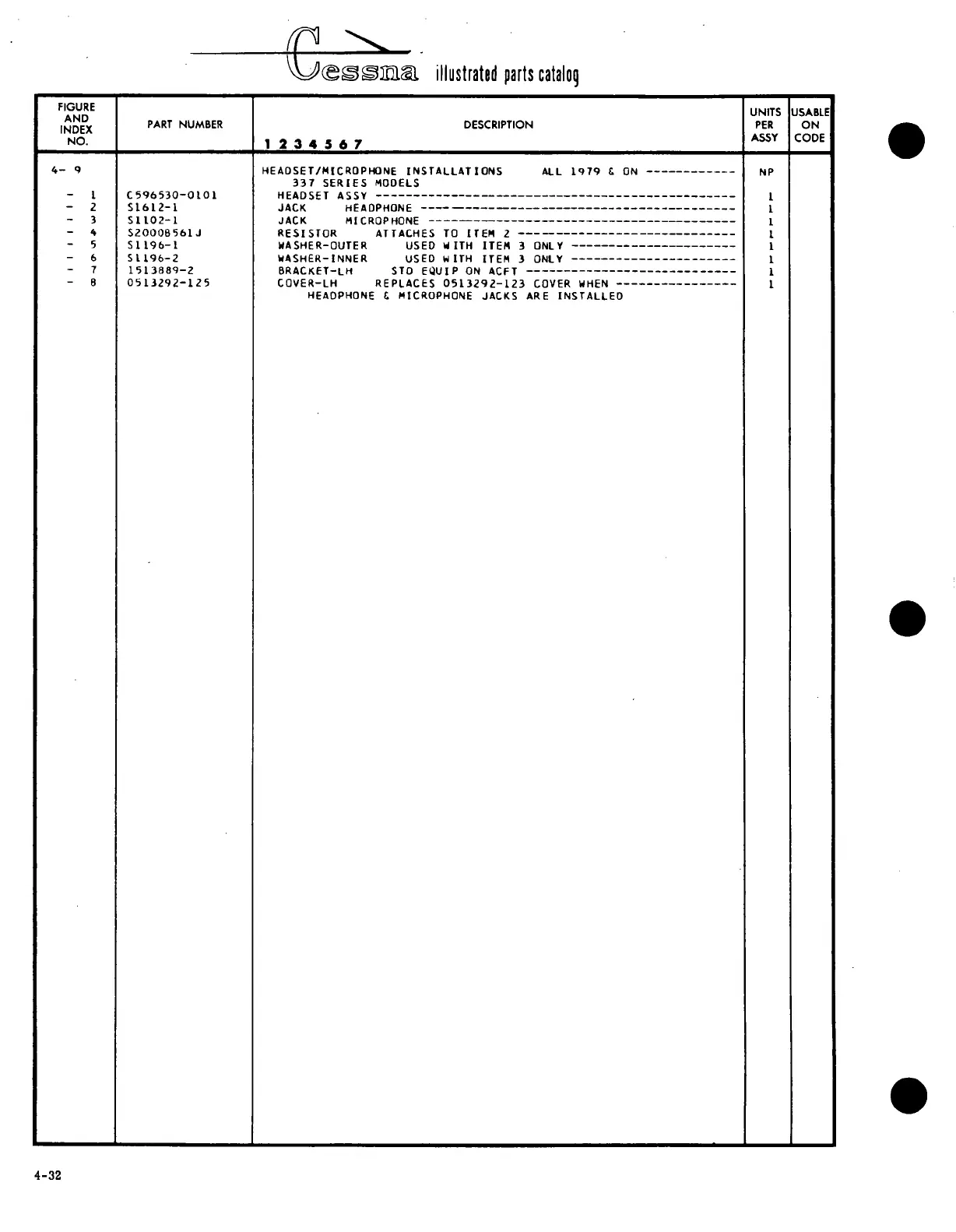

Cessna
illustrated
parts
catalog
DESCRIPTION
1234567
C596530-0101
S1612-1
S1102-1
S2000B561J
S1196-1
S1196-2
1513889-2
0513292-125
HEADSET/MICROPHONE
INSTALLATIONS
ALL
1979 & ON
- NP
337 SERIES
MODELS
HEADSET ASSY
-------------
JACK HEADPHONE
-----------------
JACK
MICROPHONE
1
RESISTOR
ATTACHES TO ITEM 2 ---
-
WASHER-OUTER
USED WITH ITEM
3 ONLY
1
WASHER-INNER
USED WITH ITEM
3 ONLY ----------------------
1
BRACKET-LH STD EQUIP ON ACFT ------------- 1
COVER-LH REPLACES
0513292-123 COVER WHEN ---------------
1
HEADPHONE
& MICROPHONE
JACKS
ARE INSTALLED
FIGURE
AND
INDEX
NO.
PART NUMBER
4- 9
1
2
3
4
5
6
7
8
UNITS USABLE
PER
ON
ASSY CODE
