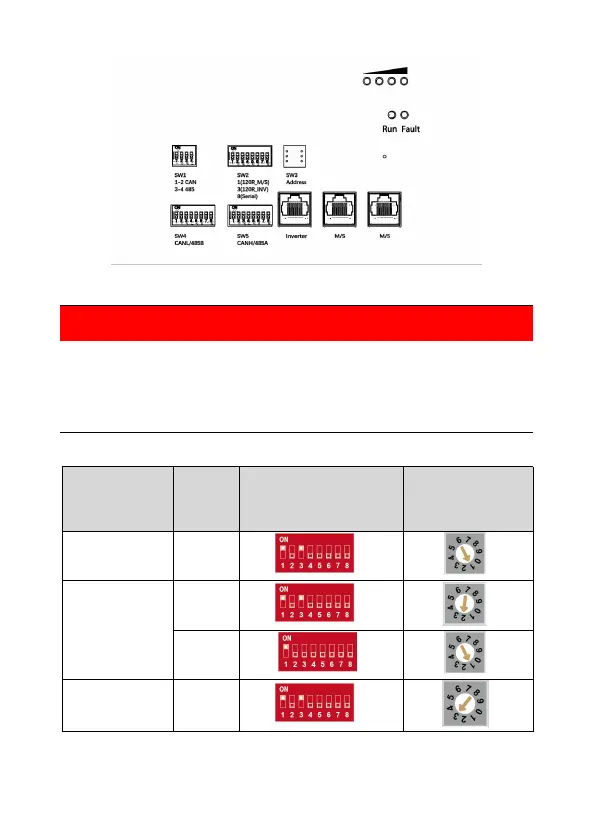

For series connection, please make sure the SW2 DIP switch is selected as this type.
WARNING
Please make sure the SW2 DIP switch is selected correctly. If the battery is connected
in parallel mode, and SW2 DIP8 is selected at ON position, it probably leads to serious
faults, even dangerous. Meanwhile, if battery is connected in series mode, and SW2
DIP8 is selected at OFF status, serious faults and hazards probably occur.
Connected
battery number
Group
Set of SW2
Parallel connection
Address Set (SW3)
1
—
13
1
2
Master
13
2
Slave
1
1
3
Master
13
3
