Product:
SAM-3000 / SAM-1950
Revision 1.0– Issue September 2015
5.2 Design and operating mode
The SAM-3000 is designed as a plug-in module for 19“ racks or 19“ cabinets.
• Aluminiumhousingwithmountedfrontplate
• ControlPCB
• Solenoidvalvemanifold
• Outletmanifold
• Dependingontheexpansionstagebulkheadunions,owmetersandowregulators

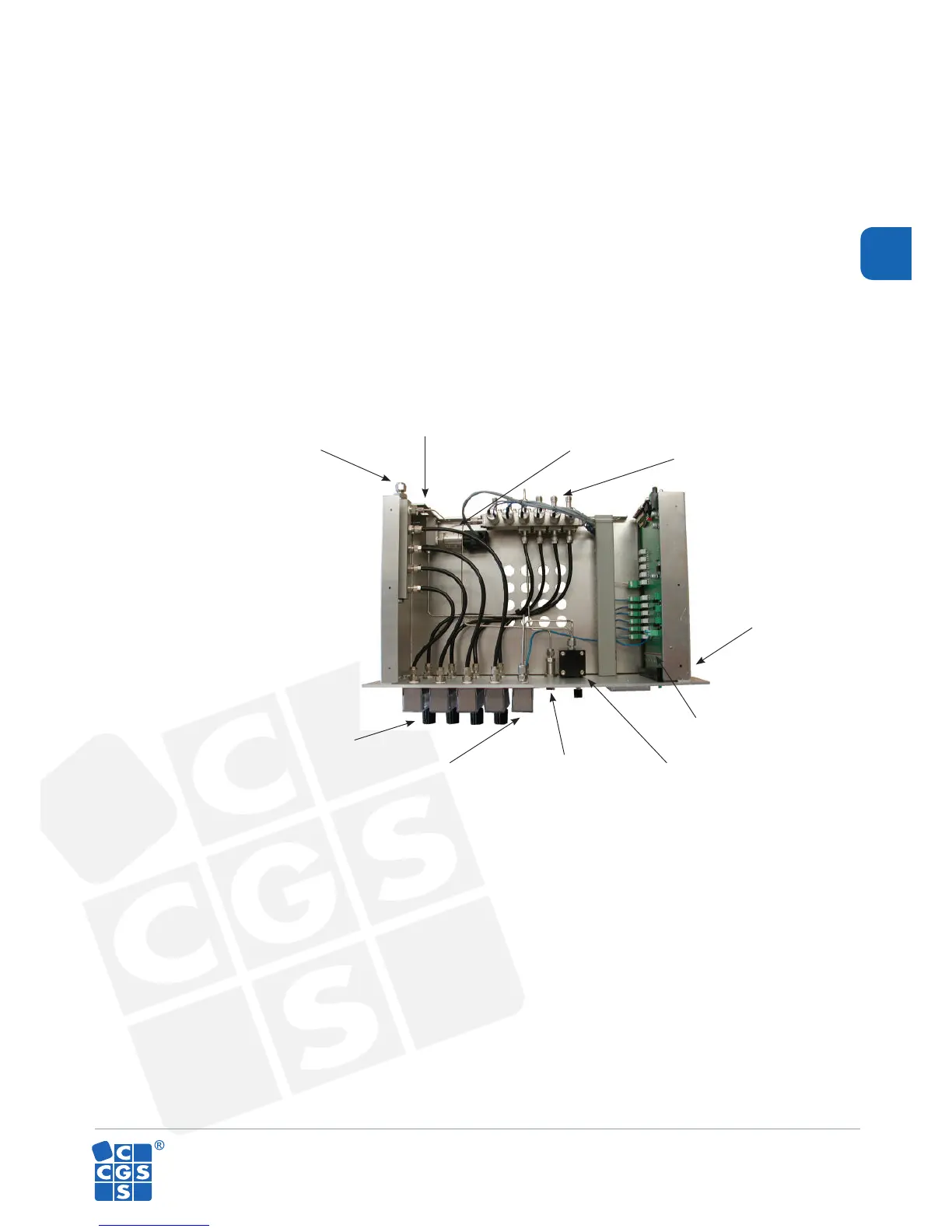

Bypass-Outlet
Outlet to analyzer
Pressure transmitter
Solenoid valve manifold
Housing with
front plate
Control PCB
Flow controller
Quick connector
Flow low indicator
Flow meters with
needle valve
In the main case the inner of the module includes a solenoid valve manifold with selectable tubings in
different materials (metal, plastic or mixture of both) available. To control the solenoid valves and to
evaluate the signals is a control PCB integrated. The top of the LED’s the Pushbuttons are implemented in
the front plate of the SAM-3000. Depending on expansion stage there are bulkhead unions, flow meters
and flow regulators monted at the front plate.
