Product:
SAM-3000 /SAM-1950
Revision 1.0 – Issue September 2015

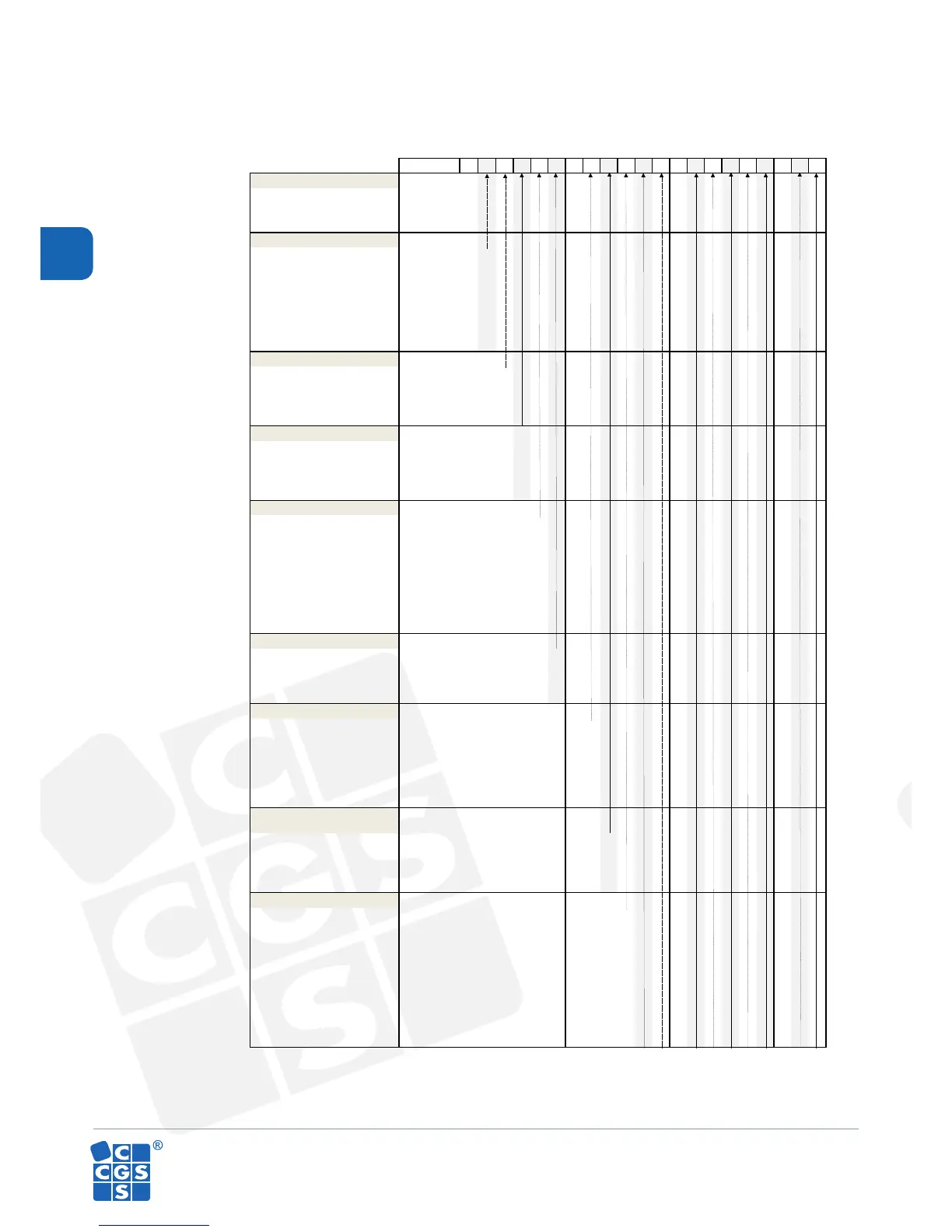

10 Device configuration (order code)
- - - -
Cabinet switching module type
SAM-3000
SAM-1950
Gas inlets
Quanty of inlets
1
Quanty of inlets
2
Quanty of inlets
3
Quanty of inlets
4
Quanty of inlets
5
Quanty of inlets
6
Calibraon gas
Quanty
0
Quanty
1
Quanty
2
Inlet filter
Without inlet filter
0
Input filter 20µm
2
Input filter 50µm
5
Solenoid valve design
Solenoid valve STD
S
Solenoid valve for moisture
analysis
H
Solenoid valve (NC) for oxygen
applicaon
O
Solenoid valve (NC) for moisture
analysis and oxygen applicaon
Y
Manual measuring input
Without manual measuring inlet
0
manual measuring inlet
1
Bypass flow meter
Quanty of bypass flow meter
0
Quanty of bypass flow meter
1
Quanty of bypass flow meter
2
Quanty of bypass flow meter
3
Quanty of bypass flow meter
4
measuring range bypass flow
meter
15 - 150 l/h
A
25 - 250 l/h
B
Others
C
Flow and pressure control
without
A
Flow controller 18l/h
B
Flow controller 96l/h
C
Flow controller made of SS 96l/h
D
Needle valve
E
Pressure reducer
F
Back pressure regulator with flow
meter
H
