547095D1 C Rev A-25
SAFETY
FIG. 41: Location of signs for DEF, Secondary Fuel
Filter, and Primary Fuel Filter.

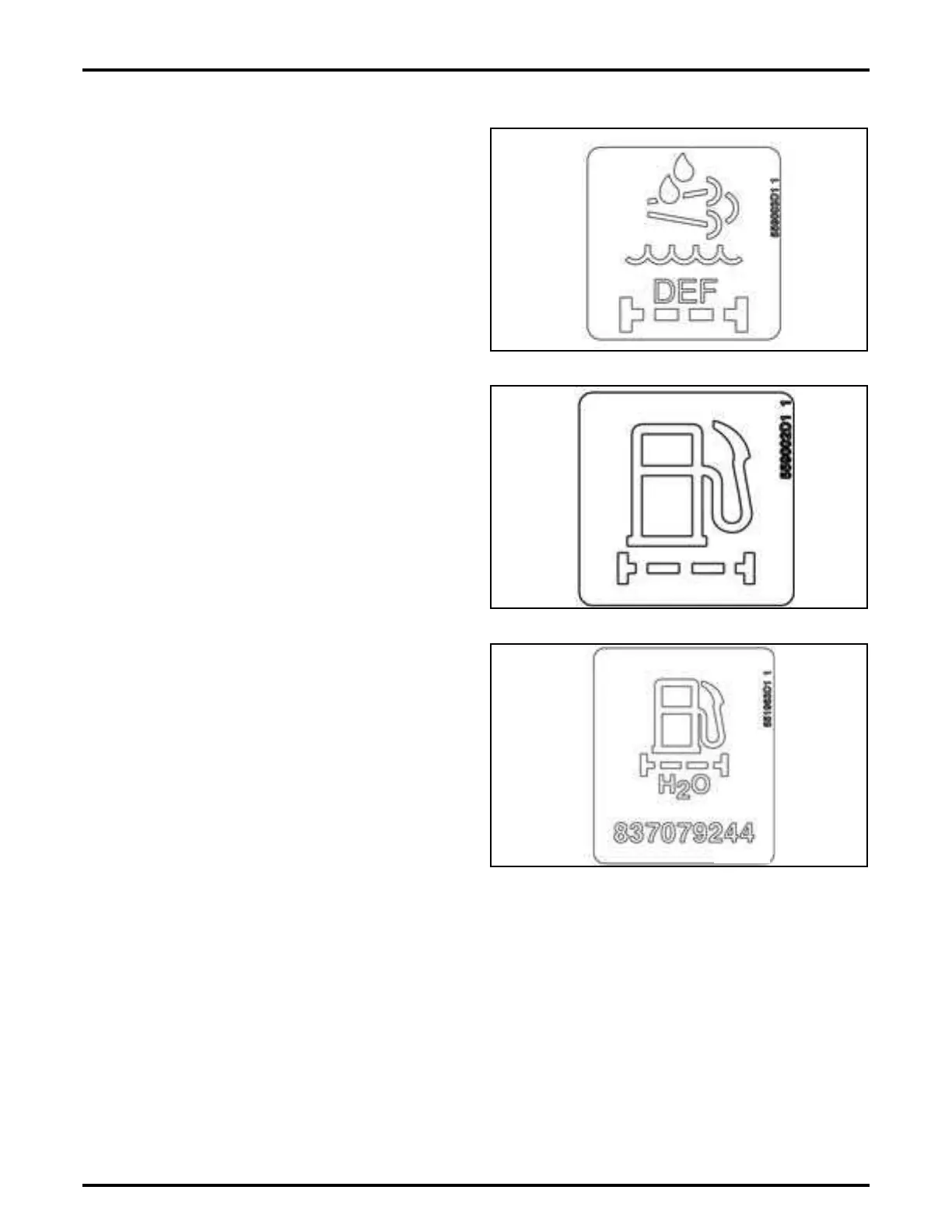

FIG. 42: DEF filter sign (1) is located on the left side of
machine in front of the supply module.
FIG. 43: Fuel filter sign (2) is located on secondary fuel
filter on left side of machine.
FIG. 44: Seperator filter sign (3) is located on the
primary fuel filter.
FIG. 42
FIG. 43
FIG. 44
