7 . ACCESSORIES AND OPTIONS
7.43
Challenger MT500B EU
7
42. Indicates if the DUAL CONTROL is in the furrow start
or end mode
43. Indicates the position of the front linkage control (e.g.:
floating position)
44. Front linkage position value
45. Rear linkage position value
• Pressing the key «
6
switches the DUAL to ON or OFF
when the window is active (green icon 39 Fig. 64).
• Pressing the key
«
5
returns the user to the FRONT
DUAL CONTROL configuration menu (Fig. 68).
• To return to the window (Fig. 67), press the key «
2
when the window (Fig. 68) is active.

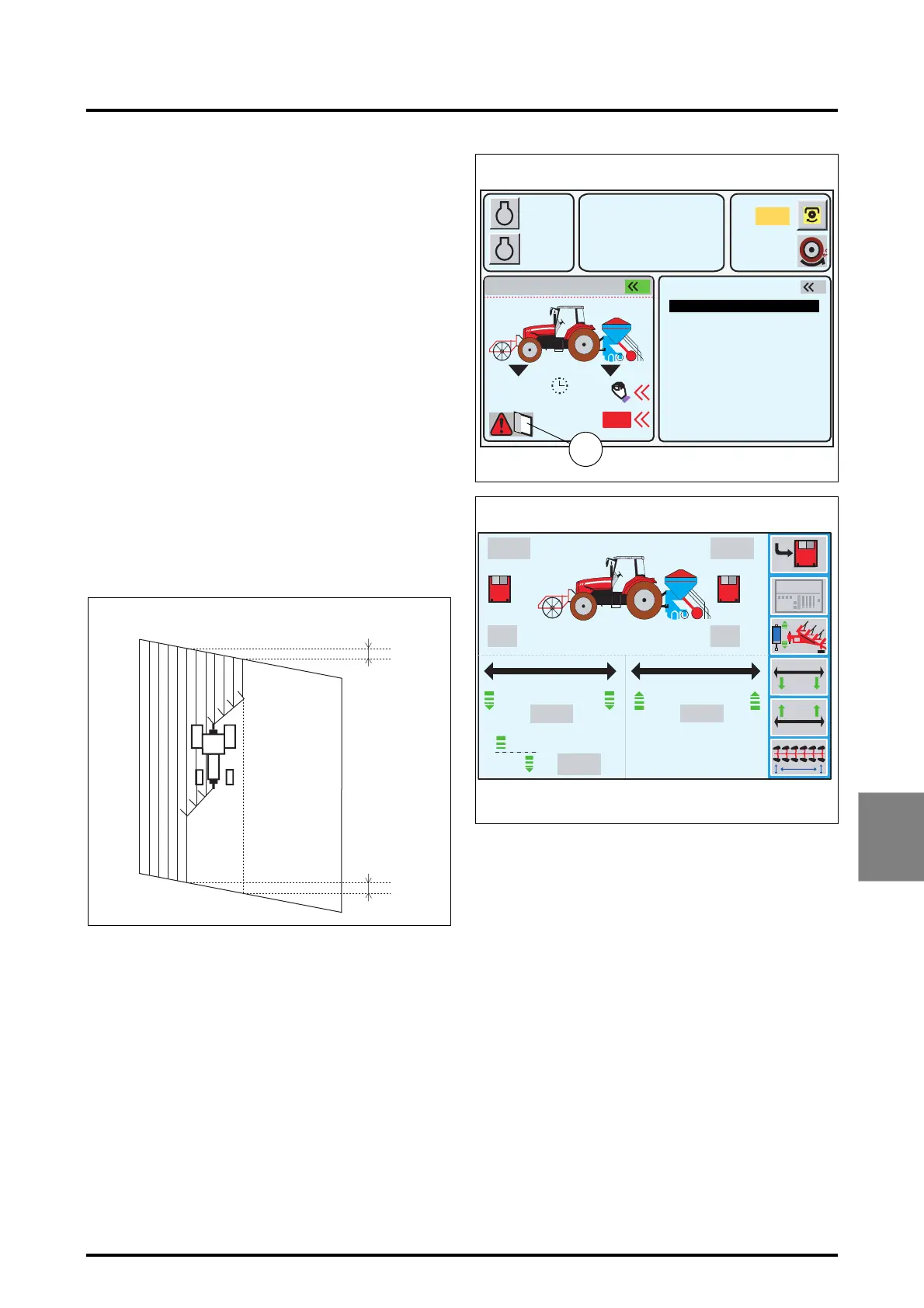

NOTE: If, in the case of a field with points (Fig. 66), the
point correction lengths are different from 0 (to be
defined in the right-hand POINTS window) and if this
POINTS window is not displayed on the right-hand
screen, then a POINT WARNING icon (46 Fig. 67) is dis-
played to alert the driver to the fact that the lengths will
be modified when the DUAL CTRL is set to ON.
NOTE: For data description and settings (Fig. 68), see
section 7.8. (DUAL CONTROL application).
B
A
Z3A-807-08-04-A
Fig. 66
A
B
1000
2000
790
5.3
10% M
5%
540
2
2000
OFF
5 % 73 %
1
Z3A-800-08-04-B
Fig. 67
GEARBOX SETTINGS
ACTIVE MEMORY
HEADLAND
POINTS
EHS VALVES 5-6
EHS VALVES 1-4
FRONT DUAL CTRL
RPM
KPH
46
1920
42.0
100%100%
100%
0%
0%
0%
100%
0%
100%
100%
6.0
6.0
6.0
6.0
Z3A-801-08-04-B
Fig. 68
m
m
m
m
