On b/w screens:
Each icon representing a spool valve has a number refer-
ence. These numbers correspond to a colour on the EHS
valve controls:
- 1 : green EHS valve control
- 2 : red EHS valve control
- 3 : black EHS valve control
- 4 : yellow EHS valve control
- 5 : blue EHS valve control
Each sequence is stored in the DATATRONIC 3 active
memory. Up to 7 sequences can be memorised:
- 1 sequence can be permanently stored in the HEAD-
LAND application,
- 6 sequences in the MEMORIES application, by
assigning them an implement name (see section 7.3
MEMORIES Application).

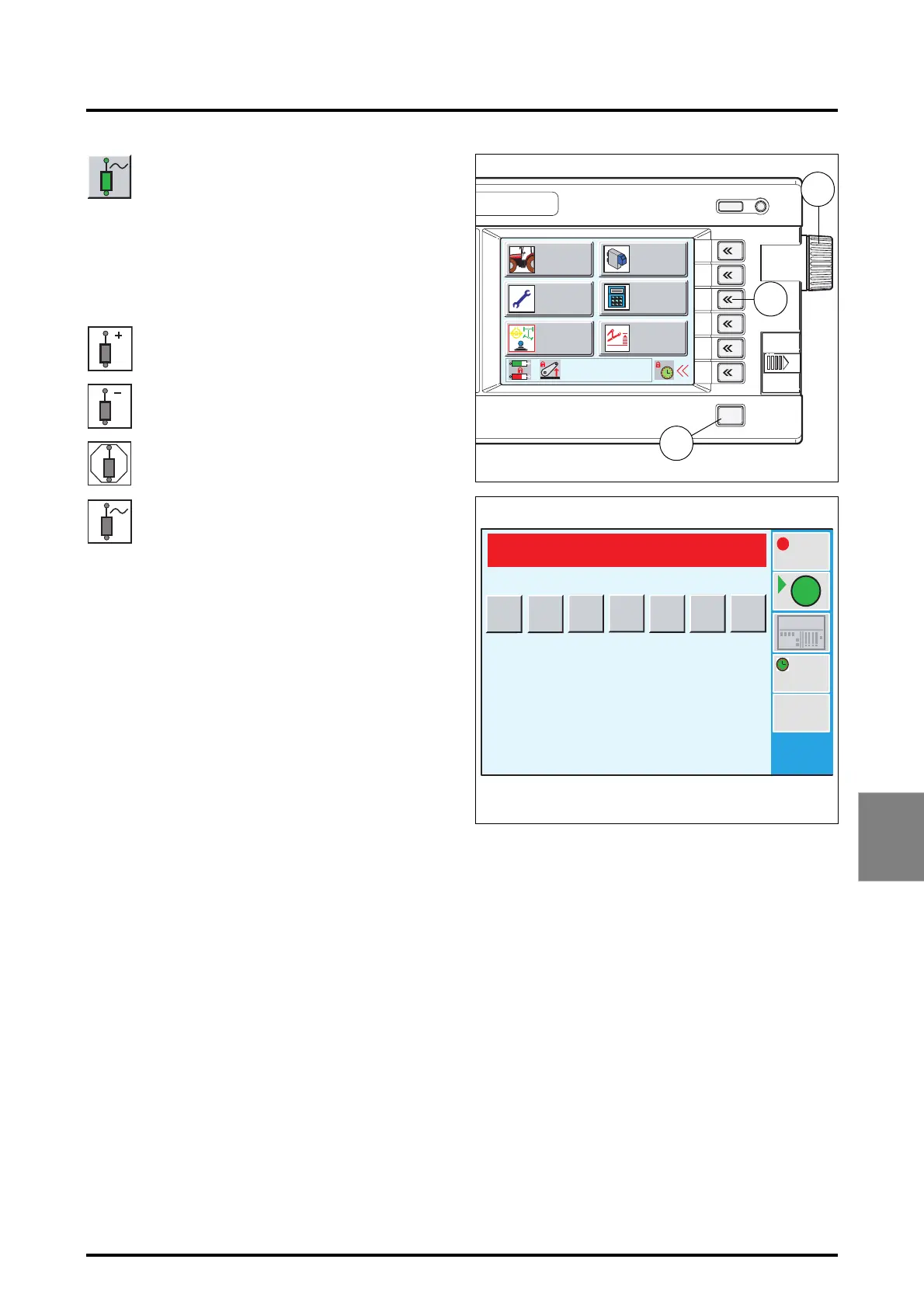

To start the HEADLAND application (Fig. 100):
• Rotate the encoder (1) to the HEADLAND application
and press the encoder once the active function is high-
lighted by red text and a red rectangle around the icon.
Or press the key
«
3
(2). The window (Fig. 101) is dis-
played.
• To exit an application, press the ESC key (3).
Activate spool valve control in floating position
Activate spool valve control (e.g.: ram rod exten-
sion)
Activate spool valve control (e.g.: ram rod retrac-
tion)
Activate spool valve control in neutral position
Activate spool valve control in floating position
1
1
STOP
1
1
1
2
3
4
5
6
ESC
Z3A-818-08-04
Fig. 100
WORK
SETTINGS
HEADLAND DUAL CTRL
MEMORIES
EHS VALVES
2
1
3
REC
1920
42.0
1.2
EDIT
GO
......
Z3A-794-08-04-B
Fig. 101
