4 . MAINTENANCE AND ADJUSTMENTS
4.15
Challenger MT500B EU
4

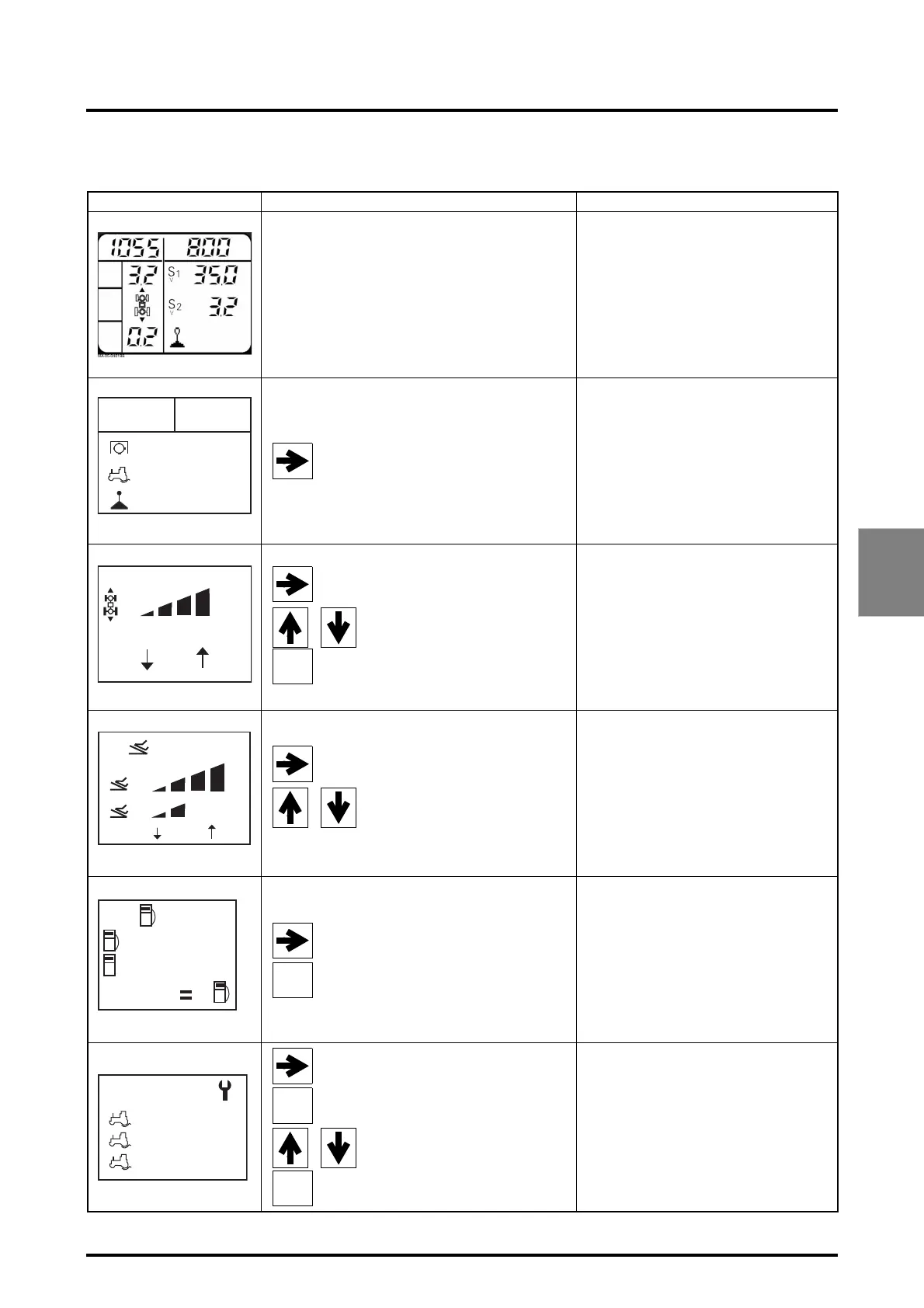

Screens Access Function
Starting the tractor
Start-up screen
Displays the restart speeds, the SV1 and SV2
speeds, engine supervisor, PTO, pedal mode,
eco mode or lever mode.
To display from the start-up screen.
Work screen
Displays memorised engine speeds, PTO speed,
actual wheel slip rate,lever mode, pedal mode
(power or eco), self-propelled mode and SV1 and
SV2 speeds.
To display from the previous screen
To increase or decrease the value
Allows a delay (1.5 seconds) to be
authorised or not when reversing direction of
travel.
Reverse shuttle sensitivity
Allows to adjust the response time when shifting
direction of travel
The delay starts once the reverse shuttle lever is
activated If the delay is authorised, declutching
takes place 1.5 seconds after the lever is acti-
vated. If not authorised, declutching takes place
as soon as the lever is activated.
To display from the previous screen
To increase or decrease the value
Pedal mode sensitivity screen
Used to adjust acceleration (+) and deceleration
(-) sensitivity in pedal mode operation.
To display from the previous screen
Press 5 seconds to reset
Fuel used screen
Indicates fuel consumed:
0: Quantity of fuel consumed since last reset.
T: total fuel consumed. This value cannot be
modified or reset
To display from the previous screen
Press to enter the settings menu. The symbol
appears.
To set the required wheel slip per-
centage value
Allows to exit the settings screen
Wheel slip screen (optional)
Enables the max. allowable slip to be defined and
displays the current slip setting.
