Chamberlain 3130 - Installation Parts; Rail Assembly Parts; Repair Parts

33
1
6
2
3
5
4
7
9
3
NOTICE
7
UP
CEILING
M
OUNT ONLY
10
14
8
1
11
12
LOCK
LIGHT
4
6
5
6
2
13
KEY PART
NO. NO. DESCRIPTION

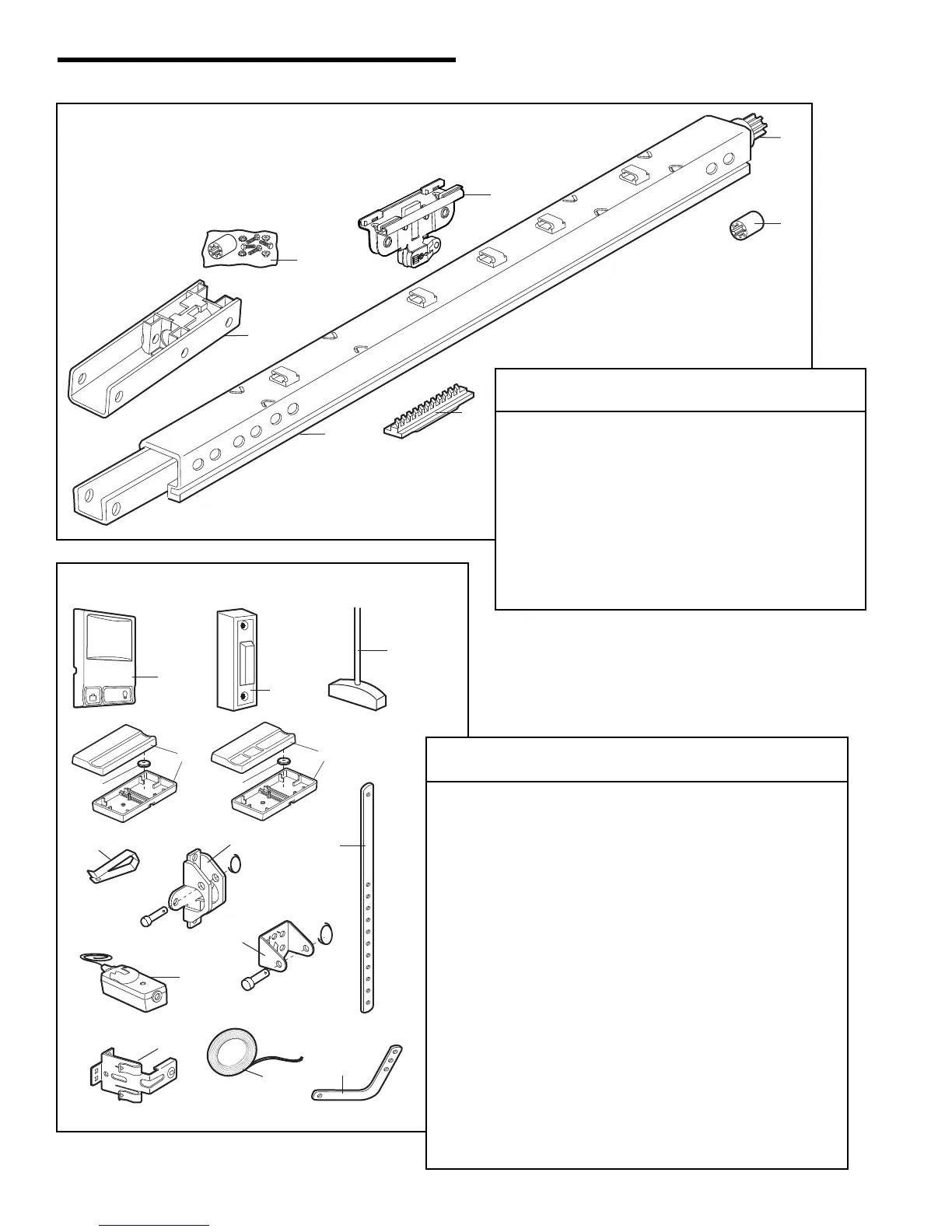

1 41A5273-1 Multi-function door control (3240)
2 41A4166 Lighted door control button (3130)
3 41A2828 Emergency release rope & handle
4 371LM 1-button remote control (3130)
5 373LM 3-button remote control (3240)
6 10A20 3V 2032 Lithium battery (1 required)
7 29B137 Visor clip
8 41A5047 Door bracket w/clevis pin & fastener
9 178B34 Straight door arm section
10 41A4353 Header bracket w/clevis pin & fastener
11 41A5034 Safety sensor kit: receiving and sending
eyes with 3' (.9 m) 2-conductor bell wire
attached
12 41A5266-1 Safety sensor bracket
13 41B4494-1 2-Conductor bell wire: white & white/red
14 178B35 Curved door arm section
NOT SHOWN
41A4675-7 Installation hardware bag (see page 5)
114A3331 Owner’s manual
114A3331SP Owner’s manual-Spanish
Installation Parts
REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 41A6353 Hardware bag
(includes sprocket coupling)
2 81C275 Rack
3 41A6262 Complete trolley assembly
4 3077SD Screw Drive one-piece rail 7' (2.1 m)
5 41A4836 Drive sprocket kit
6 25C20 Acolpe
7 41A6312 Rail End Bracket
NOT SHOWN
28A143 Rail Wire Clips
