Chamberlain BILT B6713T User Manual

10
Assembly

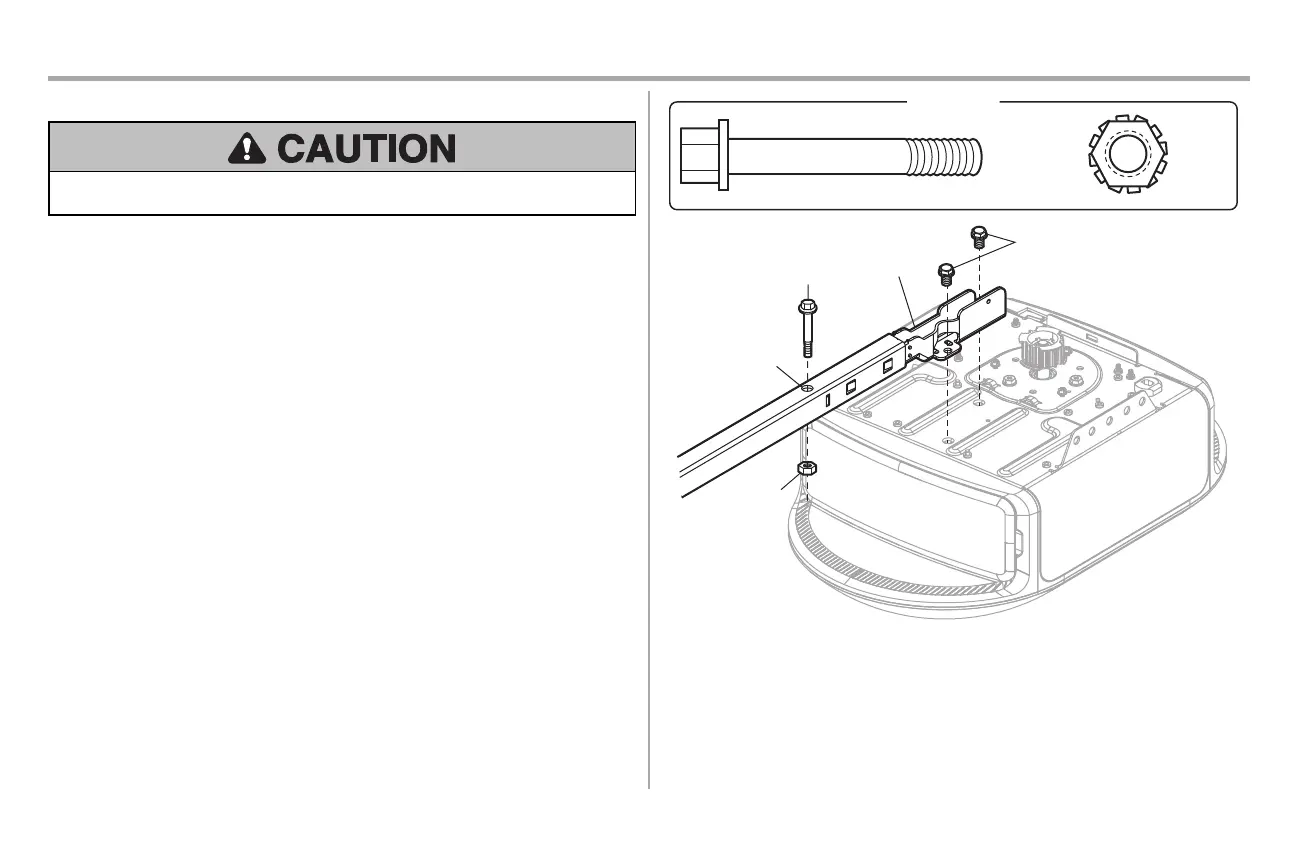

STEP 2 Fasten the Rail to the Motor Unit
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of
the opener.
1. Insert a 1/4"-20 x 1-3/4" bolt into the cover protection bolt hole on the back end of the rail as
shown. Tighten securely with a 1/4"-20 lock nut. DO NOT overtighten.
2. Remove the bolts from the top of the motor unit.
3. Use the carton to support the front end of the rail.
4. Place the “U” bracket, flat side down onto the motor unit and align the bracket holes with the bolt
holes.
5. Fasten the “U” bracket with the previously removed bolts; DO NOT use any power tools. The use of
power tools may permanently damage the garage door opener.
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
HARDWARE
Bolts (Mounted in the
garage door opener)
Bolt
Lock Nut
Cover Protection
Bolt Hole
“U” Bracket

Chamberlain BILT B6713T Specifications

General

Drive System	Belt Drive
Battery Backup	Yes
Voltage	120V
Safety Features	Safety Sensors
Smart Home Compatibility	Google Assistant
Remote Controls	2 Included
Connectivity	Wi-Fi
Warranty	Lifetime (Motor & Belt), 5-Year (Parts), 1-Year (Battery)
