Chamberlain BILT B6713T User Manual

29
Installation

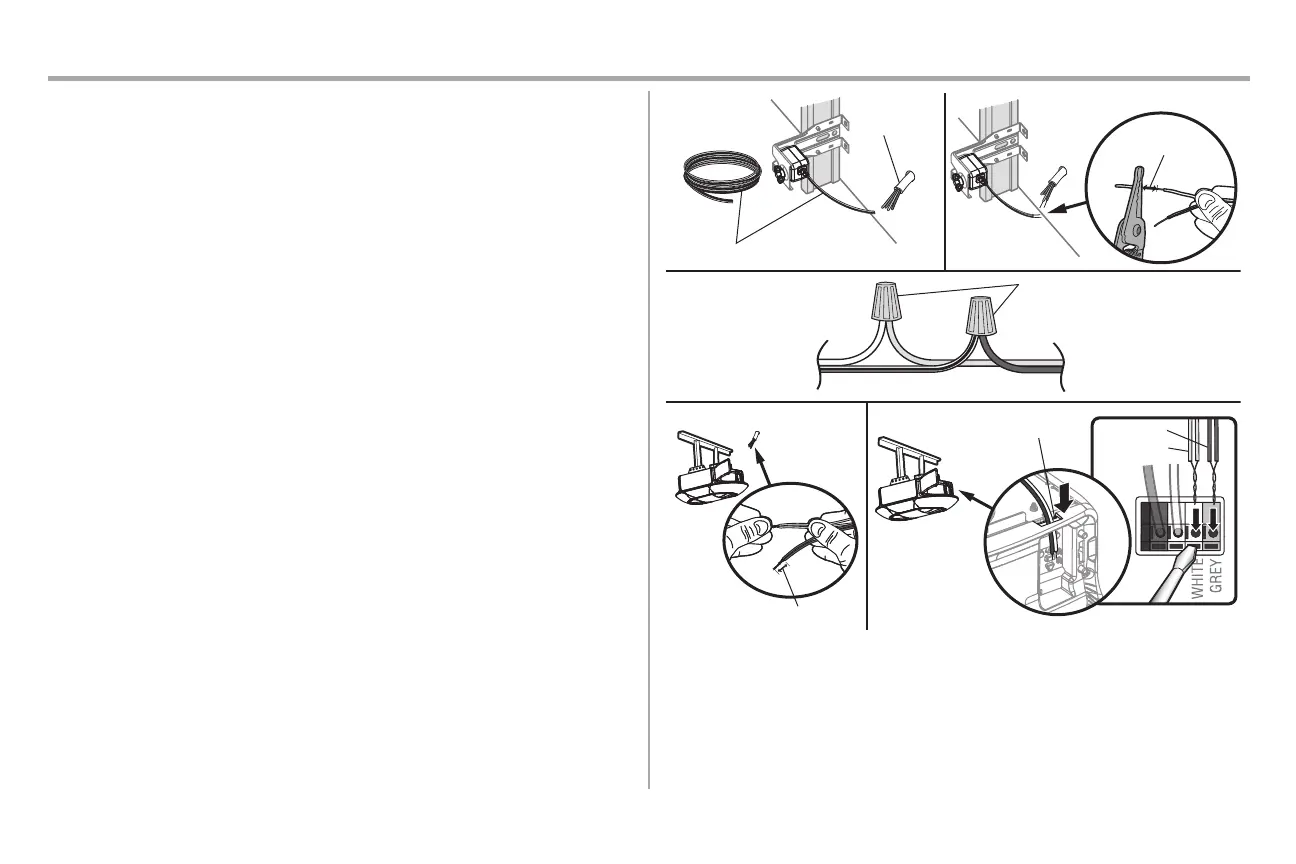

STEP 13 Wire the Safety Reversing Sensors (continued)
OPTION B - PRE-WIRED INSTALLATION
1. Cut the sensor wires, making sure there is enough wire to reach the pre-installed wires from the
wall.
2. Separate the sensor wires and strip insulation from each end. Choose two of the pre-installed wires
and strip insulation from each end. Choose the same color pre-installed wires for each sensor.
3. Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors
correspond for each sensor.
4. At the garage door opener, strip the end of the wires previously connected to the sensors. Twist the
like-colored wires together.
5. Using a screwdriver, push in the terminal tabs, and insert the wire color connected to the sensor's
white wire into the white terminal. Insert the other wire color connected to the sensor's white/black
wire into the grey terminal.
Safety reversing sensor wires
White
White/Black
Yellow (for example)
Purple (for example)
Wire nuts (not provided)
Pre-installed wires
Safety reversing
sensor wires
1
3
4
7/16" (11 mm)
2
5
Purple
Yellow
Pre-installed
wires
Pre-installed wires
Wire channel
7/16" (11 mm)
Yellow
Purple

Chamberlain BILT B6713T Specifications

General

Drive System	Belt Drive
Battery Backup	Yes
Voltage	120V
Safety Features	Safety Sensors
Smart Home Compatibility	Google Assistant
Remote Controls	2 Included
Connectivity	Wi-Fi
Warranty	Lifetime (Motor & Belt), 5-Year (Parts), 1-Year (Battery)
