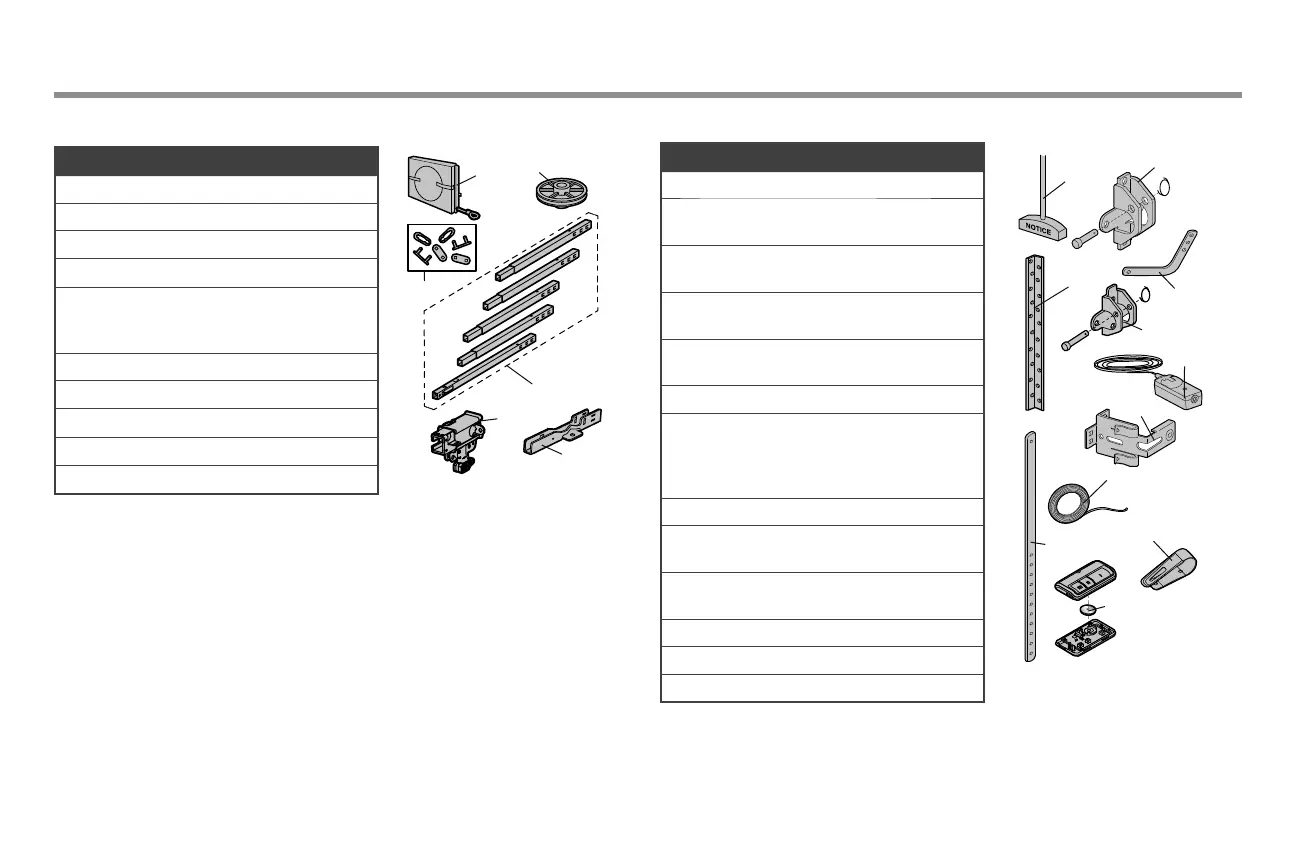

Repair Parts
Rail Assembly Parts Installation Parts
1
3
4
2
5
6
7
8
9
10
11
Description Part Number
1 Chain/Cable 041A5615
2 Pulley Kit K144C0056
3 Master Link 004A1008
4 Rail 041A5665
5 Trolley Assembly
Includes: Clevis Pin (1),
Ring (1)
041C5141-1
6 “U” Bracket 041D0598-1
Not Shown
Wear Pads 041A7276
Hardware Bag 041A7920-1
Threaded Shaft K109B0018
Description Part Number
1 Curved Door Arm 041B0035B
2 Door Bracket with Clevis
Pin and Fastener
041A5047-1
3 Emergency Release Rope
and Handle
041A2828
4 Header Bracket with
Clevis Pin and Fastener
041A5047-2
5 Remote Control
Visor Clip
K029B137
6 Safety Sensor Bracket 041A5266-3
7 Safety Sensor Kit
Receiving and
sending sensors with
2-conductor wire
041A5034
8 Straight Door Arm 4178B0034B
9 White and Red/White
Wire
041B4494-1
10 3V CR2032 Lithium
Battery
K010A0020
11 Hanging Brackets 012B0776
Not Shown
Owner’s Manual 114A5193
1
3
2
4
6
5
