Chamberlain C455 User Manual

9
Assembly

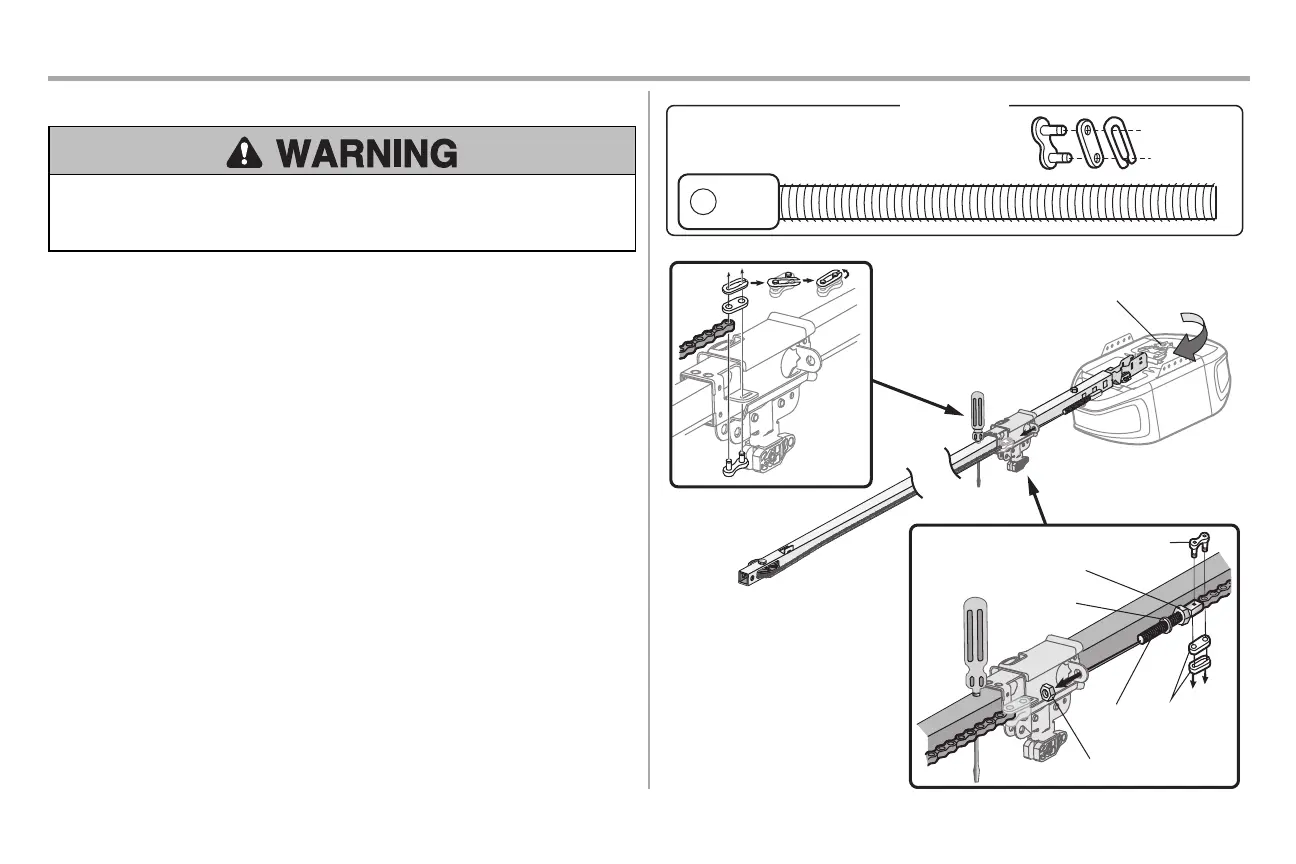

STEP 4 Install the chain
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
l ALWAYS keep hand clear of sprocket while operating opener.
l Securely attach sprocket cover BEFORE operating.
1. Pull the chain around the idler pulley and toward the trolley.
2. Connectthe chain to the retaining slot on the trolley,as shown. (Figure 1)
a. Push pins of master link bar through chain link and trolley slot.
b. Push master link cap over pins and pastpin notches.
c. Slide the closed end of the clip-on spring over one of the pins.Push the open end of
the clip-on spring onto the other pin.
3. With the trolley againstthe screwdriver, dispense the remainder of the chain along the rail
toward the motor unit around the sprocket and continuing to the trolley assembly.The sprocket
teeth mustengage the chain. (Figure 2)
4. Checkto make sure the chain is not twisted, then connect it to the threaded shaft with the
remaining master link.
5. Thread the inner nut and lockwasher onto the trolley threaded shaft.
6. Insert the trolley threaded shaftthrough the hole in the trolley.Be sure the chain is not twisted.
(Figure 3)
7. Loosely thread the outer nut onto the trolley threaded shaft.
8. Remove the screwdriver.
Sprocket
Figure 1
Figure 2
HARDWARE
Master
Link
Threaded Shaft
Threaded
Shaft
Outer Nut
Inner Nut
Lock Washer
Master Link
Master
Link
Figure 3
a.
b.
c.
