Carton Inventory
Your garage door opener is packaged in one carton which contains the motor unit and all parts
illustrated below.Accessories vary depending on the garage door opener model purchased. Depending
on your model, other accessoriesmay be included with your garage door opener. Instructionsfor these
accessories will be attached to the accessory and are not included in this manual.Ifanything ismissing,
carefully checkthe packing material. Hardware for assembly and installation is shown on the nextpage.
Save the carton and packing material until the installation and adjustment iscomplete. The images
throughout this manual are for reference onlyand your product may lookdifferent.

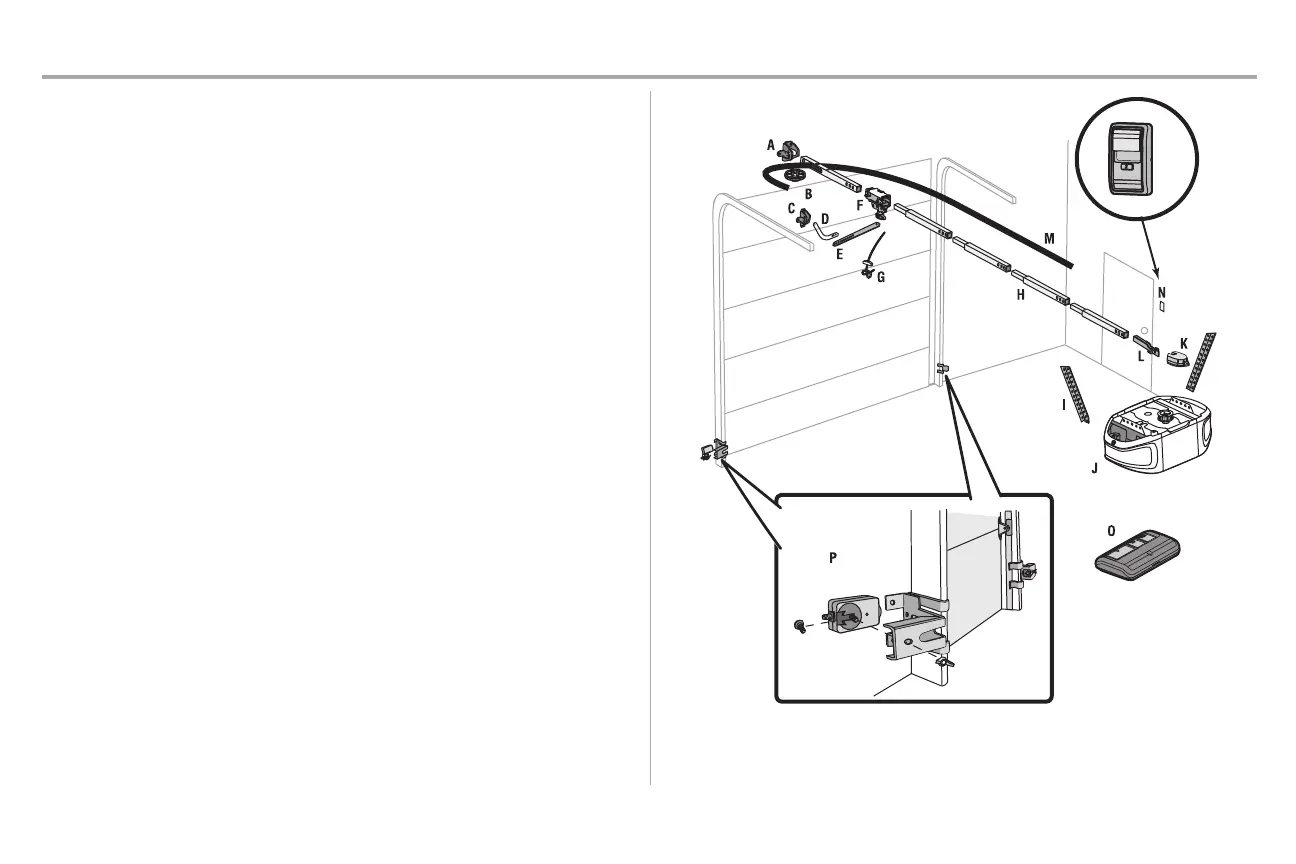

A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergencyrelease rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside the front rail section)
J. Garage door opener (motor unit)
K. Sprocketcover and screws
L. “U” bracket
M. Belt
N. Door control
O. Remote control
P. The Protector System
®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor
(1), Receiving Sensor (1), and SafetySensor Brackets (2)
NOT SHOWN
White and red/white wire
Owner's manual
