20
3
5
2
6
7
9
17
15
19
12
4

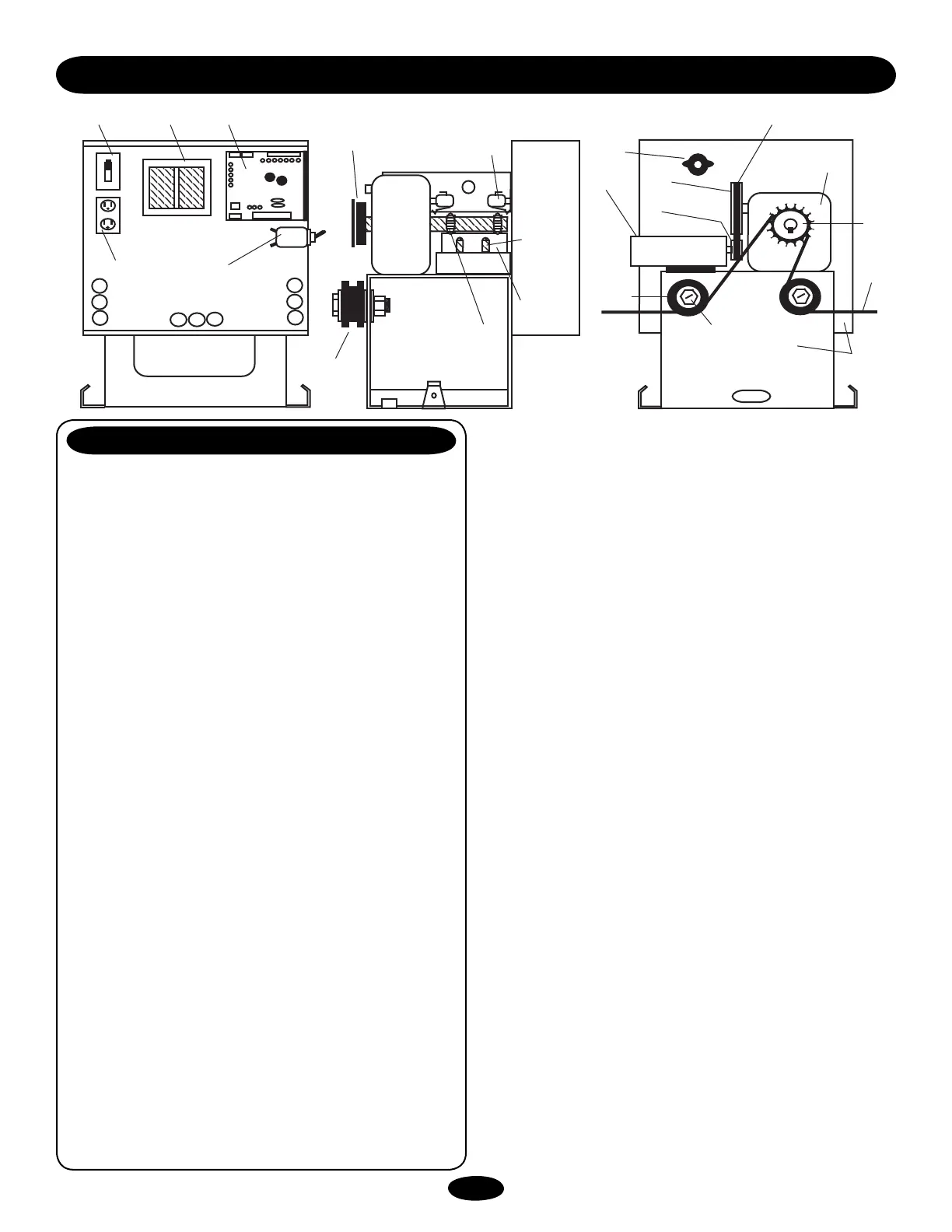

REAR VIEW
1
13
8
14
16
FRONT VIEW
10
11
18
9
17
3
DCS
1/2 HP
20
SIDE VIEW
REPAIR PARTS
INDIVIDUAL PARTS
ITEM PART # DESCRIPTION
1 MS001 Controller - CPU
2 MS003 1/2 HP High Torque Motor 24 Vdc
3 MS005 Gear Reducer 10:1
4 MS006X 1/4" Yellow Zinc Chassis (frame)
5 MS007 Drive Belt
6 MS010 Reducer Pulley 5"
7 MS009 Motor Pulley 2"
8 MS351 Motor Breaker/Disconnect
9 MS041 Drive Gear
10 MS043 Limit Nuts
11 MS013 Detent Plate
12 MS014 Siren (100 db)
13 MS015 Transformer (120/230 Vac - 24 Vac)
14 MS016 120 Vac Duplex Outlet (120 Vac Only)
15 MS018 Idler Pulley Bolt, Washer and Nut
16 MS019 120 Vac On/Off Switch
17 MS040 Idler Pulley (UHMW)
18 MS044 Limit Switch
19 MS202 #41 Nickel Plated Drive Chain
(10' coils, 2 required)
20 MS206 Compression Spring for Detent Plate
NOT SHOWN
* 73A3 Filter Module
* K74-33888 Surge Suppressor
* MS002 J5 Connector (on PCB)
* MBAT 12 Vdc 7AH Battery
2 required (included)
* MS017 Bolt and Nut (4) Reducer
* MS021 Removable Accessory Shelf
* MS023 Window, Limit Cover (with bend)
* MS020X Unit Cover
