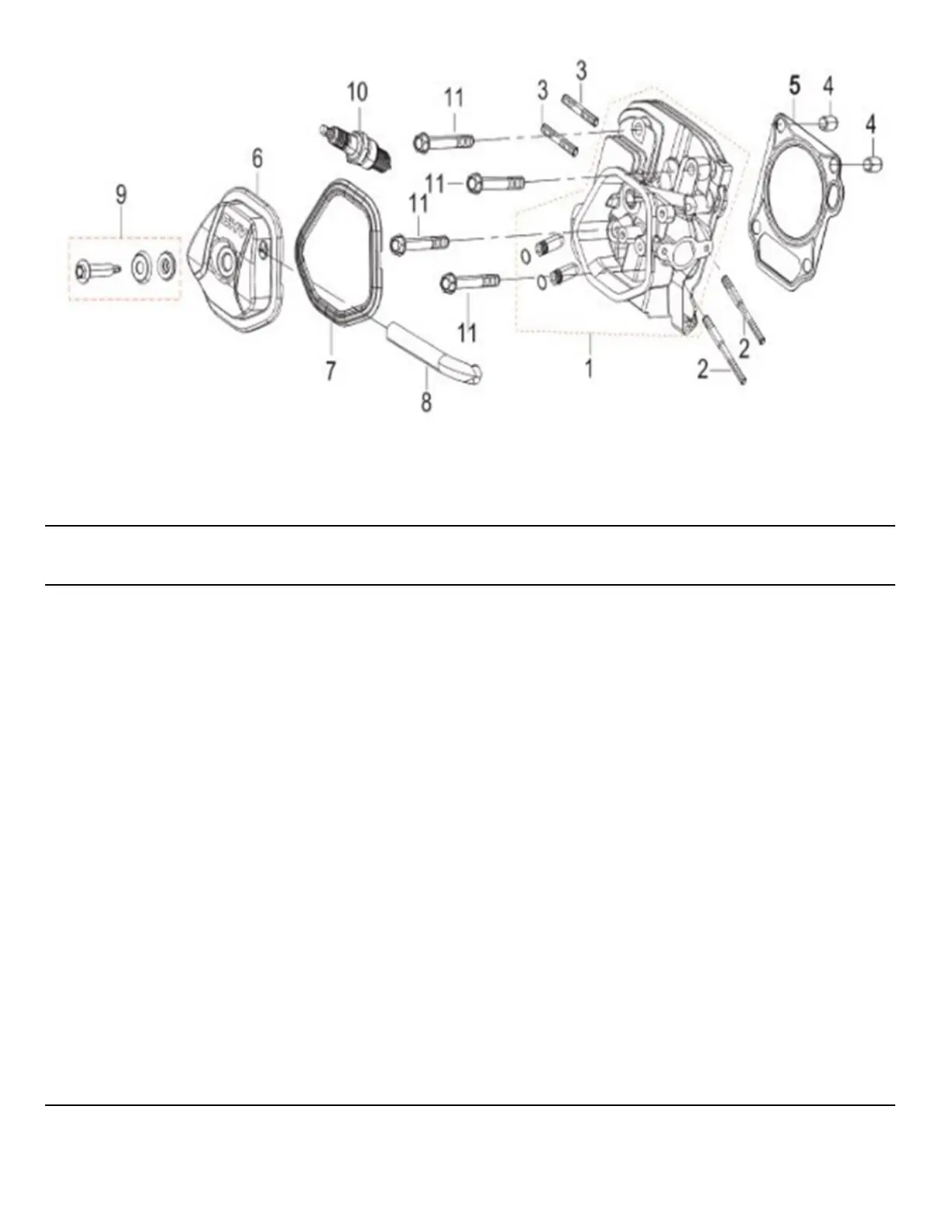

Head Subassembly, Cylinder/Spark Plug

Ref # Part # Description Qty

1 CH78211 HEAD SUBASSEMBLY, CYLINDER 1

2 CH78212 STUD 2

3 CH78213

STUD

2

4 CH78314 PIN 2

5 FX390-005

GASKET

1

6 CH78216

CYLINDER HEAD

1

7 CH78217

HEAD COVER GASKET

1

8 CH78218

BREATHER TUBE

1

9 CH78219

BOLT

1

10 CH78307

SPARK PLUG

1

11 CH 78221

BOLT

4
