Champion 200959 - Control Panel Layout and Functions

200959 - 2000W DUAL FUEL INVERTER GENERATOR
CONTROLS AND FEATURES
13

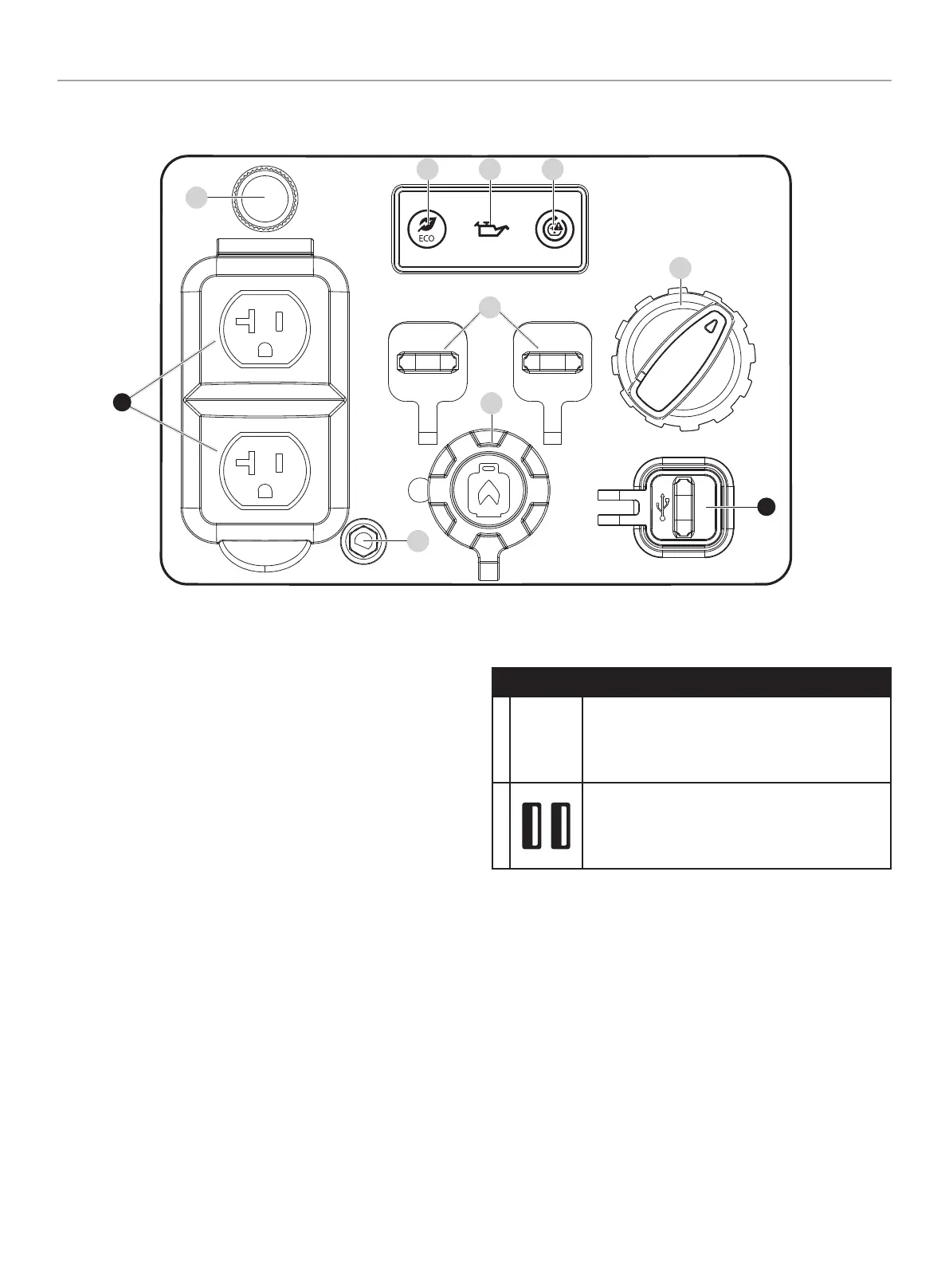

Control Panel
1. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
2. Economy Mode Button – Enables/disables automatic idle
control.
3. Low Oil Warning Indicator Light – When ON, engine will
shut down and not run. Check oil level.
4. AC Overload Reset Button – Used to re-energize
receptacles after overload fault.
5. Fuel Selector Dial – Used to turn on gasoline or propane
(LPG) fuel source, operate the choke plate, and stop the
engine.
6. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
7. LPG Inlet – Used to connect LPG fuel source to generator.
8. Ground Terminal – Consult an electrician for local grounding
regulations.
RECEPTACLES
A
A
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
B
(2×) 5V DC, 2.1A (USB Type-A)
Each port may be used to supply a maximum of
5V, 2.1A to power cellphones, laptops, tablets,
and similar devices.
1
5
7
8
A
B
432
6
