aXis CONTROLLER HOME STANDBY GENERATOR
INSTALLATION
34

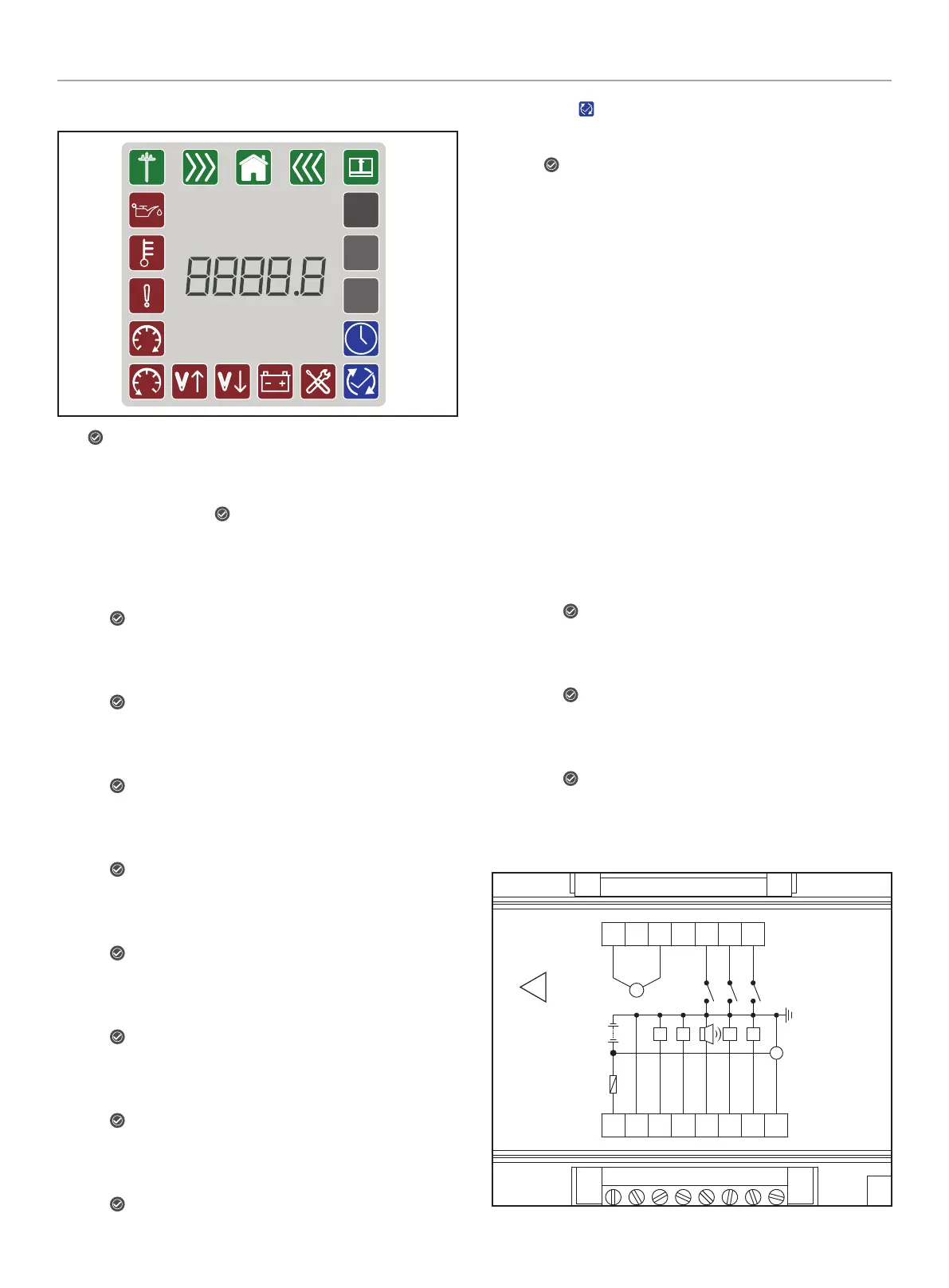

Programming aXis Controller™
1234567
WEEK
SEM
Y M D
A M J
Hm
Hm
DST
DST
OFF
ARRÊT
AUTO
MAN
Hold button for 3 seconds (decimal point will flash) to enter set
mode.
OTE: N Set values will be autosaved after 5 seconds of inactivity or
after pressing the button. Pressing the OFF button will
cancel any unsaved settings and return to the main menu.
1. Year (Y)
1a. Set year using the mode button
1b. for next
2. Month (M)
2a. Set month using the mode button
2b. for next
3. Day (D)
3a. Set day using the mode button
3b. for next
4. Week
4a. Set week using the mode button
4b. for next
5. Hour (H)
5a. Set hour using the mode button
5b. for next
6. Minute (m)
6a. Set minute using the mode button
6b. for next
7. Daylight Saving Time (DST)
7a. Set DST on or off using the mode button
7b. for next
8. Hours for maintenance reminder (H)
8a. Set hours for maintenance using the mode button
8b.
for next
9. Exercise
9a. Set exercise using mode button
9b. for next
9c. Exercise Schedule:
i. 0 - no exercise
ii. 1 – 1 time per month
iii. 2 – 2 times per month
iv. 3 – 4 times per month
v. 4 – weekly
9d. Week (exercise)
9e. Set week using mode button
i. 0 - Sunday
ii. 1 - Monday
iii. 2 - Tuesday
iv. 3 - Wednesday
v. 4 - Thursday
vi. 5 - Friday
vii. 6 - Saturday
viii. for next
9f. Hour (exercise)
i. Set hour using mode button
ii. for next
9g. Minute (exercise)
i. Set minute using mode button
ii. for next
PIN LOCATIONS
(On backside of the controller)
CRANKFQ2
I_AUX
I_LOP
I_HWT
FQ1
B-
ALARM
STOP
PREHEAT
FUEL
CHARGER
(D+)
B+
~
Rated Supply:
8~36 VDC (5A Max,)
(Terminal 13 and 15)
MAX WORKING
VOLTAGE
300 VAC
!
1
9151011
12
1314
8765432
ON
91108765432
