Champion DH2000 - Timer Chart

35

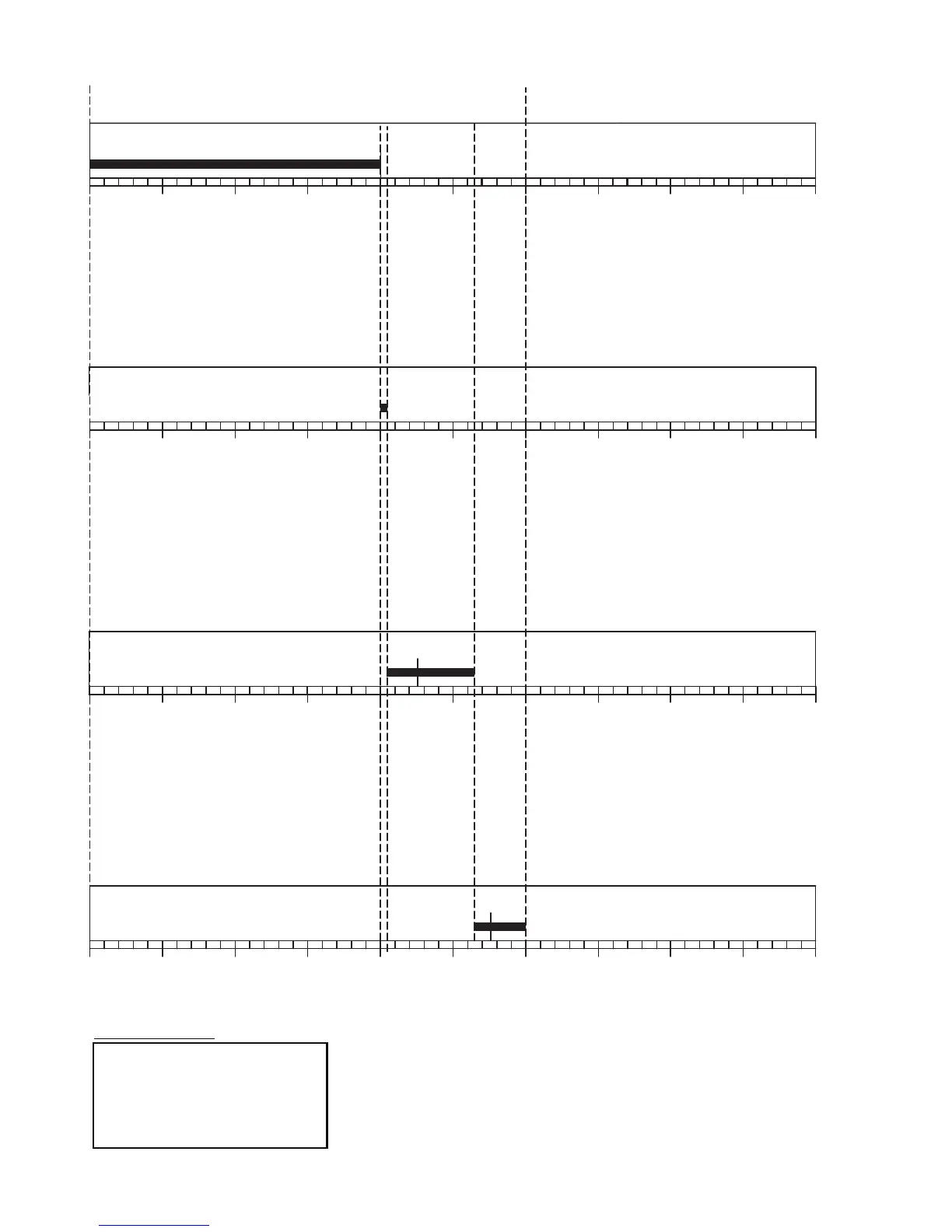

Timer Chart
TIME CYCLE - DH/MD2000
DWG. 114470-0/B
3/10/09 L.B.
6010020 4030 50 70 9080 100
10080 90705030 4020010 60
6010020 4030 50 70 9080 100
10080 90705030 4020010 60
7 SECONDS
12 SECONDS
1 SECOND
40 SECONDS
WASH
0
40
60 SECONDS TOTAL CYCLE
DWELL
RINSE
41
53
53
60
SANITARY DWELL
40
41
60 seconds cycle consisting of:
40 seconds Wash
1 second Dwell
12 seconds Rinse
7 seconds Sanitary Dwell
CYCLE STRUCTURE
