Champion Model 44 - Electrical Connections

5

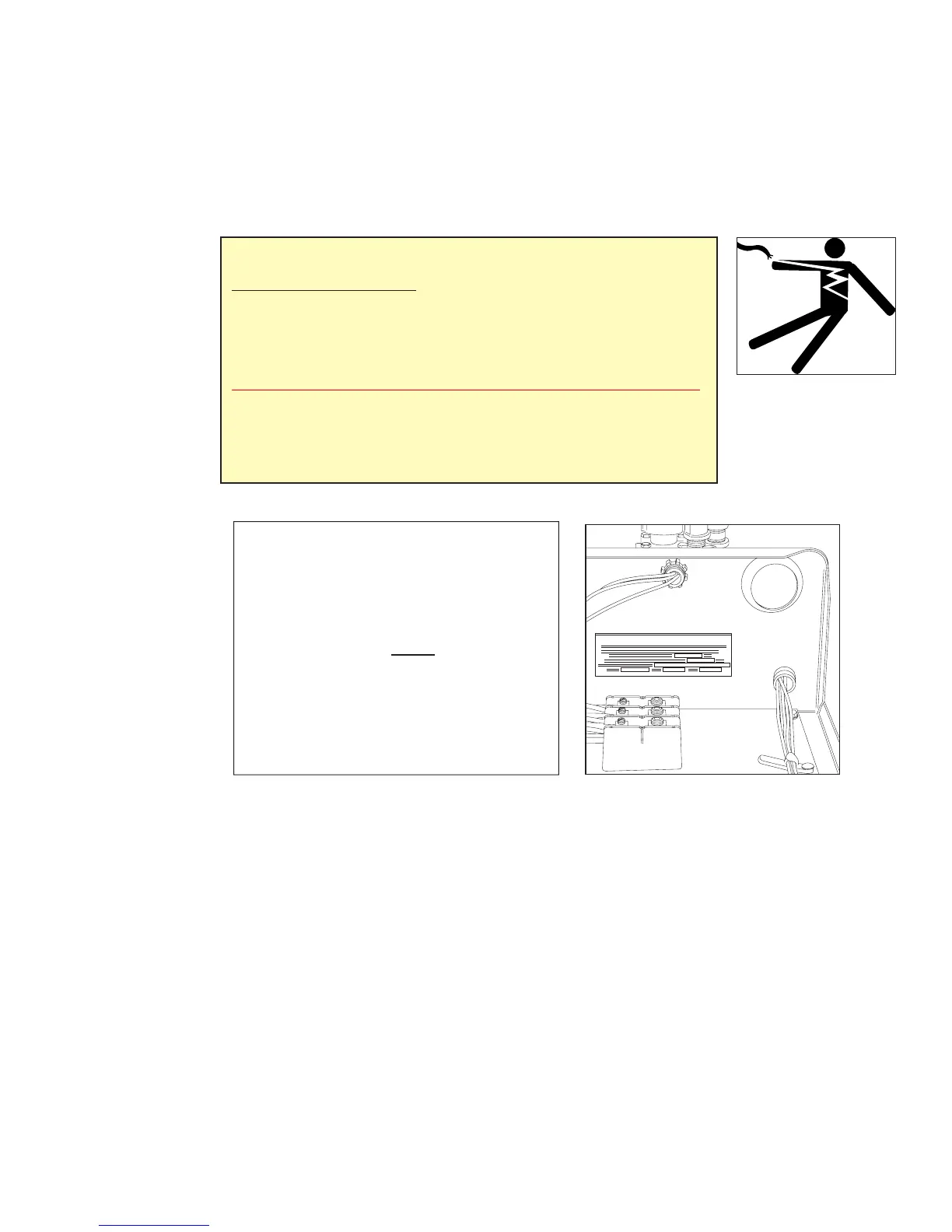

MACHINE ELECTRICAL CONNECTION
!!ATTENTION!!
Electrical and grounding connections
must comply with the
National Electrical Code and
Local Electrical Codes.
A qualied electrician MUST compare the
electrical power supply with the machine
electrical specications stamped on the
MACHINE ELECTRICAL
CONNECTION PLATE
located inside the control cabinet before
connecting the main power to the dishwasher.
1. The Main incoming power to the dishwasher is made at the top of machine in
the control cabinet.
2. The electrician must connect the incoming power based on the information
that is stamped on the Machine Electrical Connection Plate.
3. Any change to the Machine Electrical Connection Plate must be approved
by the factory in advance.
4. The dishwasher main power terminal block is located inside the top-mounted
control cabinet.
5. A knock-out plug is provided at the rear of the control cabinet for electrical
service connections.
6. Built-in electric booster heaters have a separate main power connection
except Models 44 WS and 66WS.
7. Electric blower-dryers have a separate main power connection.
Installation
Installation
Electrical Connections
WARNING !
ELECTRIC SHOCK may cause INJURY OR
DEATH.
THIS DISHWASHER MAY HAVE MULTIPLE
POWER SERVICE CONNECTIONS.
DO NOT WORK ON ANY ENERGIZED CIRCUIT.
Turn off all main power service disconnect switches.
Attach a label to the breaker indicating that work is being
done on the electric circuits.
